| Truck Brand: | Dongfeng Kingrun | Truck Volume: | 420 Cubic Feet |
|---|---|---|---|
| Tank Volume: | 12 Cubic Meter | Water Tank: | 280 Cubic Feet |
| Dust Tank: | 140 Cubic Feet | Drive Model: | 6 Wheels |
| No Of Sweeping Brush: | 2 Or None | ||
| High Light: | 12T Road Cleaning Truck,Dongfeng Road Cleaning Truck,Dongfeng Street Vacuum Truck |
||

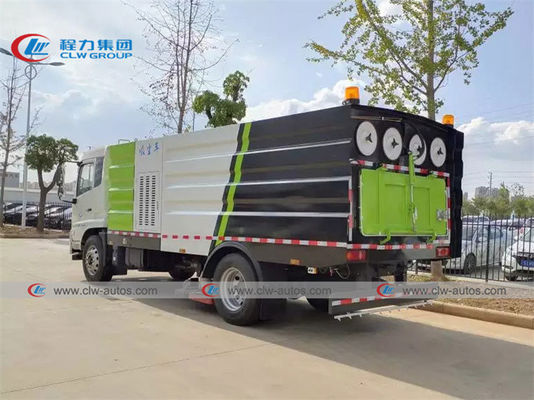

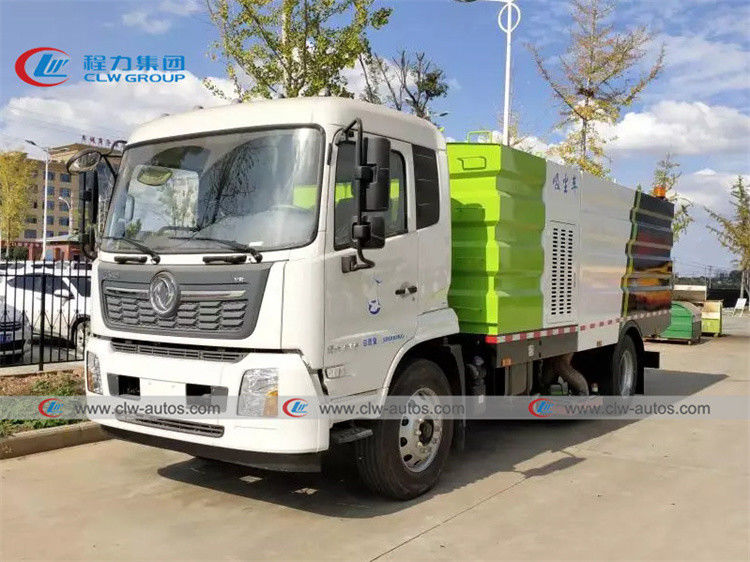

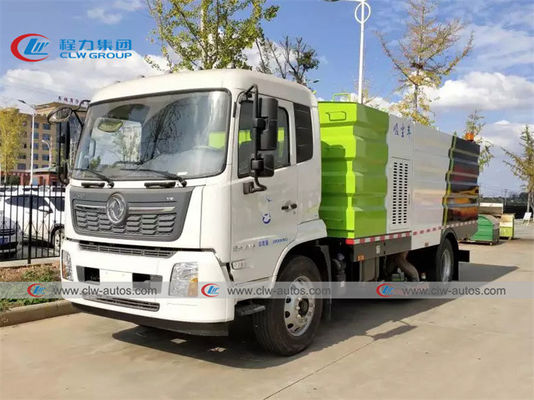

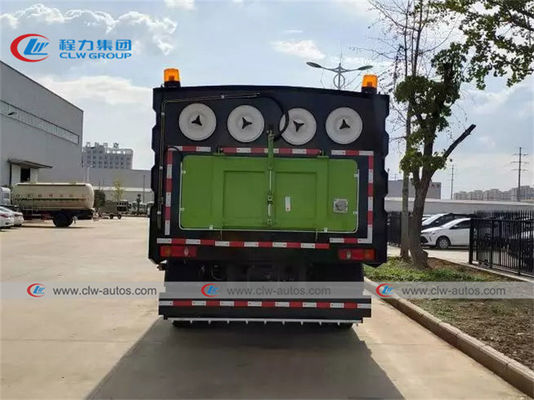

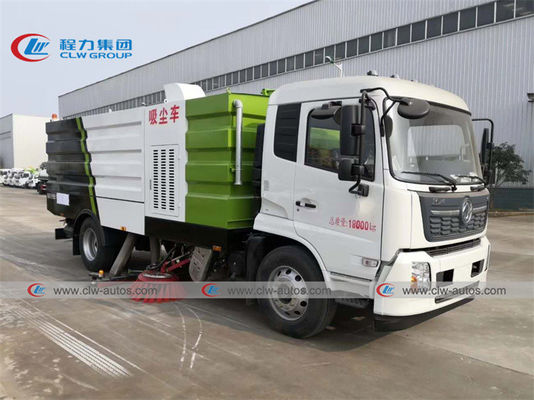

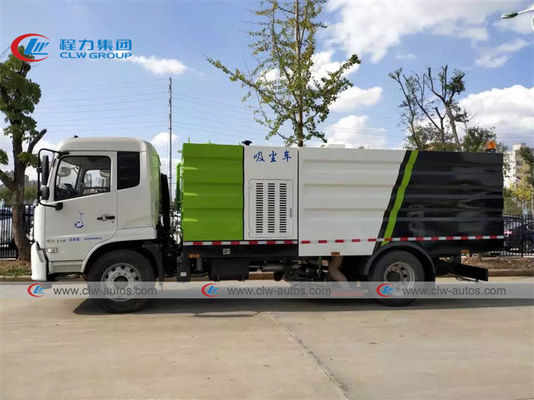

12Ton Dongfeng Vacuum Fan Dust Suction Sweeping Vehicle with Separated Suction Hoses
Product Description
You can communicate with Eric by whatsapp:+86 186 0715 8551
Specifications of 10Ton Vacuum Road Sweeper Truck
| Cabin |
Driving type 4x2 LHD OR RHD single row,with A/C ,with two seats,audio with USB, |
|||||||||||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8050×2490×3100 | ||||||||||
| Wheel base (mm) | 4700 | |||||||||||
| Wheel track (front/rear) (mm) | 1430/1920 | |||||||||||
| Approach/Departure angle(°) | 20/13 | |||||||||||
| Weight in KGS | Tare Weight | 11350 | ||||||||||
| payload | 4255 | |||||||||||
| Front axles loading capacity | 1x5600 | |||||||||||
| Rear axles loading capacity | 1x10200 | |||||||||||
| Max. driving speed(km/h) | 98 | |||||||||||
| Engine | Brand | cummins | ||||||||||
| Model | B190 33 | |||||||||||
| Horse Power(HP) | 190 | |||||||||||
| Emission standard | EuroIII | |||||||||||
| Gearbox | 5 forwards & 1 reverse | |||||||||||
| Steering | left or Right hand drive | |||||||||||
| Tire | 10R22.5,6 tires with one spare | |||||||||||
| Max. Cleaning Width | 3M | |||||||||||
| Sweeper Speed | 3~20 km/h | |||||||||||
| Max. Cleaning Capacity | 60000 m2/h | |||||||||||
| Max. Suction grain size | ≥110mm | |||||||||||
| Dumping angle | ≥45° | |||||||||||
| Hopper | 7000liters,double layer,Stainless steel inside | |||||||||||
| Water tank | 9000Liters | |||||||||||
| Auxiliary Engine | Model&Manufacturer | JIANGLING JX493ZQ | ||||||||||
| Type | Four-injection,water-cooling,turbo-charged,diesel engine | |||||||||||
| Power | 77hp/3600r/min | |||||||||||
| Max. Rotation Speed | 2400r/min | |||||||||||
| Oil type | 0# Diesel,share the same fuel box with chassis | |||||||||||
| Aerator | Type | High pressure centrifugal Aerator | ||||||||||
| Curb rotation speed | 2600-2900r/min | |||||||||||
| Driving model | Driven by auxiliary engine and transferred by transmission parts,clutch and belts | |||||||||||
| Hydraulic System | Type | electro-hydraulic Centralized Control | ||||||||||
| Main parts | Gear pump,gerotor motor,hyraulic oil cylinder,magnetic valve,manual pump | |||||||||||
| Overflow pressure | 14MPa | |||||||||||
| Hydraulic oil type | L-HV46(when temperature is 30℃-5℃) L-HM46(when temperature is 5℃-40℃) |
|||||||||||
| Hydraulic oil box | 70L | |||||||||||
| Water sprinkling | Main parts | Water pump,water filter,sprinkler,water box | ||||||||||
| Electrical system | Con-structure | Two batteries(in series) | ||||||||||
| Voltage | 24V | |||||||||||
| Battery model | 12-80A.H | |||||||||||
| Sweeping System | Type |
Fours brushes installed between front and rear axle,driven by gerotor motor. Left and right brushes are controlled to lift up and down separately. Rear brushes and suction nozzle are gang controlled for up and down. |
||||||||||
| Sweeper Diameter | 900mm | |||||||||||
| Sweeper rotation speed | 80r/min | |||||||||||
| Sweeper angle adjustment | Forerake 4°-6°and extroversion 2°-4° | |||||||||||
| Suction Nozzle | Type | U-shaped | ||||||||||
| Nozzle diameter | 200mm | |||||||||||
| Nozzle ground clearance when operation | 5-10mm | |||||||||||
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of sweeper trucks I can order from your company?
A: There are various sizes of sweeper trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
