Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Sinotruk HOWO, Dongfeng, Foton, Isuzu, Etc. | Drive Model: | Right Hand Drive & Left Hand Drive |
|---|---|---|---|
| Wheelbase: | 4300+1350 Mm | Engine Power: | 336HP |
| Tank Capacity: | 12cbm 12m3 12cubic Meter 12000liters 12t 10t | Tank Material: | 6mm Carbon Steel |
| Vacuum Pump: | Famous International Brand | Sewage Suction Pipe: | 8m |
| Suction Time: | No More Than 5mins | Effective Suction: | No Less Than 8m |
| Logo And Pattern: | As Customer's Request | Delivery Time: | 30 Working Days |
| Warranty: | 1 Year | ||
| High Light: | 12000L Vacuum Sewage Suction Truck,336HP Vacuum Sewage Suction Truck,Sinotruk HOWO Sewer Suction Truck |
||
1. Equipped with special vacuum pump,equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment,time for full sucktion<5min

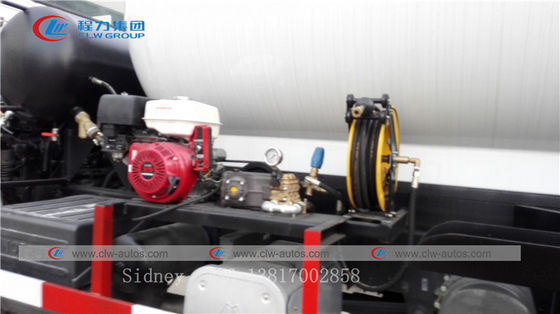

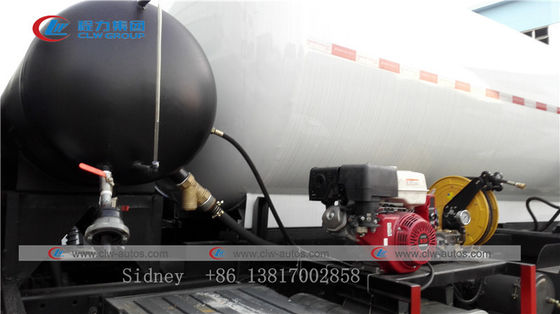

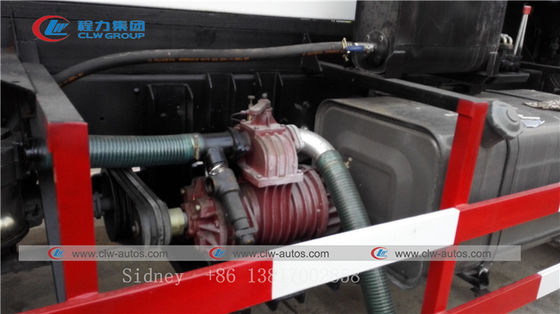

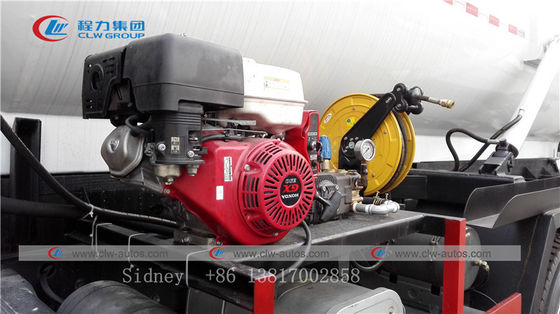

2. The sewage suction truck special section, taking the force transmission device by rotary vane pumps, vacuum pump ,(with domestic leading technology big suction) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.
3. The Sewage suction truck oblique liquid, can suck full alarm device after full automatic alarm, prevent sewage spills of vacuum pump caused damage,optional choose carbon steel, stainless steel, epoxy resin anticorrosive processing (rounded pot), may do anticorrosive processing, extracting partial chemical sewage and waste water.
Specifications:
| Vehicle Main Dimensions | (L x W x H)mm | 9120x2500x3600 | Parameter | |
| Wheel base (mm) | 4300+1350 | |||
| Wheel track (front/rear) (mm) | 2022/1830 | |||
| Approach/Departure angle(°) | 16/23 | |||
| Weight in KGS | Tare Weight | 12050 | ||
| Loading Capacity | 12950 | |||
| Front axles loading capacity | 1x7000 | |||
| Rear axles loading capacity | 2x16000 | |||
| Max. driving speed(km/h) | 90 | |||
| Engine | Brand | SINOTRUK | ||
| Model | WD615.69 | |||
| Horse Power(HP) | 336HP | |||
| Emission standard | Euro 2 | |||
| Gearbox | HW15710, 10 forwards & 2 reverse | |||
| Steering Gear | ZF8098,power steering, hydraulic steering with power assistance | |||
| Fuel tank (L) | 400 | |||
| Tire | 12.00 R20 all steel radial tire , 11 pieces | |||
| Brakes |
Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|||
| Tank Body | ||||
| Sewage body capacity | 12000Liters/12CBM | |||
| Tanker Body Material | 6mm steel / Q235 high tensile strength steel | |||
| End plate | 6mm steel sheet/Q235 high tensile strength steel | |||
| Discharging Pipe | 4"rubber hose, 2 pcs, 3m long | |||
| Rear cover | the rear cover can be on and off | |||
| Tanker Body | Tanker body can be lifted by hydraulic system | |||

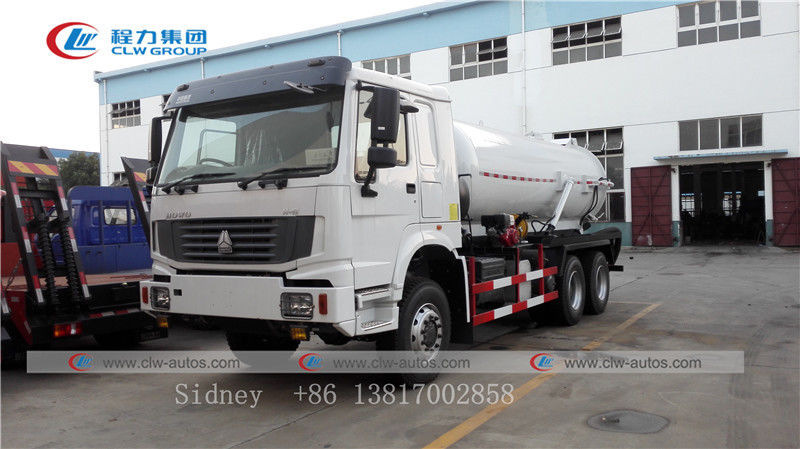

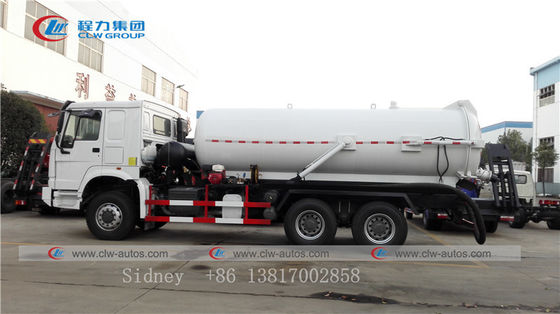

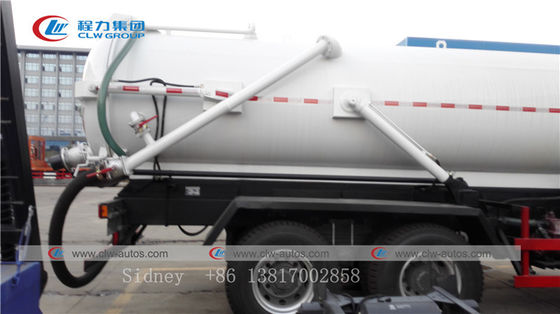

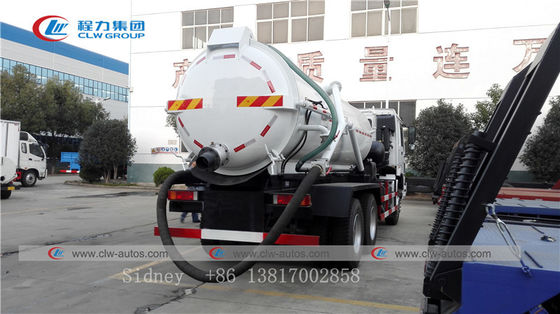

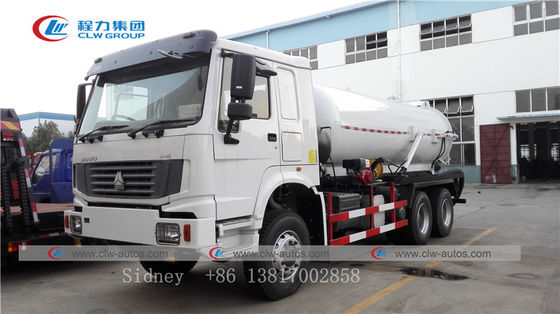

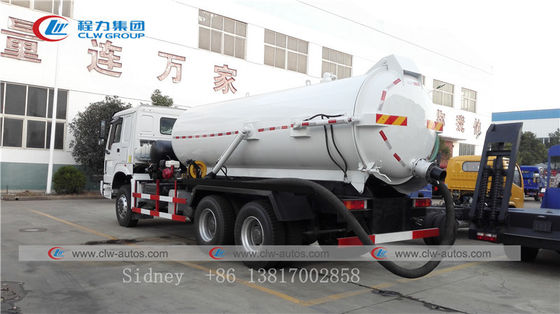

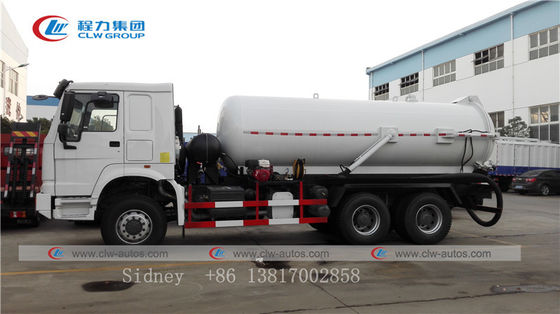

Reference Photos
Structure Diagram
Working Scene
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Sewage Suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
