Heavy Duty Dongfeng Tianlong 6x4 16cbm High Pressure Jetting Sewer Cleaning Vacuum Sewage Suction Trucks
Product Description
Sewage suction truck is mainly used to clean septic tank, sewage ditch and sewer,and etc.
The sewage suction vehicle is a new type of sanitation vehicle which collects and transfers sludge and sewage to avoid secondary pollution. The sewage suction vehicle has 16cbm loading capacity, self-suction & self-discharge function,fast working speed,convenient transportation. It is suitable for collecting and transporting feces,mud,crude oil and other liquid substances. The suction vehicle adopts the domestic technology leading suction vehicle vacuum pump, which has and far suction range, especially suitable for sucking and transporting silt in the sewer, stons, brick and other large objects in water channel.
Application: Our sewage suction truck is ideal for sewer and toilet cleaning. With optional high pressure water jetting, it can easily unclog tunnels and pipes. The powerful vacuum pump can deal with all types of heavy slurries and muds.
Chassis Brand: Dongfeng/DFAC, Foton, HOWO, other chassis available.
Features: 1. strong vacuum pump for faster sewage suction speed
2. high pressure water jetting helps clearing obstacles (optional)
3. self-dumping tank with openable rear door to discharge sewage efficiently
4. ultra-long suction pipe available to further extend working area
Tank Size: 12000-16000L.
Tank Material: Q235 stainless steel
Inspection: All tanks are tested by air, water, X-ray and with fire firing before shipment.
Main Market: our sewage suction truck are widely sold in Africa, N. & S. America, Middle East and Asian countries.
Product Specification
| Technical Parameters |
| Overall |
| Vehicle name |
6*4 LHD 16CBM Sewage Suction Truck |
| Vehicle model |
CLWZZ1257SST16 |
| Overall dimensions |
Approximate 9400×2500×3700mm |
| GVW |
25000kg |
| Total net weight |
Approximate 13000kgs |
| Loading capacity |
Approximate 12000kgs |
| Max speed |
102Km/h |
| Chassis |
| Chassis brand/ model |
SINOTRUK HOWO / ZZ1257M4341W |
| Chassis net weight |
9140kg |
| Chassis dimension |
9120*2496*2958mm |
| Wheelbase |
4325+1350mm |
| F/R axle |
HF7 axle/ST16 double axles |
| F/R track base |
2022/1830mm |
| F/R suspension |
1500/1945mm |
| Approach/departure angle |
16/23° |
| Springs |
10/12,4/12 |
| Tire specification |
12R22.5;10+1pcs |
| Transmission |
HOWO; HW13710;Manual |
| Traction system |
6*4 |
| Engine |
| Engine brand/model |
SINOTRUK / WD615.69 |
| Power/Exhaust |
336 hp/9726ml; EURO 2 |
| Engine type |
6 straight cylinders;water-cooled, four-stroke, supercharged, intercooled, direct injection |
| Upper Part |
| Dustbin capacity |
16CBM |
| Tank size(length × diameter) |
5500×2000mm |
| Tank material |
6mm carbon steel |
| Vertical suction range |
9m |
| Pumping/Discharging full tank time |
<10min/<8min |
| Other configuration |
With visual dung window;One self-flow mouth; With hand washing device;With anti-overflow valve; One 8m suction pipe; Vacuum pump;With water-gas&oil-gas separator, anti-overflow valve;With self-unloading function;Back door hydraulic open;The sewage tank with 3 hoops. |

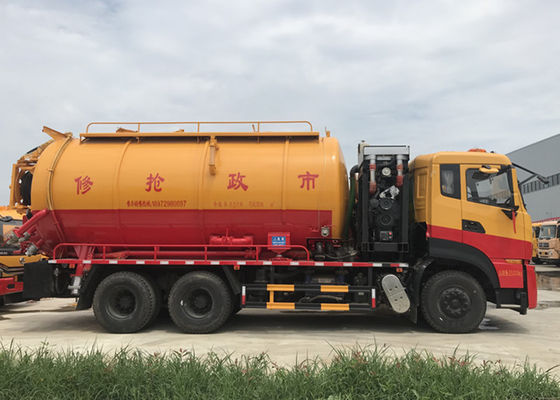

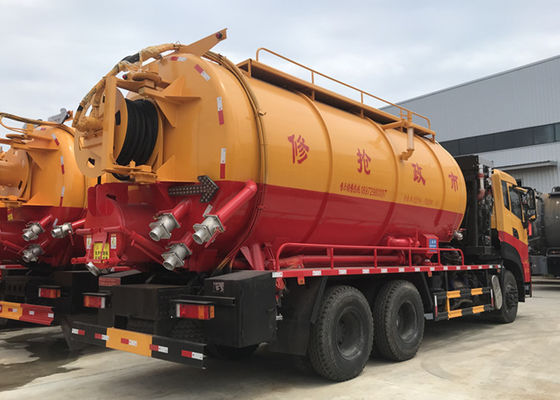

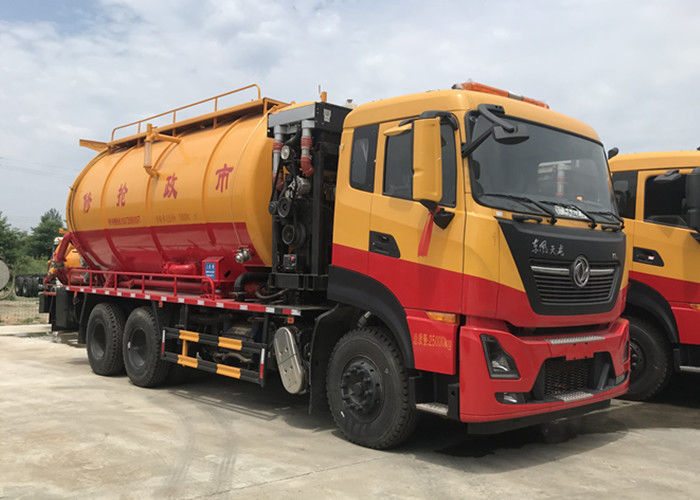

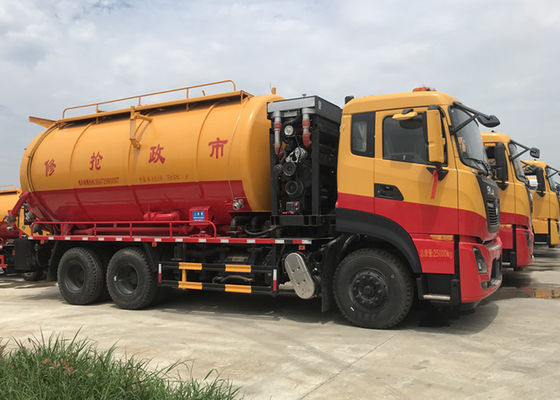

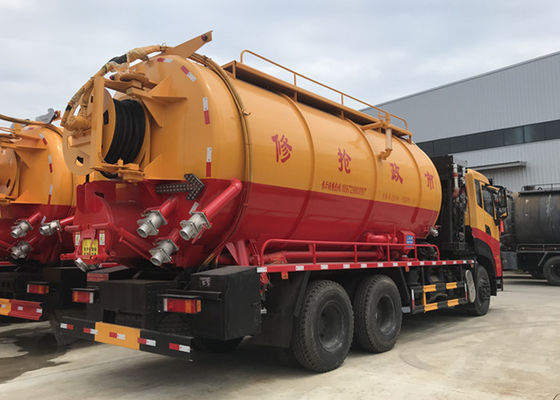

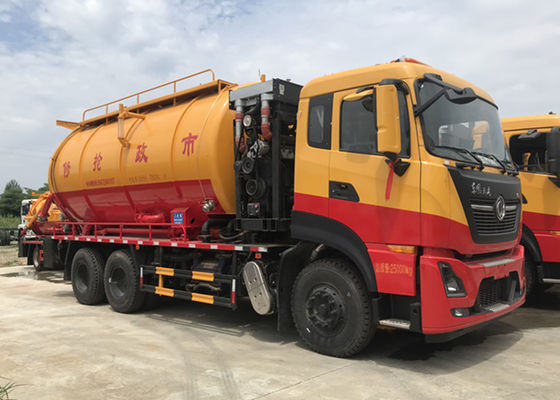

More Pictures for Reference:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A.Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q:Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
