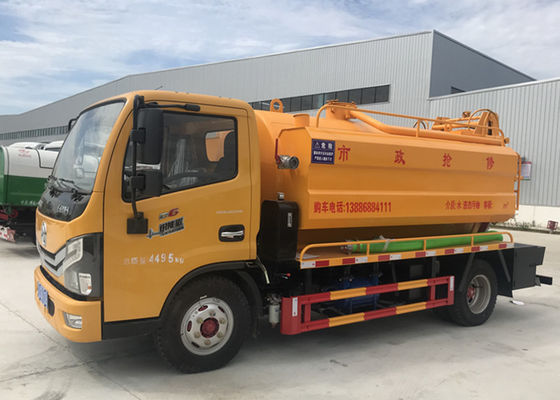

RHD 5m3 Vacuum Sewage Suction Truck With Jurop Vacuum Pump

RHD 5m3 Vacuum Sewage Suction Truck With Jurop Vacuum Pump
RHD 5m3 Vacuum Sewage Suction Truck With Jurop Vacuum Pump RHD 5m3 Vacuum Sewage Suction Truck With Jurop Vacuum Pump RHD 5m3 Vacuum Sewage Suction Truck With Jurop Vacuum Pump RHD 5m3 Vacuum Sewage Suction Truck With Jurop Vacuum Pump RHD 5m3 Vacuum Sewage Suction Truck With Jurop Vacuum Pump RHD 5m3 Vacuum Sewage Suction Truck With Jurop Vacuum Pump

Large Image :  RHD 5m3 Vacuum Sewage Suction Truck With Jurop Vacuum Pump

Product Details:

Place of Origin: SUIZHOU, HUBEI
Brand Name: CLW
Certification: CCC, ISO9001
Model Number: CLW20210623

Payment & Shipping Terms:

Minimum Order Quantity: 1 units
Price: Negotiated
Packaging Details: Naked or Waxed before delivery
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per Month
Detailed Product Description
Engine: Dongfeng Cummins Diesel Engine Drive Type: 4x2, 6 Wheels, 6 Wheeler
Transmission: Manual Control, Drive Model: Right Hand Drive, Or Left Hand Drive
Tank: Rear Tipping Tank Material: Carbon Steel, Or Stainless Steel
Equipment: Italy Or Chinese Vacuum Suction Pump Loading Capacity: 5tons, 5 Tons, 5MT, 5T
Tank Volume: 5CBM, 5000L, 5000 Liters, 5M3 Suction: Above 6 Meters
High Light:

5m3 Vacuum Sewage Suction Truck

,

RHD Vacuum Sewage Suction Truck

,

Jurop Vacuum Pump Sewer Cleaning Truck

Jurop Vacuum Pump 2000L Water Tank and 3000L Fecal Tank Vacuum Suction Sewage Truck Sewer Cleaning Truck



Product Description

Sewage suction truck is mainly used to clean septic tank, sewage ditch and sewer,and etc.

The sewage suction vehicle is a new type of sanitation vehicle which collects and transfers sludge and sewage to avoid secondary pollution. The sewage suction vehicle has 16cbm loading capacity, self-suction & self-discharge function,fast working speed,convenient transportation. It is suitable for collecting and transporting feces,mud,crude oil and other liquid substances. The suction vehicle adopts the domestic technology leading suction vehicle vacuum pump, which has and far suction range, especially suitable for sucking and transporting silt in the sewer, stons, brick and other large objects in water channel.



Application: Our sewage suction truck is ideal for sewer and toilet cleaning. With optional high pressure water jetting, it can easily unclog tunnels and pipes. The powerful vacuum pump can deal with all types of heavy slurries and muds.



Chassis Brand: Dongfeng/DFAC, Foton, HOWO, other chassis available.



Features:

1. strong vacuum pump for faster sewage suction speed

2. high pressure water jetting helps clearing obstacles (optional)

3. self-dumping tank with openable rear door to discharge sewage efficiently

4. ultra-long suction pipe available to further extend working area



Tank Size: 5000-8000L.

Tank Material: Q235 stainless steel



Inspection: All tanks are tested by air, water, X-ray and with fire firing before shipment.



Main Market: our sewage suction truck are widely sold in Africa, N. & S. America, Middle East and Asian countries.



Product Specification

Main Technical Data
General Specification
Product name
Dongfeng 5CBM Vacuum Sewage Suction Truck
Gross weight
9000 kg
Rated payload
5000 kg
Curb weight
4805 kg
Dimension

6000X2300X2600mm

Tank volume
5CBM
Wheelbase
3800 mm
Axle number
2
Axle load

6500/11495

Chassis Specification
Tire number
6
Approach/Departure angle(°)
19/11
Tire speicifcation
10.00R20
Engine

YC4EG185-50 Euro 5

Power
132 kw (180hp)
Displacement
4730 ml
Emission standard
Euro 3 Euro 4 Euro 5
Sewage Suction Specification
Type
Vacuum pump
Full tank time
<5 mins
Empty tank
<4 mins
Vertical suction depth
8 m
Working pressure
8500Pa
Theoretical pup flow
120 L/S
Inlet and outlet Diameter
50 mm
Drainage pipe length
5m
Tank capacity
10.5 CBM
Tank size

5100×2300×1500

Tank material
6mm high carbon steel

The sewage suction truck is refited with cylindrical shape tank, made of 6mm thick high quality steel plate. At the front, it is equipped with suction view window, hand washing device, 5 meters of suction pipe. With the high power vocuum suction pump and high quality hydraulic system, the tank rear cover can be opened and discharging easily. The dirt in the tank can be dumped directly through the back cover, which has the characteristics of high vacuum degree, large tonnage, high efficiency and wider use. (vertical suction range: ≥ 8m, working pressure: 8500Pa, theoretical pumping speed: 120L/S, shaft power: ≤13kw, inlet and exhaust caliber: 50mm, pumping time: < 5min, discharging time: < 4min.

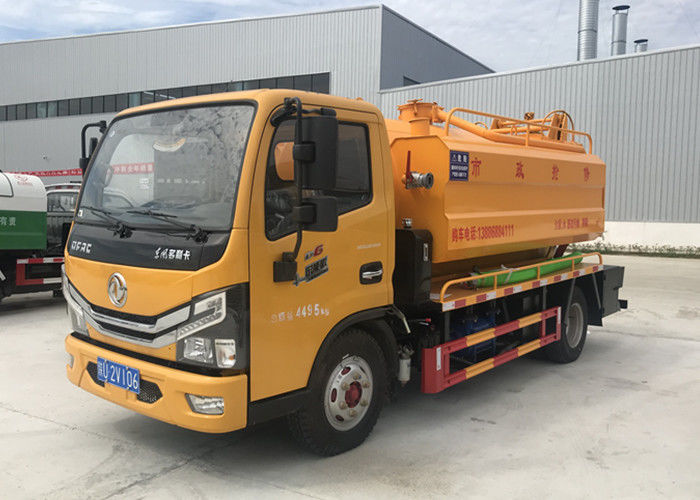

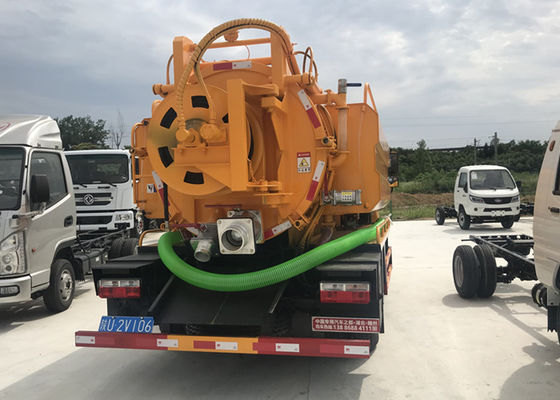

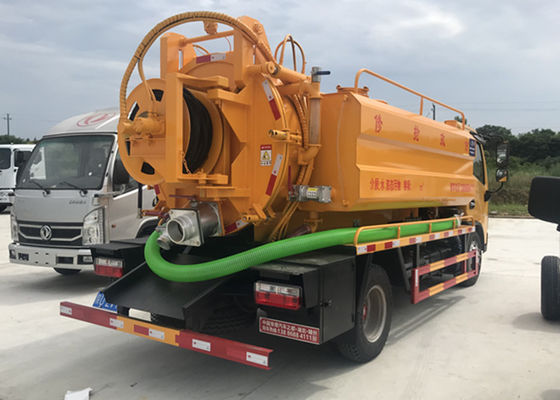

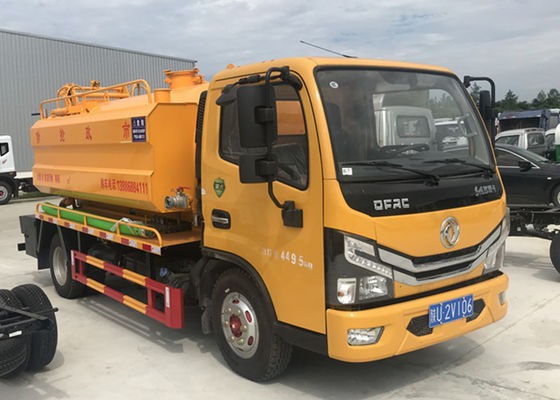

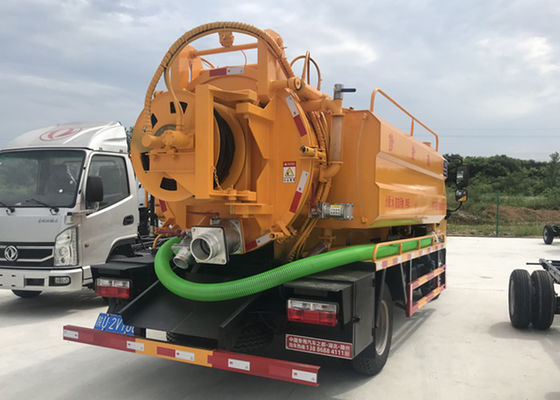

More Pictures for Reference:



RHD 5m3 Vacuum Sewage Suction Truck With Jurop Vacuum Pump 0RHD 5m3 Vacuum Sewage Suction Truck With Jurop Vacuum Pump 1RHD 5m3 Vacuum Sewage Suction Truck With Jurop Vacuum Pump 2RHD 5m3 Vacuum Sewage Suction Truck With Jurop Vacuum Pump 3



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



FAQ



Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
