HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsVacuum Suction Truck

RHD FOTON HOWO JAC 4x2 12 Tons Vacuum Sewage Suction Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

RHD FOTON HOWO JAC 4x2 12 Tons Vacuum Sewage Suction Truck

RHD FOTON HOWO JAC 4x2 12 Tons Vacuum Sewage Suction Truck
RHD FOTON HOWO JAC 4x2 12 Tons Vacuum Sewage Suction Truck RHD FOTON HOWO JAC 4x2 12 Tons Vacuum Sewage Suction Truck RHD FOTON HOWO JAC 4x2 12 Tons Vacuum Sewage Suction Truck RHD FOTON HOWO JAC 4x2 12 Tons Vacuum Sewage Suction Truck RHD FOTON HOWO JAC 4x2 12 Tons Vacuum Sewage Suction Truck RHD FOTON HOWO JAC 4x2 12 Tons Vacuum Sewage Suction Truck

Large Image :  RHD FOTON HOWO JAC 4x2 12 Tons Vacuum Sewage Suction Truck

Product Details:

Place of Origin: SUIZHOU, HUBEI
Brand Name: CLW
Certification: CCC, ISO9001
Model Number: CLW20210625

Payment & Shipping Terms:

Minimum Order Quantity: 1 units
Price: Negotiated
Packaging Details: Naked or Waxed before delivery
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per Month
Detailed Product Description
Engine: FOTON Cummins Diesel Engine Drive Type: 4x2, 6 Wheels, 6 Wheeler
Transmission: Manual Control, Drive Model: Right Hand Drive, Or Left Hand Drive
Tank: Rear Tipping Tank Material: Carbon Steel, Or Stainless Steel
Equipment: Italy Or Chinese Vacuum Suction Pump Loading Capacity: 10 Tons, 12 Tons, 10T, 12T, 10tons 12tons
Tank Volume: 3m3, 4m3, 5m3, 6m3, 8m3, 10m3, 12m3, Etc. Suction: >8 Meters
Chassis Brand: Dongfeng, Isuzu, Foton, JAC, Etc. Suction Time: <5min
Sewage Suction Pipe: 8m
High Light:

JAC Vacuum Sewage Suction Truck

,

Vacuum Sewage Suction Truck

,

RHD Sewage Cleaning Truck

RHD FOTON/HOWO/JAC 4x2 12 tons Vacuum Sewage/Sludge Cleaning Suction Truck



Product Description

Sewage suction truck is mainly used to clean septic tank, sewage ditch and sewer,and etc.

The sewage suction vehicle is a new type of sanitation vehicle which collects and transfers sludge and sewage to avoid secondary pollution. The sewage suction vehicle has 16cbm loading capacity, self-suction & self-discharge function,fast working speed,convenient transportation. It is suitable for collecting and transporting feces,mud,crude oil and other liquid substances. The suction vehicle adopts the domestic technology leading suction vehicle vacuum pump, which has and far suction range, especially suitable for sucking and transporting silt in the sewer, stons, brick and other large objects in water channel.



Application: Our sewage suction truck is ideal for sewer and toilet cleaning. With optional high pressure water jetting, it can easily unclog tunnels and pipes. The powerful vacuum pump can deal with all types of heavy slurries and muds.



Chassis Brand: Dongfeng/DFAC, Foton, HOWO, other chassis available.



Features:

1. strong vacuum pump for faster sewage suction speed

2. high pressure water jetting helps clearing obstacles (optional)

3. self-dumping tank with openable rear door to discharge sewage efficiently

4. ultra-long suction pipe available to further extend working area



Tank Size: 5000-8000L.

Tank Material: Q235 stainless steel



Inspection: All tanks are tested by air, water, X-ray and with fire firing before shipment.



Main Market: our sewage suction truck are widely sold in Africa, N. & S. America, Middle East and Asian countries.



Product Specification

Cabin Driving type 4x2, single row
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 7500*2300*2850
Wheel base (mm) 4500
Wheel track (front/rear) (mm) 1960/1860
Approach/Departure angle(°) 28/32
Weight in KGS Tare Weight 5340
payload 6025
Front axles loading capacity 2700
Rear axles loading capacity 5000
Max. driving speed(km/h) 95
Engine Brand Cummins
Horse Power(HP) 180HP
Emission standard Euro V
Gearbox 6 forwards & 1 reverse
Steering Left hand drive
Tire 9.00R20, 6 tires with one spare
Sewage Tank
Tank volume 12000Liters, 8000lLiters sewage tanker, 4000Liters water tanker
Tank material 6mm carbon steel Q235
Tank size 4900x1600mm
Vacuum Pump Chinese Vacuum Pump or Italy Vacuum Pump
Sewage suction pipe 8M
Main Performance Suction time ≤ 5min,
effective suction range ≥ 8m
Other equipment Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve
Painting Customized painting color and logo as required.

The sewage suction truck is refited with cylindrical shape tank, made of 6mm thick high quality steel plate. At the front, it is equipped with suction view window, hand washing device, 5 meters of suction pipe. With the high power vocuum suction pump and high quality hydraulic system, the tank rear cover can be opened and discharging easily. The dirt in the tank can be dumped directly through the back cover, which has the characteristics of high vacuum degree, large tonnage, high efficiency and wider use. (vertical suction range: ≥ 8m, working pressure: 8500Pa, theoretical pumping speed: 120L/S, shaft power: ≤13kw, inlet and exhaust caliber: 50mm, pumping time: < 5min, discharging time: < 4min.

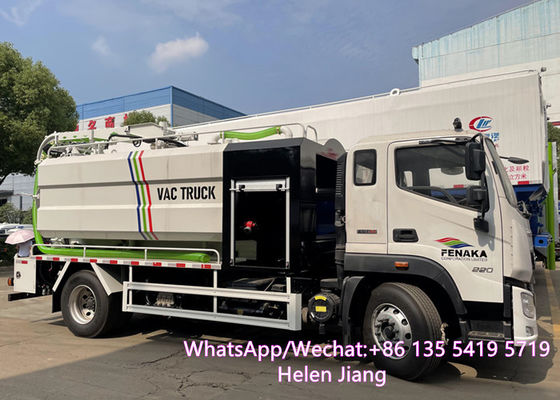

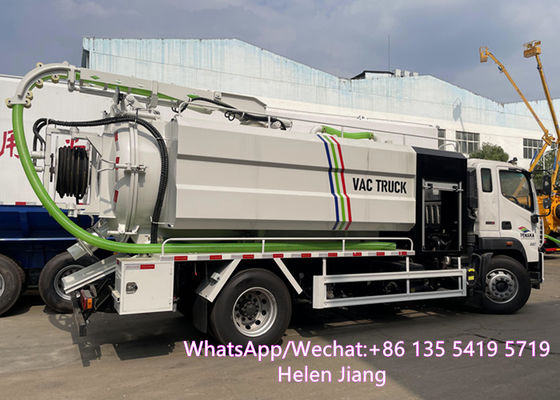

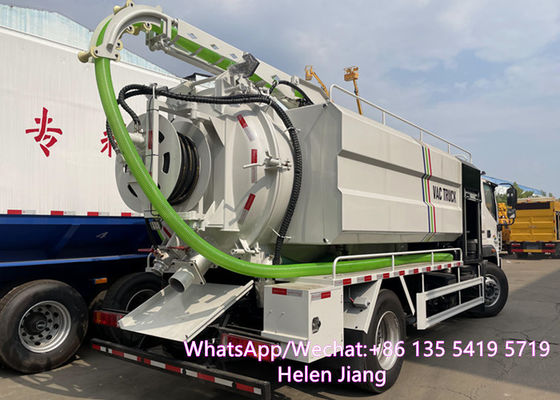

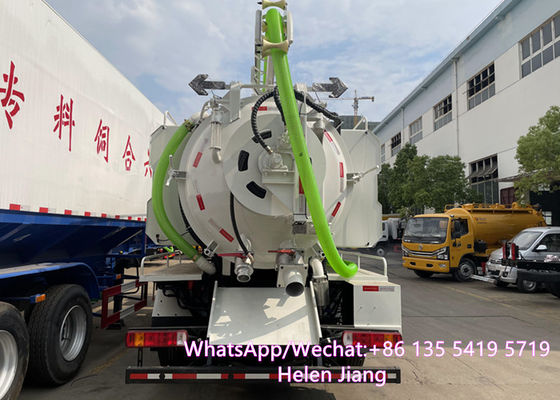

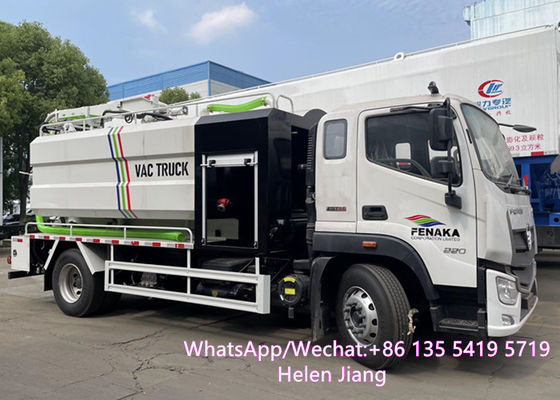

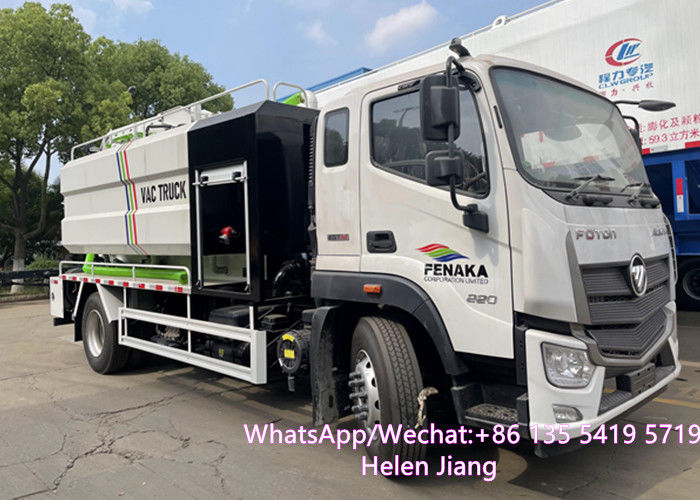

More Pictures for Reference:



RHD FOTON HOWO JAC 4x2 12 Tons Vacuum Sewage Suction Truck 0RHD FOTON HOWO JAC 4x2 12 Tons Vacuum Sewage Suction Truck 1RHD FOTON HOWO JAC 4x2 12 Tons Vacuum Sewage Suction Truck 2RHD FOTON HOWO JAC 4x2 12 Tons Vacuum Sewage Suction Truck 3RHD FOTON HOWO JAC 4x2 12 Tons Vacuum Sewage Suction Truck 4



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



FAQ



Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
