Congo 5000L LPG Cylinder Refueling Bobtail Tanker Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Congo 5000L LPG Cylinder Refueling Bobtail Tanker Truck

Congo 5000L LPG Cylinder Refueling Bobtail Tanker Truck
Congo 5000L LPG Cylinder Refueling Bobtail Tanker Truck Congo 5000L LPG Cylinder Refueling Bobtail Tanker Truck Congo 5000L LPG Cylinder Refueling Bobtail Tanker Truck Congo 5000L LPG Cylinder Refueling Bobtail Tanker Truck Congo 5000L LPG Cylinder Refueling Bobtail Tanker Truck Congo 5000L LPG Cylinder Refueling Bobtail Tanker Truck

Large Image :  Congo 5000L LPG Cylinder Refueling Bobtail Tanker Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC ISO ASME
Model Number: CLW5086XXCB

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 14250-48620USD/UNIT
Packaging Details: Naked package shipped by bulk ship
Delivery Time: 30 days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Truck Brand: ISUZU,HOWO,DONGFENG,FAW,SHACMANlpg Bobtail Truck Material: Q345R Lpg Bobtail Truck
Tank Size: 5000L 5000Liters 10000Liters Lpg Bobtail Truck Loading Weight: 2tons/2mt/2.5tons/2.5mt Lpg Truck
Engine: Diesel Engine Lpg Truck Horsepower: 116hp 140hp 160hp Lpg Truck
Purpose: Skid Station Refilling,cylinder Filling Lpg Truck Design Pressure: 1.61Mpa 16.1Bar Lpg Bobtail Truck
Drive Wheel: 4x2, 6x4, 8x4, 4X2 6X4 8X4 6X2 4X4 6X6, 4*2.4*4.6*2.6*4.6*6.8*4.8*6.8*8 Storage: LPG, Oil, Water, Lpg Propane Pentane, Gas
Emmission: Euro2/3/4/5, Euro III/Euro IV/ EuroV Lpg Bobtail Truck Name: Lpg Tank Truck, LPG TANK TRUCK GAS FILLING TRUCK / Lpg Cylinder Filling Truck, Gas Refuel Truck
Country: Lpg Bobtail Truck For Zimbabwe,lpg Bobtail Truck For Kenya,lpg Bobtail Truck For Zambia
High Light:

LPG Cylinder Refueling Bobtail Tanker Truck

,

5000L Bobtail Tanker Truck

,

Congo LPG Bobtail Truck

Congo 5000L LPG Gaz Distribution Truck 2 Tons Propane Gas Cylinder Refueling Tanker




LPG bobtail truck(also called lpg refueler truck, lpg bobtails,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck,propane delivery truck,propane bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.

With different design,you can choose volume flow meter or lpg dispenser for your truck. propane truck is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.

1) Truck Brand optional for propane truck :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.

2) Tank Size of propane truck : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L lpg bobtails

3) Function of propane truck: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

4) Refiling System of propane truck : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box

5) Truck Spec of propane truck : Yuchai Engine 116hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 7.00R16 Tires or 7.50R16 tires.

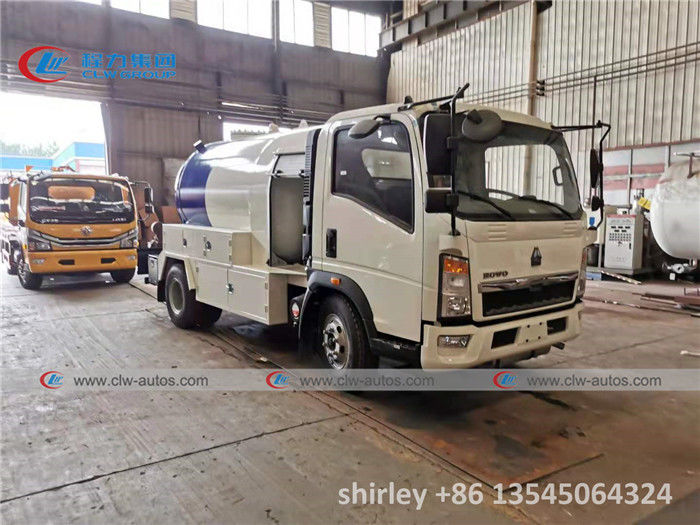

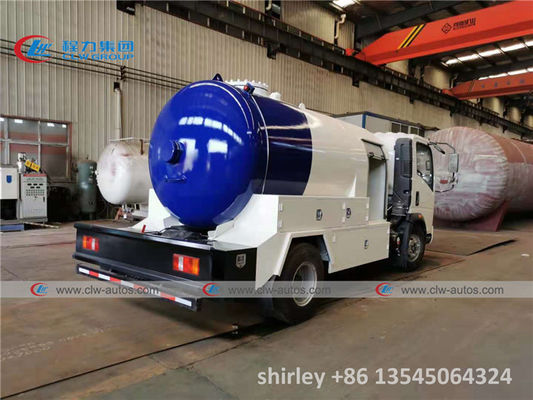

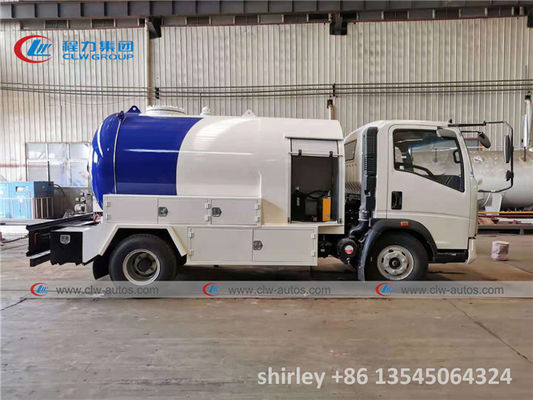

Reference pictures of gaz distribution for DRC

Congo 5000L LPG Cylinder Refueling Bobtail Tanker Truck 0Congo 5000L LPG Cylinder Refueling Bobtail Tanker Truck 1Congo 5000L LPG Cylinder Refueling Bobtail Tanker Truck 2Congo 5000L LPG Cylinder Refueling Bobtail Tanker Truck 3



Specification of 5000liters gaz distribution truck for congo

  Parameters
Overall Dimension 5900x2400x2650mm
Driving Model Left hand drive for Nigerian market
Gross Vehicle Weight 8160 kg
Curb Weight 5850kg
Payload 2310 kg
Wheel Base 3360 mm
Front Axle 2400kg
Rear Axle 4200kg
Engine YN4102QBZL,Diesel engine
Engine horsepower 116HP EUROIII
Displacement 3760mL (Diesel)
Rated Rotation Speed 3000 rpm
Gearbox WLY6T46,6-speed forward and 1 reverse
Cabin Howo L2W 2080 spacious cabin,2~3 Passenger allowed,with A/C
Tire 7.50R16 (6 pcs with one spare)
Exhaust Pipe At front of Cabin for safety
LPG tank
Volume: 5000iters
Tank material: Q345R
Tank diameter: 1600mm
Tank thickness: 10mm
End plate thickness: 10mm
Tank length: 3070mm or as designed
Gas phase Flange type,DN50/2” or according to customer request
Liquid Phase Flange type,DN50/2” and DNDN80/3” or according to customer request
Filling gas Propane(LPG)
Design Pressure: 1.61Mpa
Testing pressure 2.21Mpa
Refilling Accessory
LPG Pump Chinese brand YQ15-5
Flow rate:15.5M3/H
10 Mpa inlet pressure

780 r/min for rotation speed

Radiator

1 pc(to avoid high temperature of hydraulic oil during operation)

Hydraulic motor 1 pc

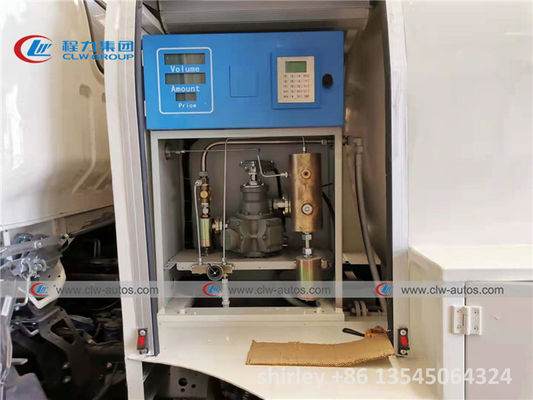

LPG Dispenser

English remarks with printer for receipt

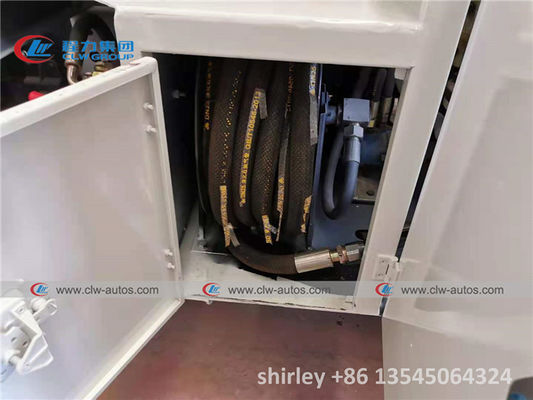

Filling hose 15M,retractable
Filling nozzle Filling nozzle for cylinder
Level Gauge

Chinese Float Ball type,at the rear of tank

Safety Valve 1,DN80

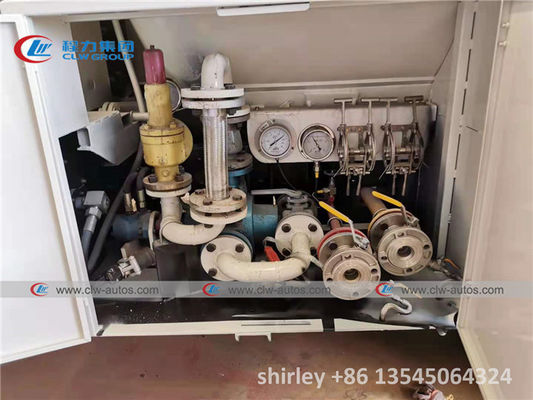

Tool and Valve Box Located at side of LPG bobtail
Thermometer 1 pc
Pressure Gauge 2 pc
Emergency shut off Valve 3 pcs with witch inside valve box and at rear of truck
Fender Steel
Fire Extinguisher Holder 2 sets
Anti Static line 1 set



Why do you choose us for lpg gaz distribution truck?

Located in Suizhou city,hubei province, central China, the Hubei Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special purpose trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck,Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck,Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks, LED Advertising Trucks, RV/Camper Trucks, Food Truck/Vender Truck and all kinds of special Trailer applied in sanitation,construction, transportation, chemical, oil and gas, emergency rescue and so on.



With leapfrog development in 16 years since 2004, now Hubei Chengli Special Automobile Co., Ltd has owned more than 70 professional workshops for different vehicles and 2 technical centers, more than 12,600 staffs, in which more than 800 are R&D persons and more than 5000 are technical workers..


CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

  • Certificate: ASME, ISO, BV, SGS, CCC etc.
  • more than independents workshops.
  • 1000 sets of equipment, 25 assemble lines.
  • 300 senior engineers and technicians. About 8000 workers.
  • 800kinds of LPG, trucks and semi-trailers.
  • 20 years wholesale experience
  • Turnover 250 million and Export 20million annually
  • Turnover 2 billion trucks and semi-trailers annually.
  • Trucks Sold to more than 90 countries
  • Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC



After sales service

Before purchasing:

1- Quick reply on customers' inquiry;

2- Professional suggestion on truck choice according to different countries.

3- Details quotation with spec.and reasonable price.

4- Welcome to visit our company before purchasing.



After purchasing:

1- Production pictures and video updated every week.

2- Customer can visit factory after truck completion or arrange third party inspection.



After-sales service:

1- English Operation Video

2- Free operation and technical train at factory but not include accommodation

3- Spare parts supplied at factory price whenever needed.

4- Engineers can be sent to your country and offer local engineering support and train.





FAQ



Q1: What kinds of propane truck I can order from your company?

A: We can supply propane truck from 5000Liters to 35000liters. Pls contact with us for more technical details discussion.



Q2: What is your production standard of propane truck? Whether your propane truck exported to others countries?

A: propane truck is produced strictly according to GB150.1~4,we supplied lpg bobtail to AA RANO,Hass Petroluem,NIPCO and so on.



Q3: What's the difference between your company and other chinese supplier?

A: As the top manufacturer of lpg trucks and products for more than 15 years,our sales are more professional and they will offer you suggestion. And we took part in lpg summit in Africa and Asia every year.



Congo 5000L LPG Cylinder Refueling Bobtail Tanker Truck 4
