Product Details:
Payment & Shipping Terms:
|
Truck Brand: | ISUZU,HOWO,DONGFENG,FAW,SHACMAN LPG Bobtail Trucks | Material: | Q345R LPG Bobtail Trucks |
---|---|---|---|
Tank Size: | 200000L 24000L 20000Liters 24000Liters LPG Bobtail Trucks | Loading Weight: | 10tons/10mt/12tons/12mt LPG Bobtail Trucks |
Engine: | Diesel Engine LPG Bobtail Trucks | Horsepower: | 290hp 336hp LPG Bobtail Trucks |
Purpose: | Skid Station Refilling,cylinder Filling LPG Bobtail Trucks | Design Pressure: | 1.61Mpa 16.1Bar LPG Bobtail Trucks |
Drive Wheel: | 4x2, 6x4, 8x4, 4X2 6X4 8X4 6X2 4X4 6X6, 4*2.4*4.6*2.6*4.6*6.8*4.8*6.8*8 | Storage: | LPG, Oil, Water, Lpg Propane Pentane, Gas |
Emmission: | Euro2/3/4/5, Euro III/Euro IV/ EuroV LPG Bobtail Trucks | Name: | LPG Bobtail Trucks, LPG Bobtail Trucks GAS FILLING TRUCK / Lpg Cylinder Filling Truck, Gas Refuel Truck |
Highlight: | Right Hand Drive LPG Bobtail Trucks,336HP LPG Bobtail Trucks,Sinotruk HOWO LPG Tanker Truck |
Right Hand Drive Sinotruk HOWO 336HP 10Tons 12Tons LPG Bobtail Trucks
LPG bullet truck(also called lpg refueler truck, lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck,propane delivery truck,propane bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.
With different design,you can choose volume flow meter or lpg dispenser for your truck. propane truck is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.
1) Truck Brand optional for LPG Bobtail Trucks :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.
2) Tank Size of LPG Bobtail Trucks : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L LPG bullet truck
3) Function of LPG Bobtail Trucks: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck
4) Refiling System of LPG Bobtail Trucks : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
5) Truck Spec of LPG Bobtail Trucks : Sinotruk diesel Engine 290hp or 336hp, HW19710 Gearbox 10 Forward & 2 Revers,12.00R20 Tires or 12.00R22.5 tires.

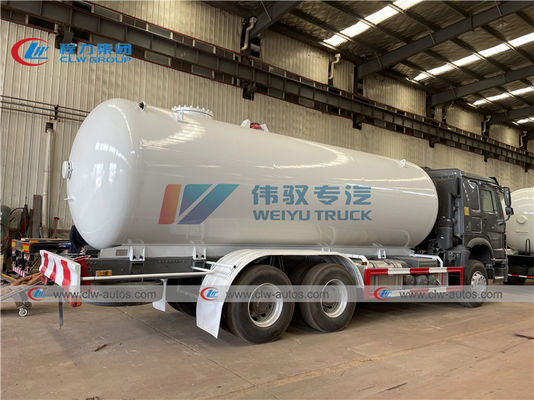

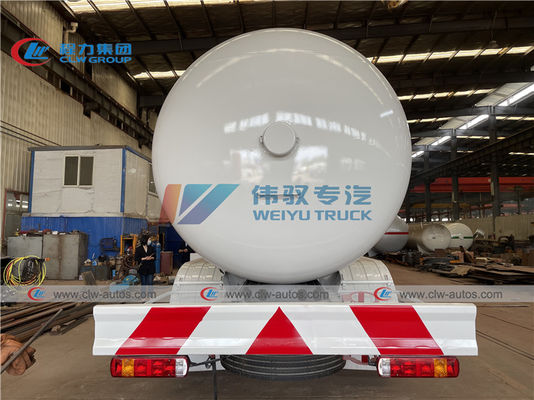

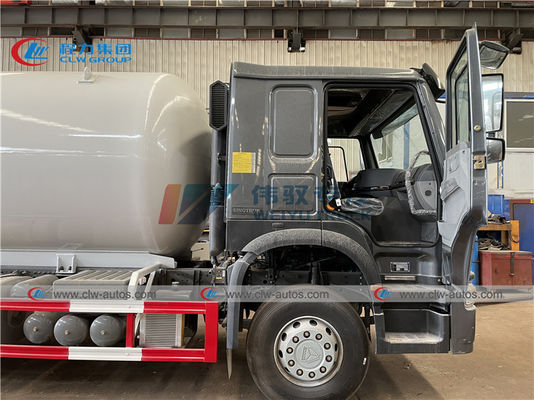

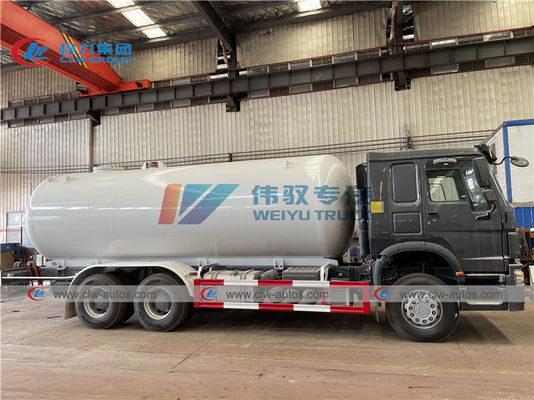

Reference pictures of Right Hand Drive Sinotruk HOWO 336HP 10Tons 12Tons LPG Bobtail Trucks

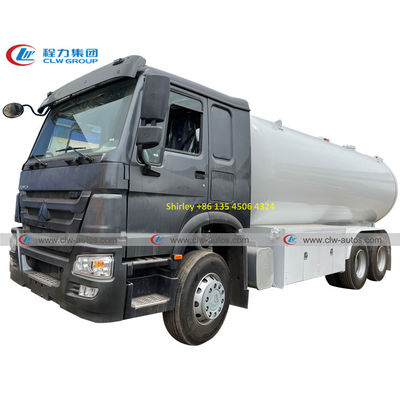

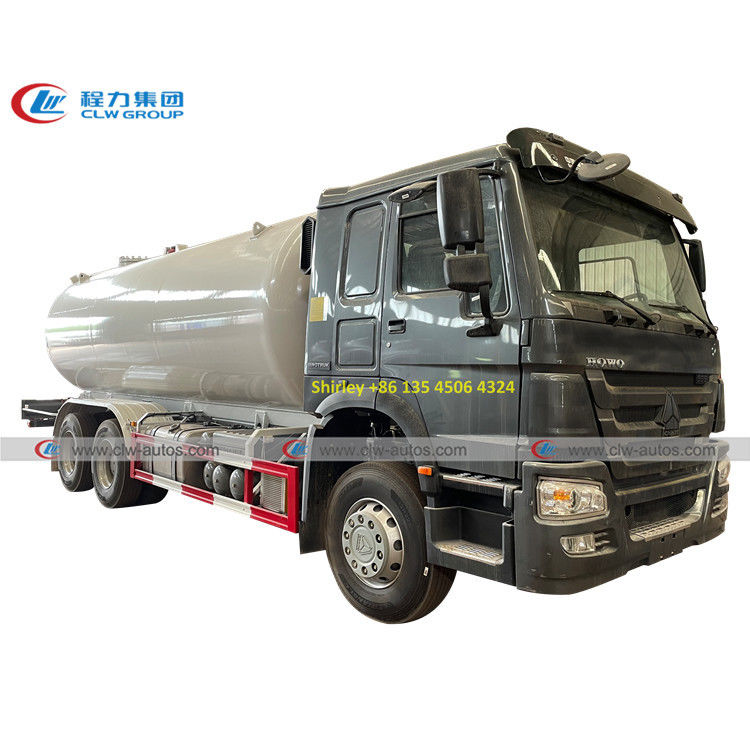

Except for howo 10tons lpg bullet truck,howo 4tons/5tons/7tons lpg trucks are also very popular as following pictures
Specification
Item No. | Parameters |
Overall Dimension | 10720x2480x3420mm |
Driving Model | left hand drive |
Gross Vehicle Weight | 25000 kg |
Curb Weight | 14240kg |
Payload | 10630kg |
Wheel Base | 5200+1350 mm |
Front/rear Tread | 2022/1830 mm |
Approach/Departure Angle | 16/12 degree |
Front Axle | HF9,9000kg |
Rear Axle | HC16,16000kgX2(Heavy duty design) |
Engine | WD615.69,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling |
Engine horsepower | 336HP EUROII |
Displacement | 9760mL (Diesel) |
Max Driving Speed | 95 km/h |
Gearbox | HW19710 |
Cabin | Standard HW76 cabin,2~3 Passenger allowed,with Air Conditioner |
Tire | 12R22.5/12.00R20 (10 pcs with one spare) |
LPG tank | |
Volume: | 20,000Liters/24,000liters |
Tank material: | Q345R |
Tank diameter: | 2050mm |
Tank thickness: | 12mm |
End plate | 12mm |
Tank length: | 8060mm or as designed |
Gas phase | DN50 or according to customer request |
Liquid Phase | DN80 or according to customer request |
Filling gas | Propane(LPG) |
Design Pressure: | 1.61Mpa |
Accessory | |
LPG Pump | 1 pc,Chinese brand |
radiator | 1 pc |
Volume flow meter | 1 pc,English remarks with printer for receipt,Chinese brand |
Filling hose with filling nozzle | 15M |
Level Gauge | Rochester Float Ball type/located at side or rear of lpg tanker |
Safety Valve | 1,DN80 |
Tool and Valve Box | 1 |
Thermometer | 1 |
Pressure Gauge | 1 |
Emergency Valve | 1 |
Fender | Steel |
Fire Extinguisher Holder | 2 |
Exhaust shaft | At the front of truck for safety |
Key word:LPG bobtail trucks,lpg truck, propane tank truck,propane truck,propane gas truck,lpg bobtail truck, lpg bobtails, lpg bobtail,lpg tanker truck,lpg bobtail tanker,propane truck,propane tank truck,lpg dispenser truck,lpg refueler truck,lpg refilling truck, bobtail,10t lpg truck,12tons lpg bobtail for Zimbabwe,Congo lpg truck,lpg distribution truck,gas distribution truck,mobile gas filling truck
Why do you choose us for lpg bobtail truck?
Located in Suizhou city,hubei province, central China, the Hubei Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special purpose trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck,Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck,Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks, LED Advertising Trucks, RV/Camper Trucks, Food Truck/Vender Truck and all kinds of special Trailer applied in sanitation,construction, transportation, chemical, oil and gas, emergency rescue and so on.
With leapfrog development in 16 years since 2004, now Hubei Chengli Special Automobile Co., Ltd has owned more than 70 professional workshops for different vehicles and 2 technical centers, more than 12,600 staffs, in which more than 800 are R&D persons and more than 5000 are technical workers..
CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
After sales service
Before purchasing:
1- Quick reply on customers' inquiry;
2- Professional suggestion on truck choice according to different countries.
3- Details quotation with spec.and reasonable price.
4- Welcome to visit our company before purchasing.
After purchasing:
1- Production pictures and video updated every week.
2- Customer can visit factory after truck completion or arrange third party inspection.
After-sales service:
1- English Operation Video
2- Free operation and technical train at factory but not include accommodation
3- Spare parts supplied at factory price whenever needed.
4- Engineers can be sent to your country and offer local engineering support and train.
FAQ
Q1: What kinds of propane truck I can order from your company?
A: We can supply propane truck from 5000Liters to 35000liters. Pls contact with us for more technical details discussion.
Q2: What is your production standard of propane truck? Whether your propane truck exported to others countries?
A: propane truck is produced strictly according to GB150.1~4,we supplied lpg bobtail to AA RANO,Hass Petroluem,NIPCO and so on.
Q3: What's the difference between your company and other chinese supplier?
A: As the top manufacturer of lpg trucks and products for more than 15 years,our sales are more professional and they will offer you suggestion. And we took part in lpg summit in Africa and Asia every year.
