Product Details:
Payment & Shipping Terms:
|
| Brand: | FAW,HOWO,Dongfeng,JAC,JMC,forland,foton | Passenger: | 2~3 Person |
|---|---|---|---|
| Engine: | Yunnei Brand/Chinese Top Brand | Front Leg: | H Shape |
| Rear Leg: | H Type | Height: | 12Meters,14meters,16meters, 20meters, 22meters |
| Bucket Capacity: | 200kg | Boom Type: | Folding Arm Boom |
| Delivery Time: | 30 Days | Warranty: | 1 Year |
| Logo: | As Per Customer's Request | User Manual: | Yes |
| Operation Video: | Yes | Truck Purpose: | Street Light Repair |
| High Light: | 16m Aerial Work Platform Truck,FAW Aerial Work Platform Truck,4x2 Truck Mounted Boom Lift |
||
Product specification
| Technical Parameter | |
| Product Name | FAW 16Meter aerial platform work truck |
| Dimension(Length×width×height) | 5998*2500*2900mm |
| GVW | 4495kg |
| Curb weight(kg) | 4465kg |
| Platform rated load | 200kgs, 2 persons |
| Fuel type | Diesel |
| Maximum speed(km/h) | 100km/h |
| Cab | 3 people; with air conditioner |
| Chassis | |
| Chassis brand/model | FAW Tiger VR |
| Drive type | 4×2; LHD |
| Transmission | Manual;5 forward gear, 1 backward gear |
| Leaf springs | 8/7+7,9/9+8 |
| Tyre specifications | 7.50R16LT 14PR |
| Tire number | 6 (+1 spare tire) |
| Wheelbase | 3300mm |
| Axle number | 2 |
| Approaching/Departure Angle | 20/13° |
| Front/Rear suspension | 1155/2025mm |
| Front/Rear tread | 1680/1640mm |
| Front/Rear axle loading | 1855/2640kg |
| ABS | YES |
| Engine | |
| Engine brand | CHAOCHAI |
| Displacement | 3153ml |
| Power | 110hp |
| Emission standard | Euro V |
| High altitude operation system | |
| Max working height | 16m |
| Max working range | 9.5m |
| Arm type | Hydraulic folding arm boom |
| Slewing angle | 360° full rotary |
| Outtrigger span | 4000*4000mm |
| MAX hydraulic flow | 30L/min |
| Hydraulic rated pressure | 20MPa |

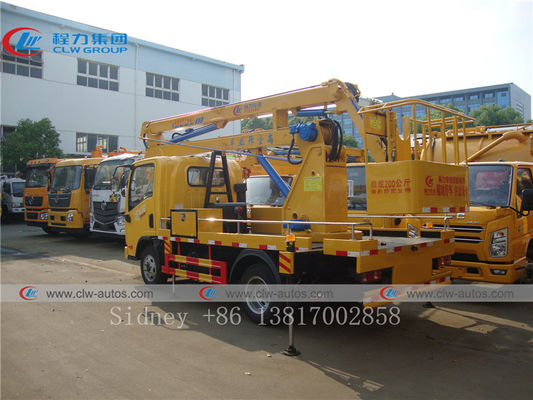

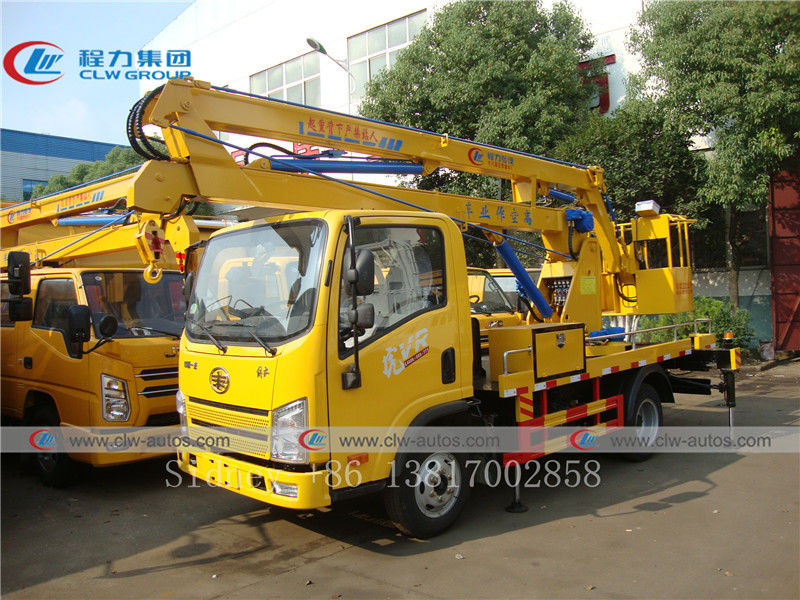

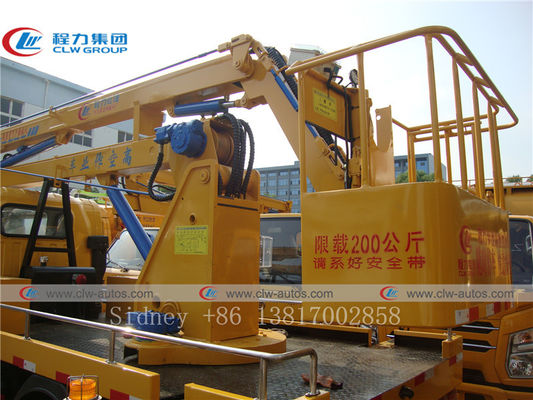

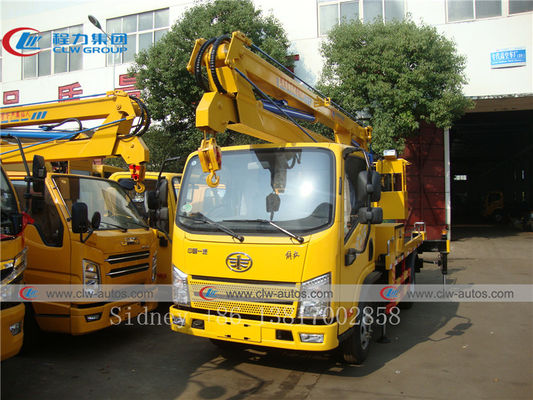

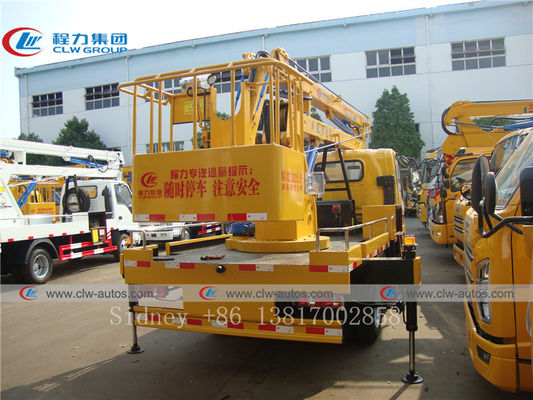

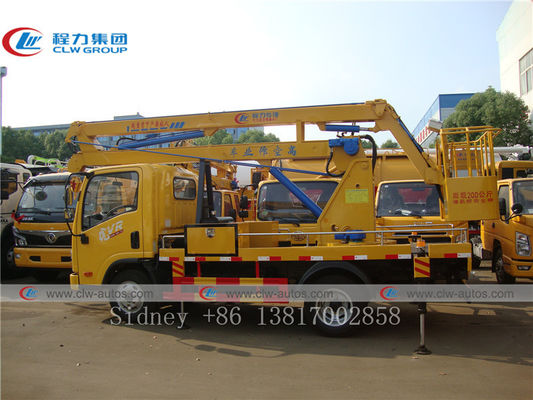

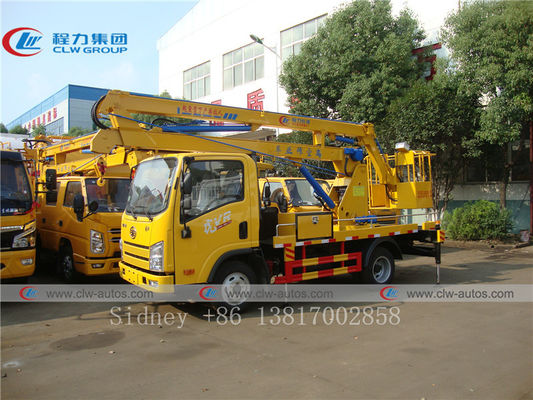

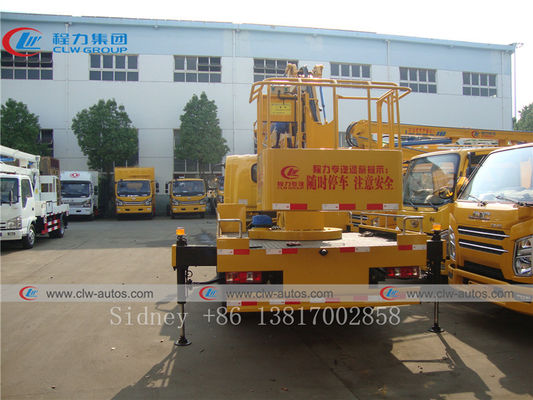

Reference photos
High-Altitude Operation Truck Working Show
Diagram for cherry picker truck
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
