Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Floding Arm Type Aerial Lift Truck |
|---|---|---|---|
| Chassis Brand: | JMC, FAW, Dongfeng, ISUZU, Etc | Drive Type: | 4x2, Left Or Right Hand Drive |
| Dimensions (l X W X H) (mm): | 5995*2050*2900mm | Engine Brand: | JMC, Cummins |
| Fuel Type: | Diesel | Engine Power: | 85kw/115hp |
| Transmission Type: | Manual | Emission Standard: | Euro IV |
| Max Speed: | 90km/h | Wheel Base: | 3360mm |
| Bucket Size: | 1000x700x1250mm | Bucket Capacity: | 200kg |
| Max Operation Height: | 16meters | Working Arm Type: | H Type |
| Warranty: | 1 Year | ||
| High Light: | 18m Truck Mounted Aerial Work Platform,JMC Truck Mounted Aerial Work Platform,JMC Truck Mounted Hydraulic Platform |
||
Product Specification
| Parameter | Overall dimension (Length*width*high) | (mm) | 5995*2050*2900 |
| Total Mass | (kg) | 5730 | |
| Curb Mass | (kg) | 5405 | |
| Max speed | (km/h) | 90 | |
| Fuel type | diesel | ||
| Engine | Engine power | 85kw/115hp | |
| Displacement standard | EURO 4 | ||
| Chassis | Chassis type | JMC | |
| Drive system | 4x2 | ||
| Tire type | 7.00R16 | ||
| Wheel Base | (mm) | 3360 | |
| Number of tire | 6 | ||
| passengers | 2 | ||
| Cabin | Single, with 2 passengers allowed, with Air conditioner | ||
| Special parameter | Working platform rating loading | (kg) | 200 |
| Platform height | (m) | 16.3 | |
| Max Working Height | (m) | 18 | |
| Boom type | Folding arm | ||
| Max hook loading weight | (kg) | 1000 | |
| Loading of hook | (kg) | 800-1000 | |
| Bucket rotation angle | (°) | 360 | |
| Control | Control both on the ground and remote control in cage | ||
| Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump | ||
| Leveling System | Hydraulic stablizer to level the vehicle on uneven ground |

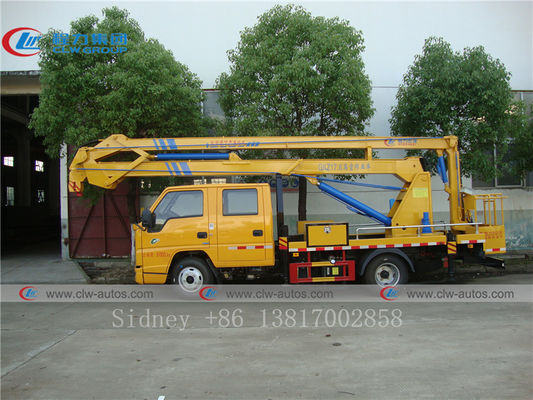

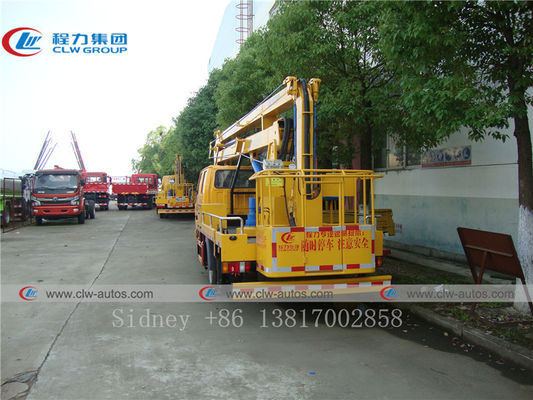

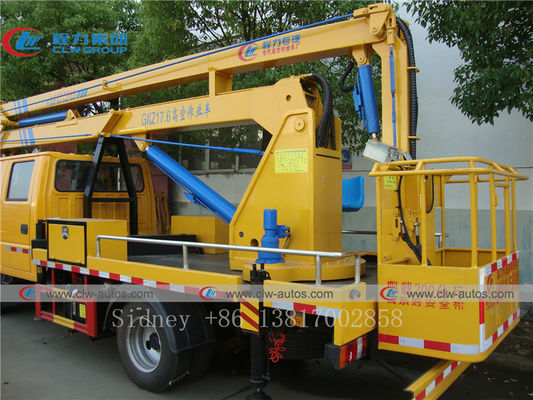

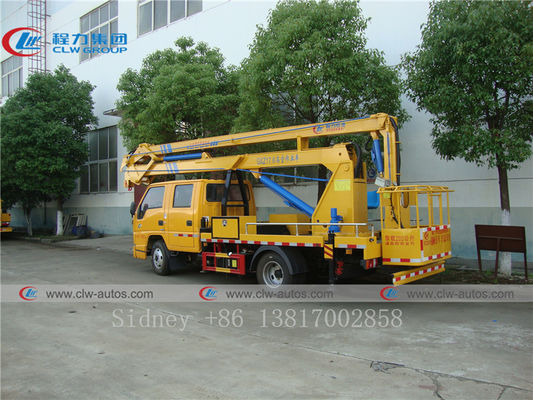

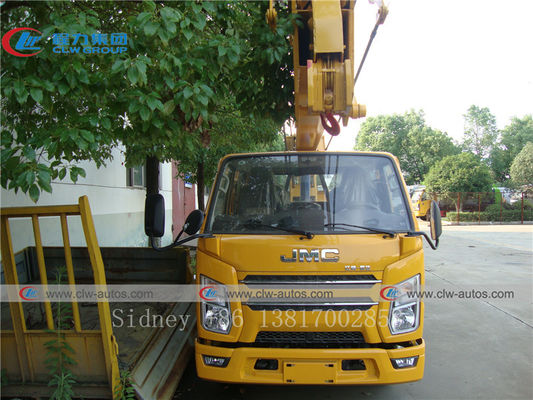

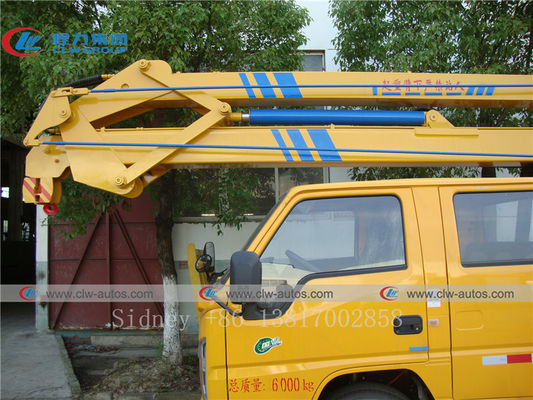

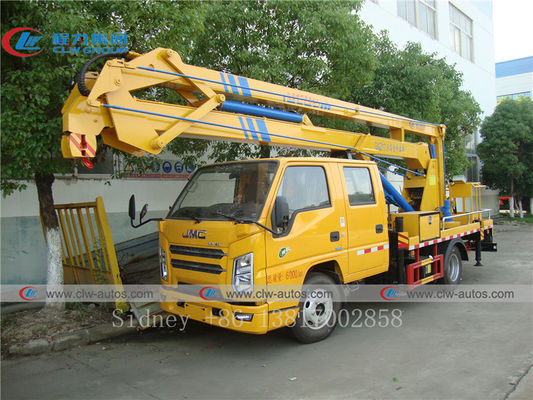

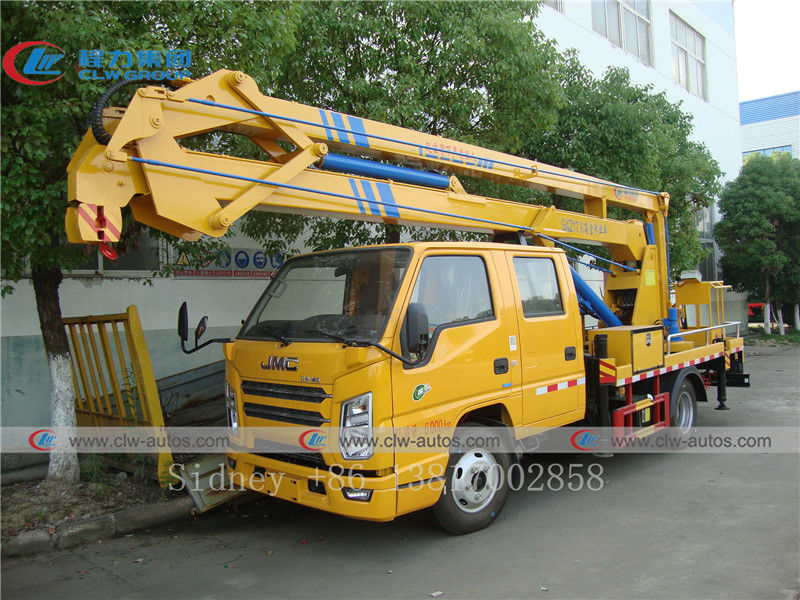

Folding arm boom lift truck details
Aerial work truck diagram
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of truck mounted aeriel platform I can order from your company?
A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request. We will recommend you suitable product.
Q2: Have you supplied truck mounted aeriel platform to any overseas companies?
A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city, welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
