| Working Height: | 16M, 18M, 20M, 22M, 16/18/20/22 Meters | Boom Turn Around Angle: | 360 Degree |
|---|---|---|---|
| Hook Loading: | 1000kg | Platform Rated Load: | 240kg |
| Max. Working Range: | 7m 7 Meters | Chassis Brand: | HOWO, FAW, Dongfeng, ISUZU, Foton, JAC JMCetc. |
| Equipment: | Hydraulic System, Oil Cylinder | Drive Model: | 4x2 6 Wheels, 6 Wheeler |
| High Light: | 22 Meter Telescopic Boom Lift Truck,20 Meter Telescopic Boom Lift Truck,ISUZU 4x2 Telescopic Lift Truck |
||
Japan ISUZU 4x2 6 wheeler 20 22 meter Telescopic High Altitude Operation Working Truck
Description:
1. Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.
2. Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.
3. 360 degree Rotation Arms.
4. Arm and H leg Automatic Locking System to secure safety handling.
5. This aerial bucket truck has been widely used for aerial field such as electricity,street lamp, municipal administration,gardens,communication,airport, shipbuilding, transportation, advertisement and photography.
6. It can easily solve the difficulty of aerial working,makes things easy and efficient. And for this platform truck,we have several models,like straight arm,folding arm scissor lift and vertical lift,you can chose the most suitable one according to your real situation and requirement.
Any questions please knidly inform us,we will provide you professional answers.Thanks.
Specification for Japan ISUZU 4x2 6 wheeler 20m 22 meters Telescopic Type High Altitude Operation Working Truck
| Chassis | |
| Cab | double row cabin / single row cabin / one and half row cabin , A/C Right hand drive /Left hand drive |
| Engine | 115hp |
| Engine emission standard | Euro 3, 4, 5 |
| Fuel type | Diesel |
| Tire | 7.00R16LT 12PR |
| Wheelbase | 3360mm |
| Gear box | 5-speed |
| Boom | |
| Boom type | Articulated Booms |
| Turn around angle | 360° |
| Platform | |
| Max.Rated.Load | 200kg(2 persons) |
| Max.Working Height | 16M |
| Max. working range | 7M |
| Outrigger | |
| Adjustment | Individual adjustment |
| type | H type |
| Hook | |
| Max. loading | 1000kg |

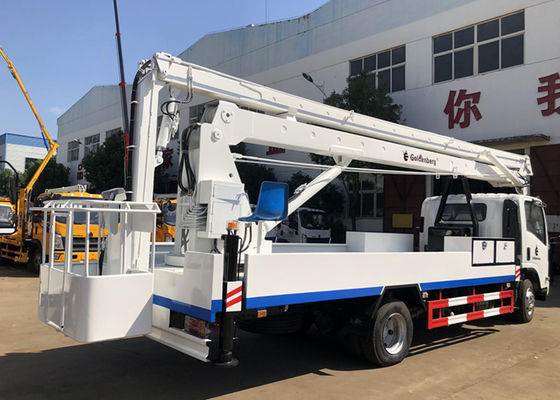

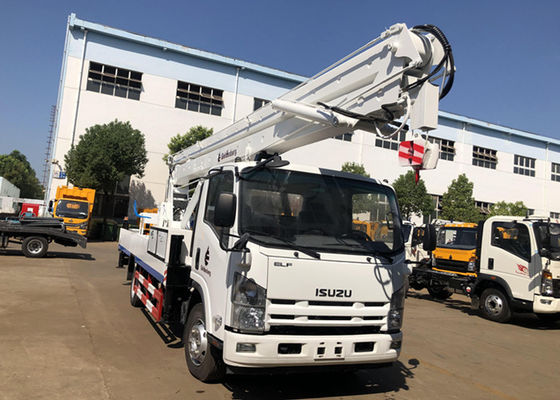

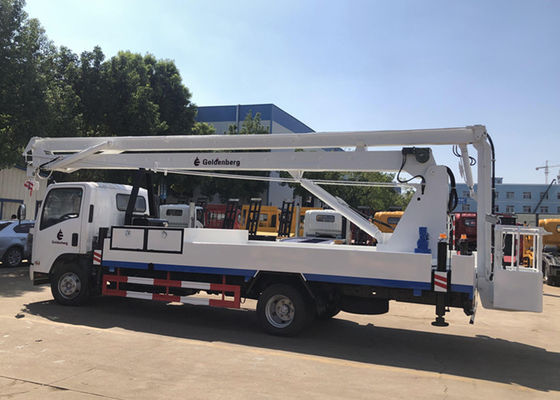

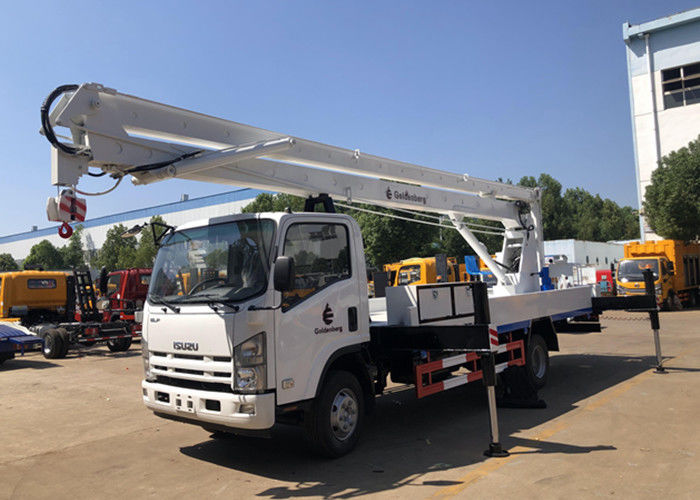

More Pictures for Japan ISUZU 4x2 6 wheeler 20m 22 meters Telescopic Type High Altitude Operation Working Truck

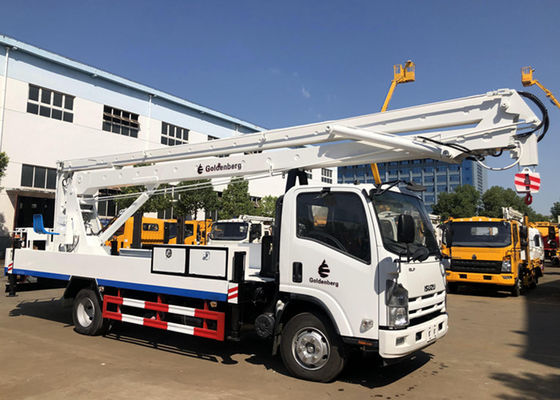

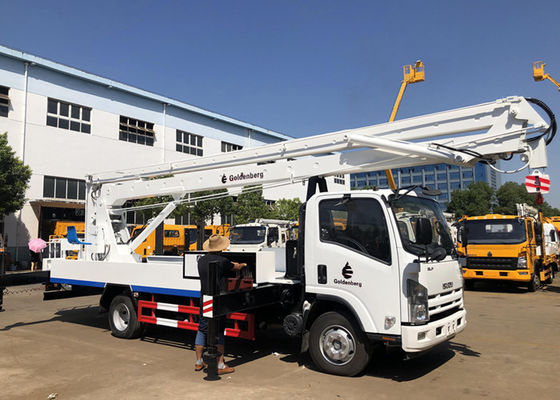

Working Pictures :
Remarks:
1. truck chassis brand is selectable
2. the outrigger operation box is equipped with a lighting device to facilitate work at night and configure the vehicle's bidirectional level to ensure the vehicle's level and ensure safety.
3. The boom rotation is designed as a one-piece swivel to avoid assembly gaps during reassembly in production, and increases the space of the platform.
4. Front and rear H-shaped legs, good stability, can be operated simultaneously or individually, standard washing boxes for all models
5. Upper arm limit device, when the upper arm exceeds the safety angle, the boom will be in a self-locking state to ensure the safety of the operator
6. Up and down steps are equipped on the side(aluminum alloy platform optional )
7. The thickened cylinder seat and the boom cylinder block are all specially thickened to ensure the stability of the boom 8.Sectional coating to ensure the paint quality of the vehicle 9.All cutting parts are CNC laser cutting
Main features:
1. Adopt electro-hydraulic proportional valve to control the action of the arm
2. Working bucket electric swing mechanism, can make the working bucket 90 degrees left 90 degrees right swing;
3. Computer controlled automatic limiting, automatic monitoring of the whole process of the working status, automatic limit of the operating radius;
4. Vertical legs and working arms are interlocked
5. Anti collision function of working arm with cab and outrigger
6. Automatic interlock on and off, prevent wrong operation, safe and reliable
7. Equipped with electric emergency power source to effectively deal with sudden failure
8. Automatic accelerator system;
