Product Details:
Payment & Shipping Terms:
|
| Truck Brand: | HOWO,ISUZU,DONGFENG,FAW,SHACMAN | Material: | Q345R Lpg Tanker Truck |
|---|---|---|---|
| Tank Size: | 5000L 5000Liters 10000Liters Lpg Tanker Truck | Loading Weight: | 2tons/2mt/2.5tons/2.5mt Lpg Tanker Truck |
| Engine: | Diesel Engine Lpg Tanker Truck | Horsepower: | 116hp 140hp 160hp Lpg Tanker Truck |
| Purpose: | Skid Station Refilling,cylinder Filling Lpg Tanker Truck | Design Pressure: | 1.61Mpa 16.1Bar Lpg Tanker Truck |
| Drive Wheel: | 4x2, 6x4, 8x4, 4X2 6X4 8X4 6X2 4X4 6X6, 4*2.4*4.6*2.6*4.6*6.8*4.8*6.8*8 | Storage: | LPG, Oil, Water, Lpg Propane Pentane, Gas |
| Emmission: | Euro2/3/4/5, Euro III/Euro IV/ EuroV Lpg Tanker Truck | Name: | Lpg Tank Truck, LPG TANK TRUCK GAS FILLING TRUCK / Lpg Cylinder Filling Truck, Gas Refuel Truck |
| Country: | Lpg Truck For Nigeria,lpg Truck For Kenya,lpg Truck For Zimbabwe | ||
| High Light: | Sinotuck HOWO Bobtail Tanker Truck,4x2 Bobtail Tanker Truck,5000 Liters LPG Bobtail Trucks |
||

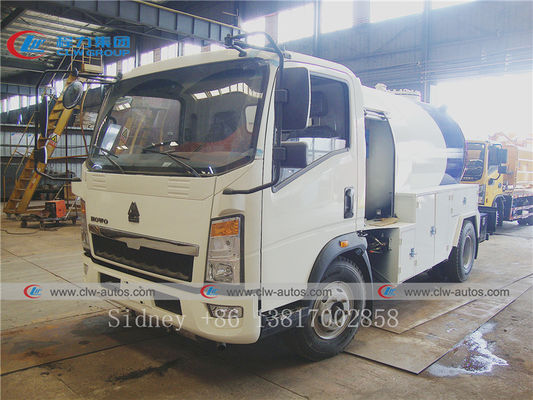

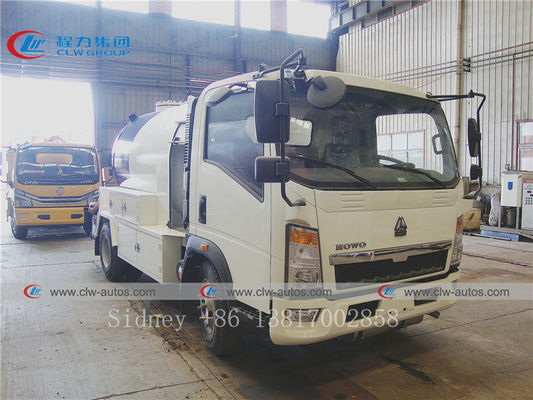

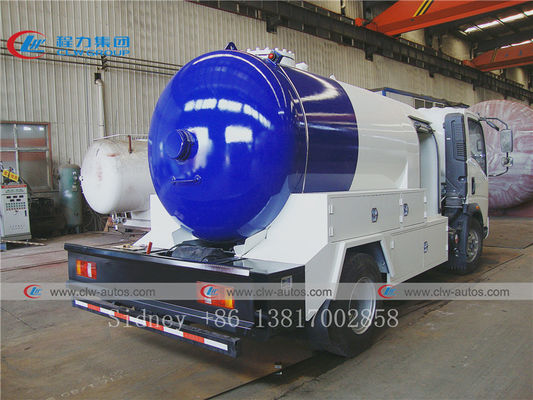

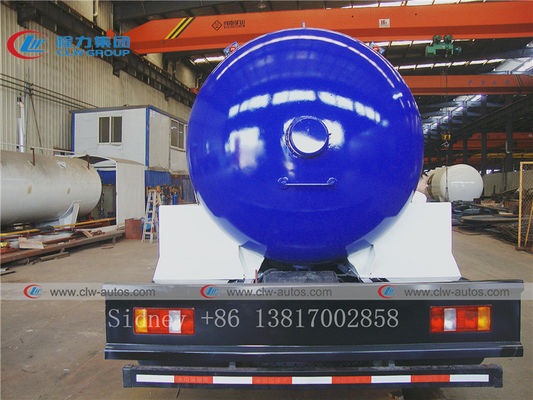

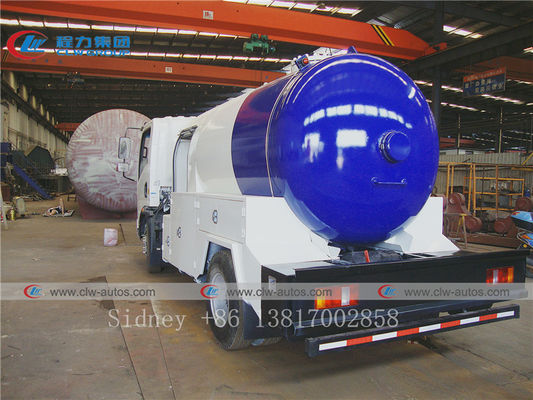

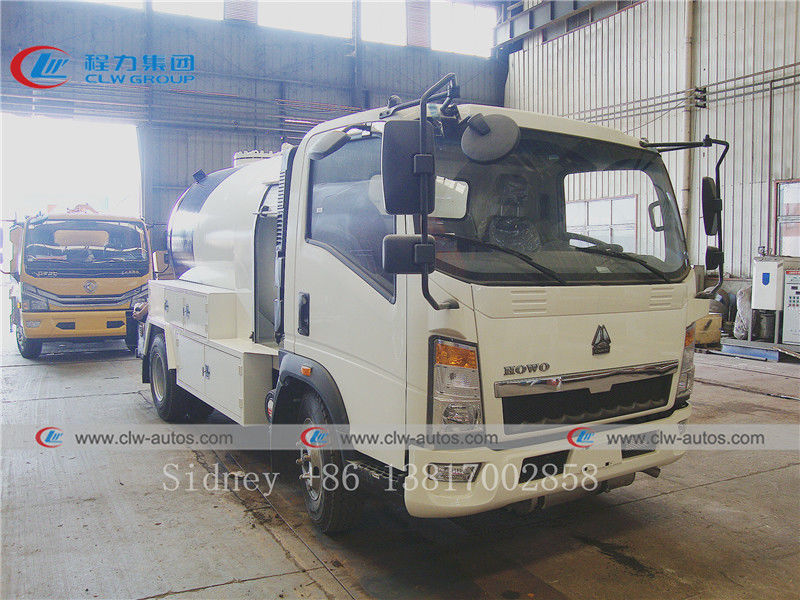

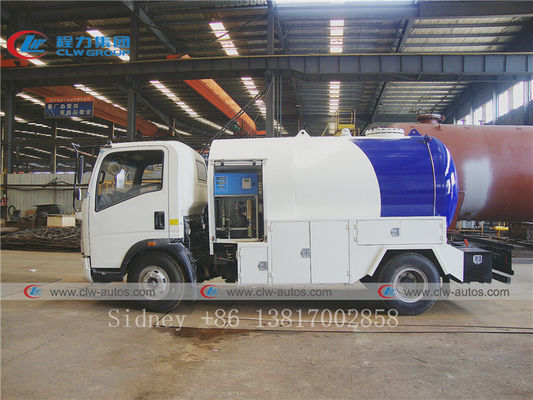

5cbm 5000liters Sinotuck HOWO 4X2 LPG bobtail Tanker Truck with Dispenser
Product Description
1. Storage medium of LPG bobtail truck : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Truck Brand of LPG Gas Bobtail : Howo,optional for dongfeng,faw,isuzu,foton and other brands
3. Available tank capacity of LPG bobtail truck: 5m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.
4. Function of LPG Gas Bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
5. Manufacturing standards of LPG bobtail truck: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

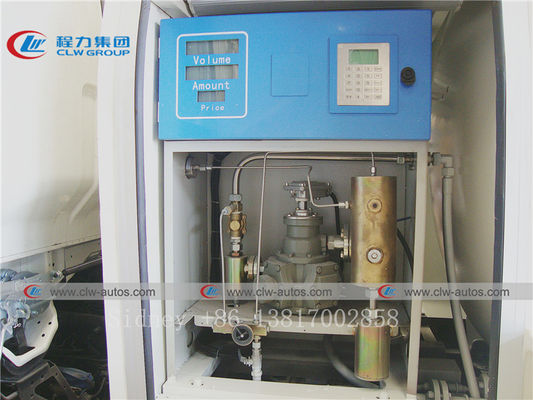

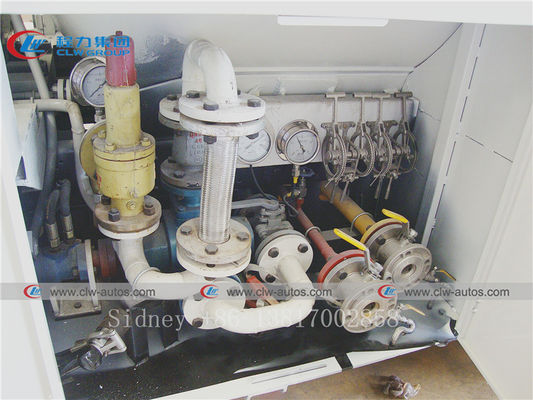

6. Refiling System of LPG Gas Bobtail: 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel
Specification
| Main Technical Parameter | |
| Model Name | HOWO 4x2 5000Liters LPG bobtail truck with dispenser |
| Driving Type | 4x2,left hand drive |
| Weights | |
| Rated payload weight(kg) | 5000 |
| Curb weight(kg) | 4990 |
| Dimensions | |
| Wheelbase(mm) | 3360 |
| Overall Dimension(mm) | 5900×2045×2600 |
| Tank volume | 5000L |
| Max speed(km/h) | 90 |
| Engine | |
| Engine model | CHAOCAI 120HP |
| Engine type | Diesel 4-storke, Inter-cooling,water-cooling |
| No. of cylinders | straight-4 cylinders |
| Displacement(ml) | 3856 |
| Rated power Rev((Kw) | 88 kw |
| Drive Line | |
| Transmission | 6 speeds,6 forwards, 1 reverse gear,manual operation |
| Brake system | Air break |
| Cab | |
| cabin | SINOTRUK HOWO |
| Axle | |
| Front axle | 2.4 tons |
| Rear axle | 4.2 tons |
| Tire specification | |
| Tire specification | 7.00R16 standard tire |
| Tire quality | 6 tires+1 spare tire |
| Other | |
| Electric system | 24V |
| Tool | Standard equipment |
| Configuration | |
| Tanker material | Q345R |
| Others | Storage for:liquified propane |
| design pressure 1.77Mpa; | |
| design temperature 50 ; | |
| filling density: 0.42T/M3; | |
| corrosion allowance: 1mm; | |
| Industry Protocol | GB150-1998 "Steel Pressure Vessels," Pressure Vessel Safety technical monitoring procedures, LPG safety inspection procedure |
Reference photos
Production Process of Propane Gas Storage Tank
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
