Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck

Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck
Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck

Large Image :  Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO,BV,SGS
Model Number: CLW5821

Payment & Shipping Terms:

Minimum Order Quantity: Unit
Price: Negotiable
Packaging Details: Bulk Ship, RO-RO, Container
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Detailed Product Description
Chassis Brand: Dongfeng, Foton, Sinotruk HOWO, Isuzu, Etc. Drive Model: Right Hand Drive & Left Hand Drive
Wheelbase: 2456mm Engine Power: 68HP
Water Tank Capacity: 2cbm 2m3 2cubic Meter 2000liters 2t 3t Fecal Tank Capacity: 2cbm 2m3 2cubic Meter 2000liters 2t 3t
Tank Material: 5mm Carbon Steel Vacuum Pump: Famous International Brand
Fecal Suction Pipe: 5m Suction Time: No More Than 5mins
Effective Suction Range: No Less Than 8m Logo And Pattern: As Customer's Request
Warranty: 1 Year
High Light:

4x2 Fecal Suction Truck

,

Dongfeng Fecal Suction Truck

,

4x2 RHD Vacuum Sewage Suction Truck

2000-3000 Liters Dongfeng 4x2 mini fecal suction truck sewage vacuum suction truck for sale


Description:
A Fecal Suction Truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of fecal suction trucks with capacities ranging from 3cbm to 18cbm.
Product Specification


The Parameters of 2M3 Dongfeng Mini Fecal Suction Truck
Overview
NameDongfeng Mini Fecal Suction Truck
Dimension(LxWxH)4201X1475X1870(mm)
Total Mass3865 Kg
Rated Payload3000 Kg
Kerb Weight865 Kg
Passenger 2
Approach/Departure Angle33/24
The Parameters of Chassis
Manufacture/ModelDongfeng
Driving Type4*2 right hand drive
Wheel base2456 mm
GearboxSix speed lever with five speed forward and one reverse, manual
Front/Rear Track1260/1260(mm)
Tyre6.00-13
The Number of Tyre4+1(spare tyre)
Front/Rear Suspension795/850(mm)
Leaf Spring Number3/5
The Paremeters of Engine
Manufacturer/ModelLaidong/4801QB
Rated Power68hp
Fuel TypeDiesel oil
Displacement/Capacity1809ml
Emission StandardEuro 6
CylinderStraight/4/intercooling
Max. torque170N.m
Velocity3200rpm
The Parameters of Equipment
Tank Capacity2-3 M3 / 2000-3000Liters
Vacuum Pump Rotation Speed800r/m-1400r/m
Max. Suction Lift>6m
Vacuum>500mmHg
Rotation Direction Clockwise
Length of Pipe5m
Time for full sucktion<5min
Basic Equipment Vacuum pump, ball valve, 5 meter pipe, pressure meter, window for showing liquid level, cleaning system, hoist base, water and oil separator, anti-leaking valve, etc.
Optional Equipment Sprinkler, alarm for full suction, double pump, crane, scissor lift, etc.

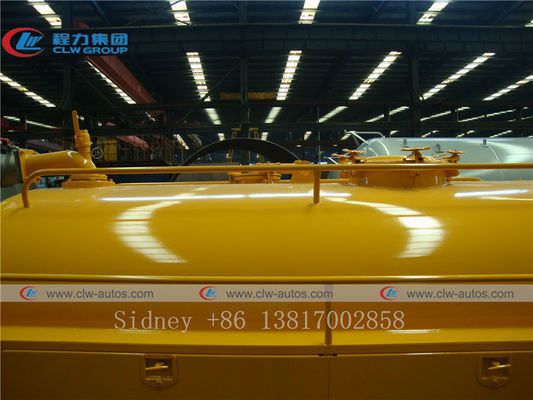

Reference Photos

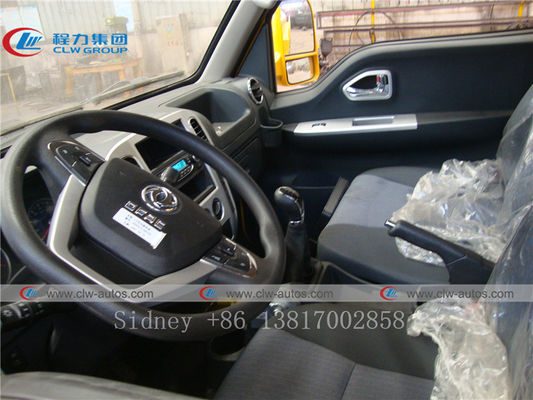

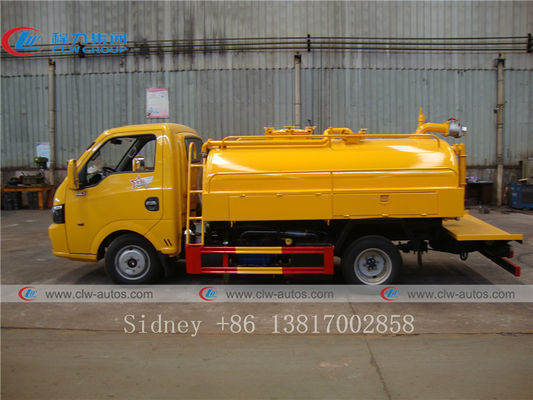

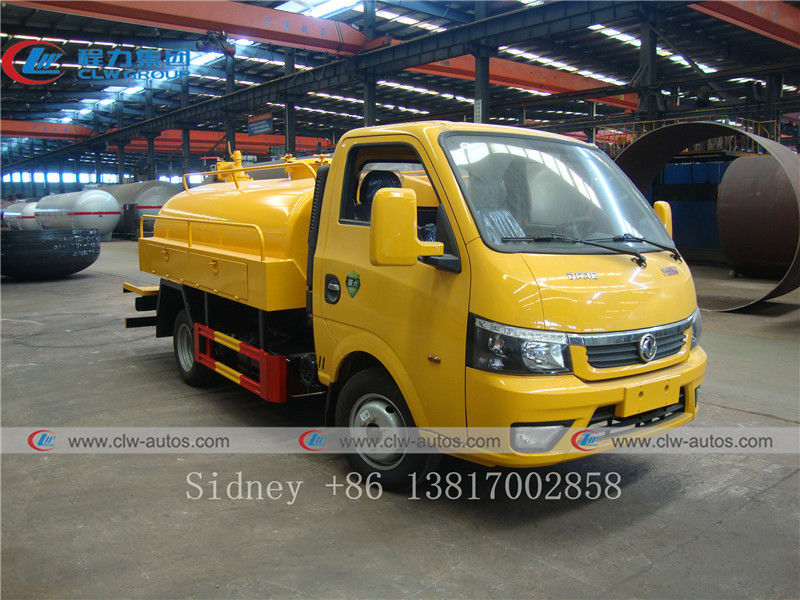

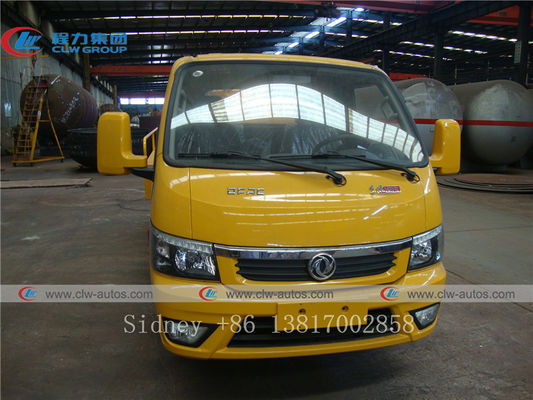

Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck 0Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck 1
Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck 2Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck 3

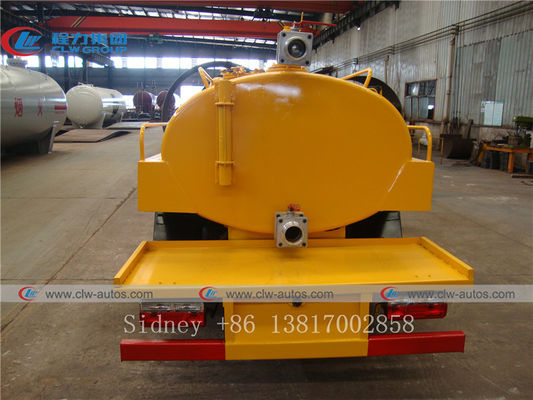

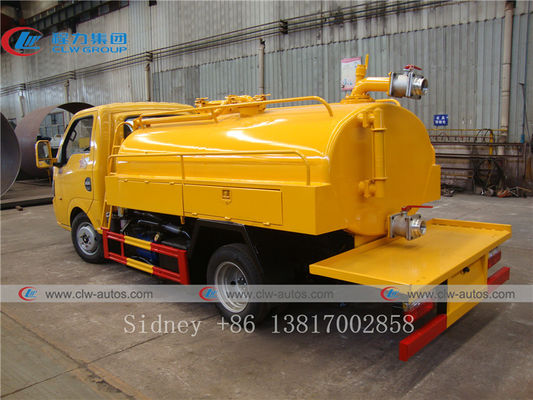

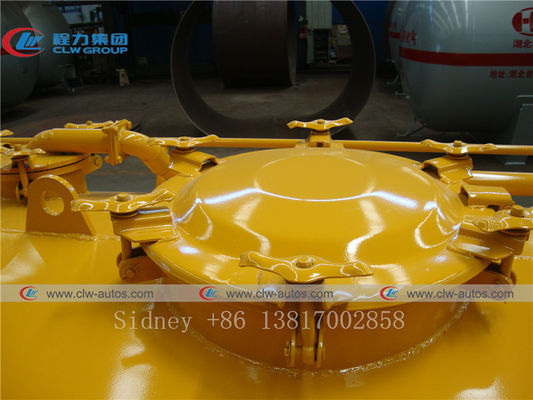

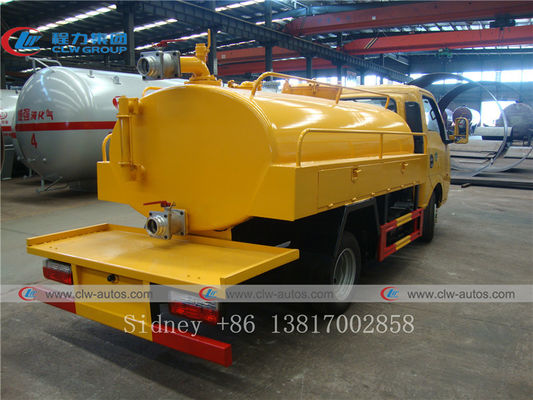

Main Structure
Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck 4

Working Scene
Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck 5

Delivery and Shipment
Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck 6
Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ


Q1: What size Fecal Suction tank we can get from your company?

A: we can supply 2CBM to 18CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
