Product Details:
Payment & Shipping Terms:
|
| Tank Material: | Strong Carbon Steel | Tank Capacity: | 18CBM To 25CBM |
|---|---|---|---|
| Pump: | Italian Jurop, Weilong Brand | Truck Brand: | Dongfeng, Sinotruk, Shacman, Benz, |
| Tank Pressure: | -0.97Mpa | Optional: | 60meter Rubber For Sewer Cleaning |
| Tire: | 11R22.5, 12R22.5. 6 Pieces With 1 Spare Tire | Loading Capacity: | 18Ton To 25Ton |
| Color: | Customized | ||
| High Light: | 19m3 Sewage Suction Truck,SINOTRUK HOHAN Sewage Suction Truck,8x4 Sewage Sucking Truck |
||
8X4 SINOTRUK HOHAN 19m3 Heavy Duty High Pressure 19000litres Sewage Suction transport tank Truck with High Pressure Hose for sale
Function:
(1) Vacuum sewage suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker , vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.)
is used for collecting, transporting and discharging liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones, bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.
(2) Accessory of sewage suction function: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
(3) vacuum tank capacity ranges from 3,000 Liters to 20,000 liters
| Vacuum Tank Truck Model | SINOTRUK HOHAN 8x4 vacuum sewage suction and transport tank truck | |
| Cabin / Passenger Capacity |
One and half row Seat, HW76 flat top with a bed, with airbag seat, tiltable, with air conditioner, 2+1 passenger. |
|
| Chassis | Model | ZZ3317 |
| Overall dimensions | 9800*2500*3800 mm | |
| G.V.W | 31000 kg | |
| Net weight | 18580 kg | |
| Design load | 24000 kg | |
| Drive type | 8x4 | |
| Suspension F/R | 1500/1895 mm | |
| Wheelbase | 1800+3200+1350 mm | |
| Number of axles | 3 | |
| Axle-load | 6500/7000/17500 kg (all wheels drive) | |
| Approach/Departure Angle | 19/24 ° | |
| Number of Spring leafs | 14/13 | |
| Track F/R | 2022/2022/1830/1830 mm | |
| Tire ( No. & specification) | 12.00R20 , 12pcs+1pc ( opting vacuum tire ) | |
| Max speed (Km/h) | ≥ 102 km/h | |
| Brake system | Pneumatic braking | |
| Steering | ZF8090 steering | |
| Transmission | HW19710, Mechanical 10 forward + 2 reverse | |
| Engine | Engine model | WD615.47 |
| Type of fuel | diesel | |
| Power | 273 kw ( 371 hp ), opting 336 hp | |
| Exhaust | 9726 ml | |
| Vacuum Tank | Tank capacity | 18000 L ,20000 L, 22000 L, 24000 Liters = 18 m3 , 20 m3, 22 m3, 24 m3 |
| Tank shape | Square round shape | |
| Tanker size | 19000 Liters | |
| Tank material | Mild steel / stainless steel / aluminum alloy | |
| Standard equipment |
Equipped with vacuum sewage suction pump, rear cover locker hydraulic cylinder, and lift hydraulic cylinder system, oil & air separator, water and air separator, valves, painting, 1, Equipped with special vacuum (rating rotate speed+ 1400r/m, min rotate speed>800 r/m, max suction lift>6 m vacuum > 500 mm Hg, clockwise) 2, Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. 3, time for full suction < 5 min. |
|

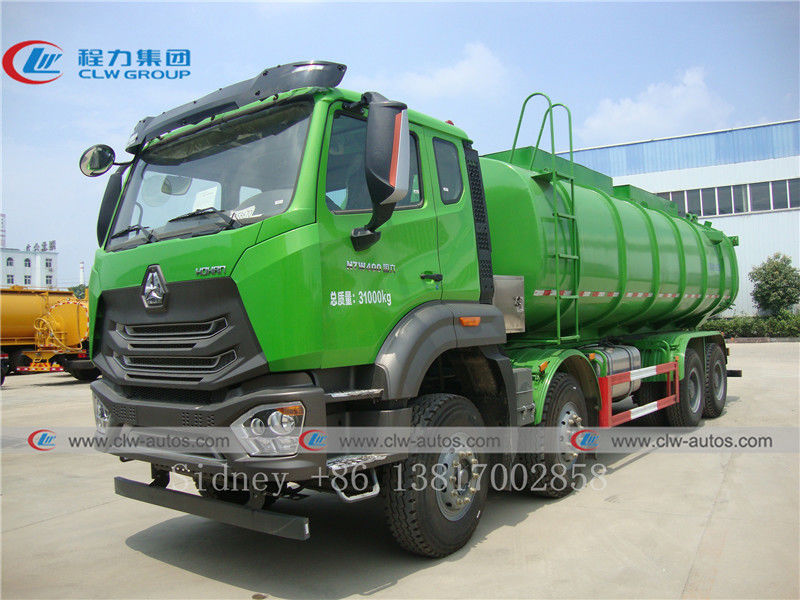

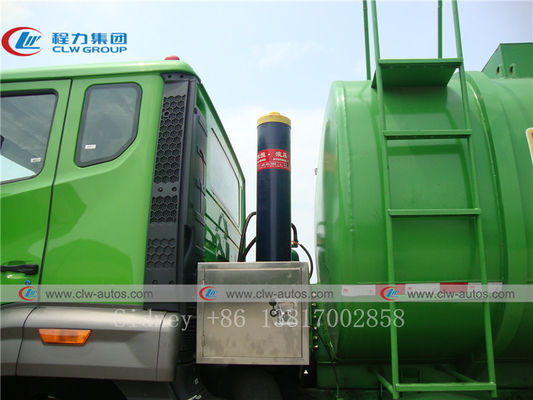

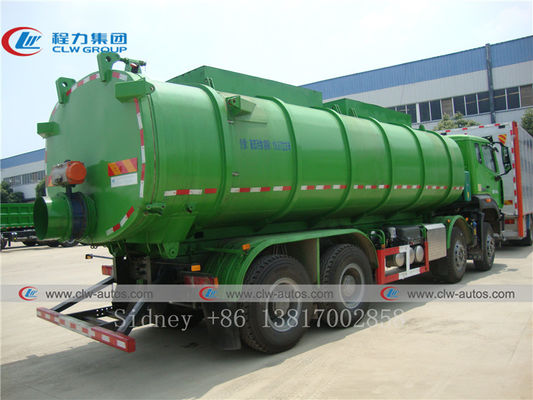

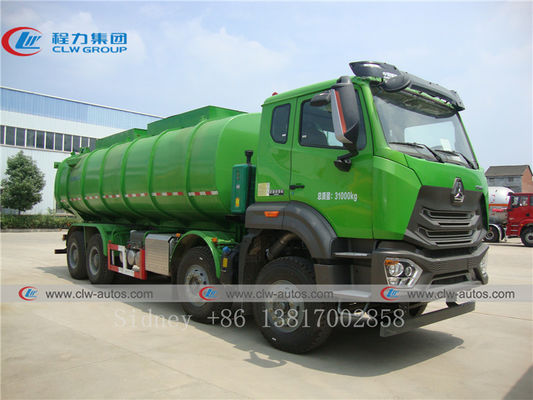

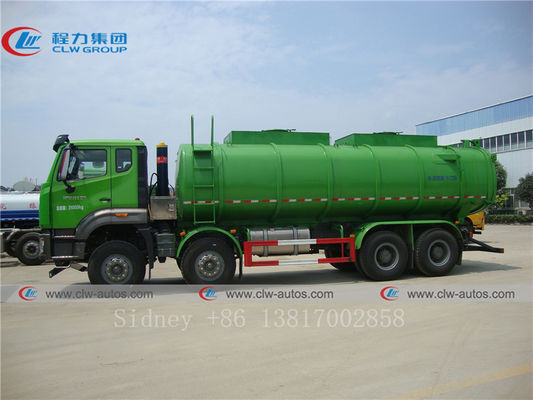

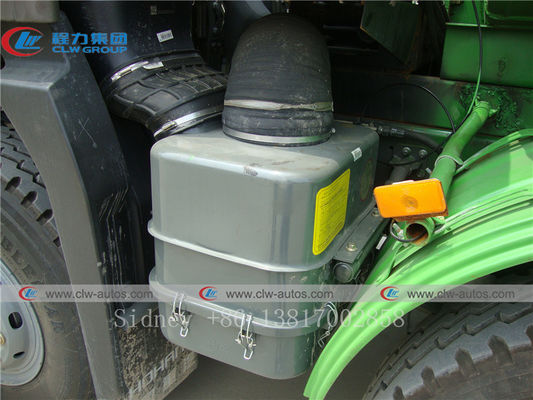

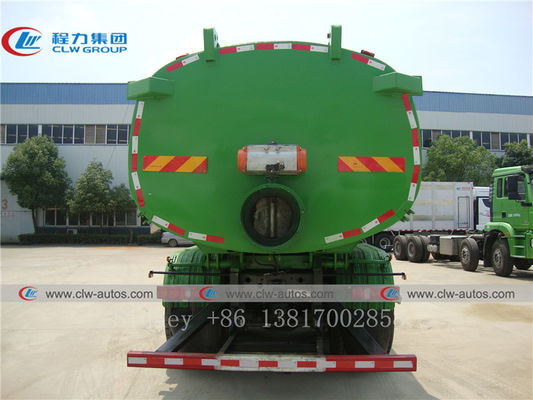

Reference photos
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Sewer cleaning truck I can order from your company?
A: We can supply normal sewege suction truck and high pressure sewer flushing and sewage suction truck, the difference between those two kinds of sewer cleaning truck are water tank and high pressure water pump. Basically speaking, we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?
A: Our CBU Sewer cleaning truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.
Q3: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
