| Material: | Carbon Steel, Q345R, Q370R. Q420R | Product Name: | HOWO LPG Dispenser Refilling Truck. LPG Bobtail Truck |
|---|---|---|---|
| Drive Type: | 160HP YUCHAI ENGINE 4X2 6 WHEELS 6 WHEELER | Drive Model: | Left Hand Drive, Or Right Hand Drive |
| Loading Capacity: | 2 Tons, 2.5 Tons, 3 Tons, 2T, 2.5T. 3T, | Truck Brand: | Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac |
| Tuck Type: | LPG Bobtail, LPG Refilling Truck, LPG Tank Truck | Other Equipment: | With Pump, Motor, Flow Meter, LPG Filling Machine Etc. |
| Condition: | Sinotruk HOWO Brand, Brand New Truck | ||
| High Light: | 5000L LPG Gas Tanker Truck,RHD LPG Gas Tanker Truck,Sinotruk HOWO 4x2 LPG Gas Truck |
||

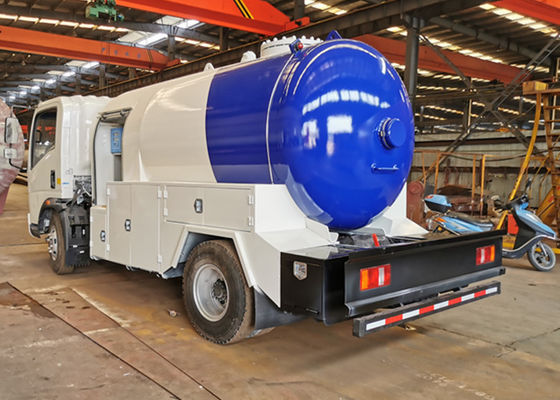

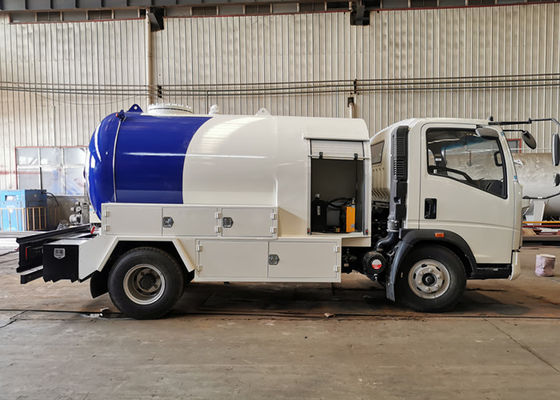

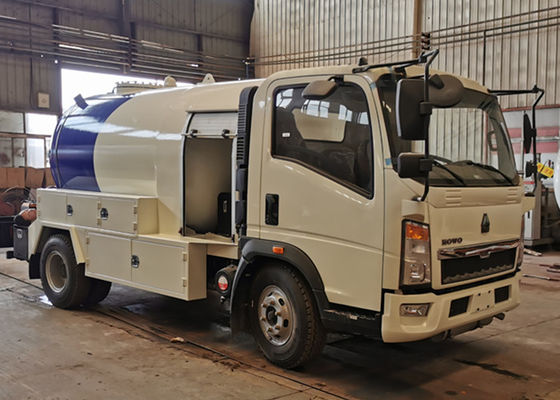

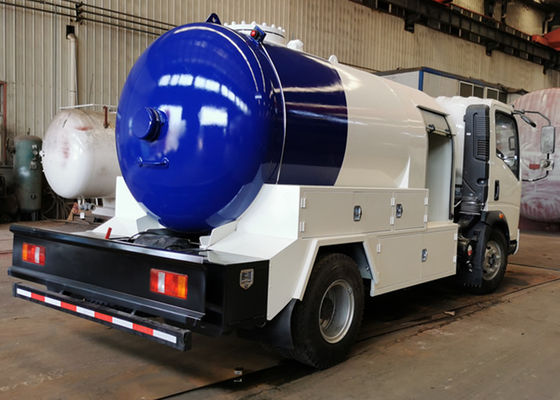

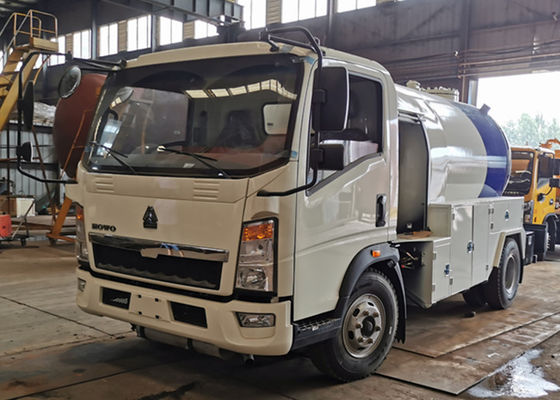

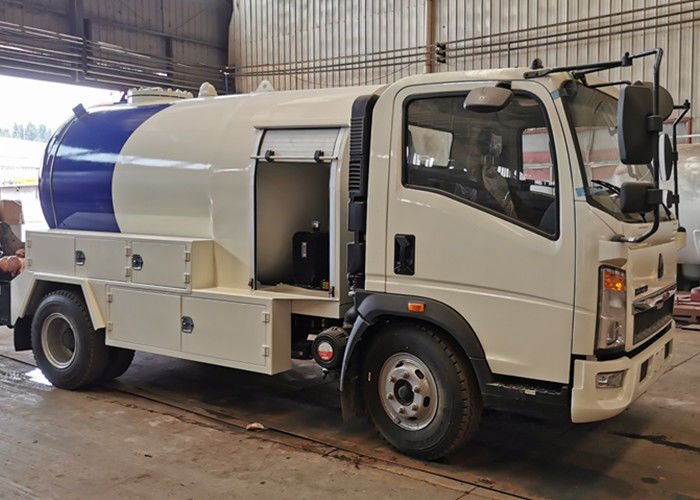

Sinotruk HOWO 4x2 116hp RHD 5000L LPG dispenser refilling truck 2 Tons, 2T 2.5T LPG filling tank truck
Product Description
LPG rigid truck(also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.
With different design,you can choose volume flow meter or lpg dispenser for your truck. The lpg dispenser is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.
1) Truck Brand optional for lpg bobtail :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.
2) Tank Size of lpg bobtail : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,
3) Function of lpg bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck
4) Refiling System of lpg bobtail : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
5) Truck Spec of lpg bobtail : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.
product Specification
| Item No. | Parameters |
| Overall Dimension | 5900x2400x2650mm |
| Driving Model | Left hand drive for Nigerian market |
| Gross Vehicle Weight | 8160 kg |
| Curb Weight | 5850kg |
| Payload | 2310 kg |
| Wheel Base | 3360 mm |
| Front Axle | 2400kg |
| Rear Axle | 4200kg |
| Engine | YN4102QBZL,Diesel engine |
| Engine horsepower | 116HP EUROIII |
| Displacement | 3760mL (Diesel) |
| Rated Rotation Speed | 3000 rpm |
| Gearbox | WLY6T46,6-speed forward and 1 reverse |
| Cabin | Howo L2W 2080 spacious cabin,2~3 Passenger allowed,with A/C |
| Tire | 7.50R16 (6 pcs with one spare) |
| Exhaust Pipe | At front of Cabin for safety |
| LPG tank | |
| Volume: | 5000iters |
| Tank material: | Q345R |
| Tank diameter: | 1600mm |
| Tank thickness: | 10mm |
| End plate thickness: | 10mm |
| Tank length: | 3070mm or as designed |
| Gas phase | Flange type,DN50/2” or according to customer request |
| Liquid Phase | Flange type,DN50/2” and DNDN80/3” or according to customer request |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Testing pressure | 2.21Mpa |
| Refilling Accessory | |
| LPG Pump | Chinese brand YQ15-5 |
| Flow rate:15.5M3/H | |
| 10 Mpa inlet pressure | |
|
780 r/min for rotation speed
|
|
| Radiator |
1 pc(to avoid high temperature of hydraulic oil during operation)
|
| Hydraulic motor | 1 pc |
| LPG Dispenser |
English remarks with printer for receipt
|
| Filling hose | 15M,retractable |
| Filling nozzle | Filling nozzle for cylinder |
| Level Gauge |
Chinese Float Ball type,at the rear of tank
|
| Safety Valve | 1,DN80 |
| Tool and Valve Box | Located at side of LPG bobtail |
| Thermometer | 1 pc |
| Pressure Gauge | 2 pc |
| Emergency shut off Valve | 3 pcs with witch inside valve box and at rear of truck |
| Fender | Steel |
| Fire Extinguisher Holder | 2 sets |
| Anti Static line | 1 set |
Sinotruk HOWO 4x2 116hp RHD 5000L LPG dispenser refilling truck 2 Tons, 2T 2.5T LPG filling tank bobtail truck
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
