Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

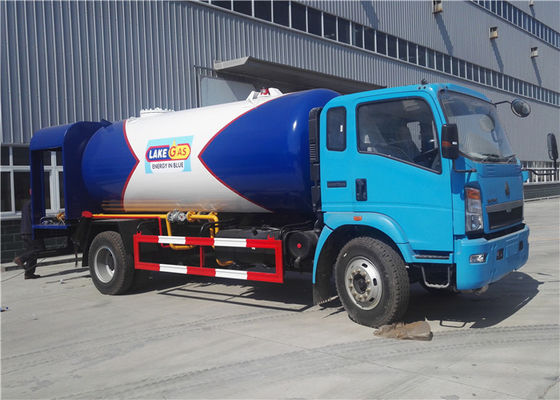

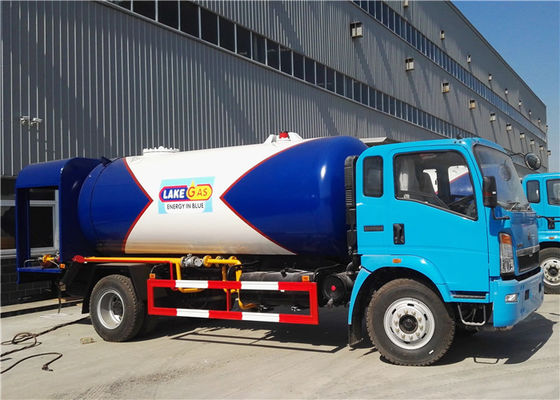

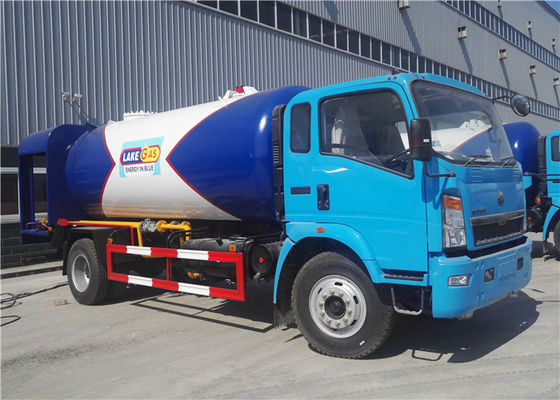

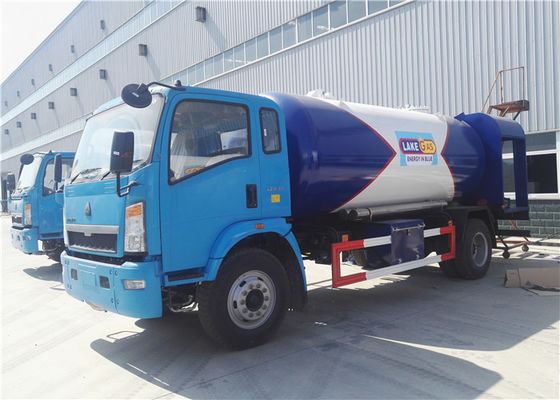

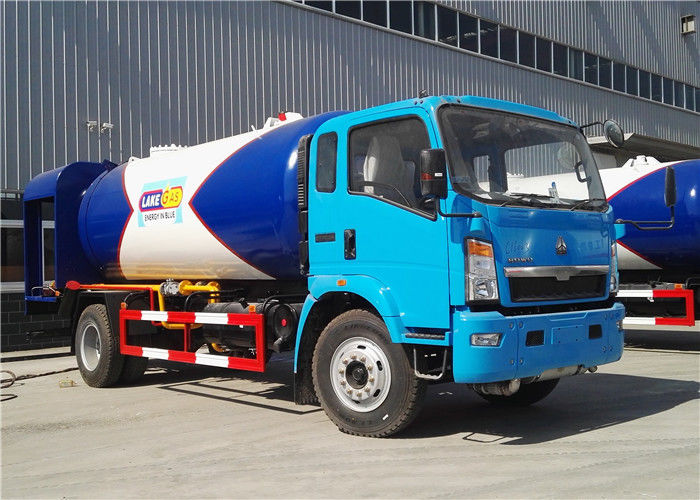

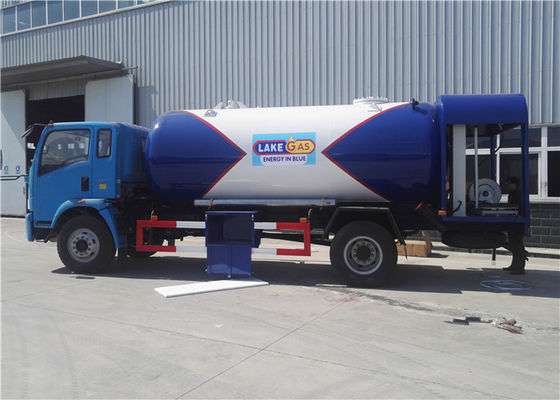

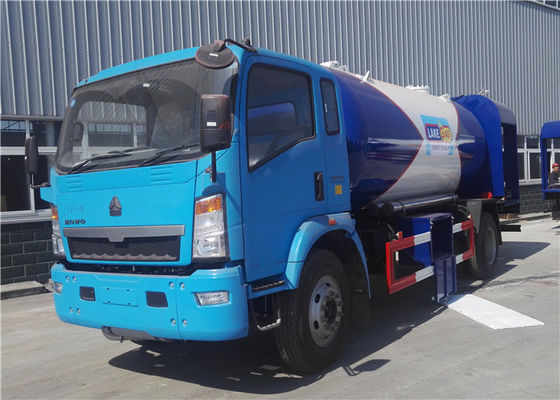

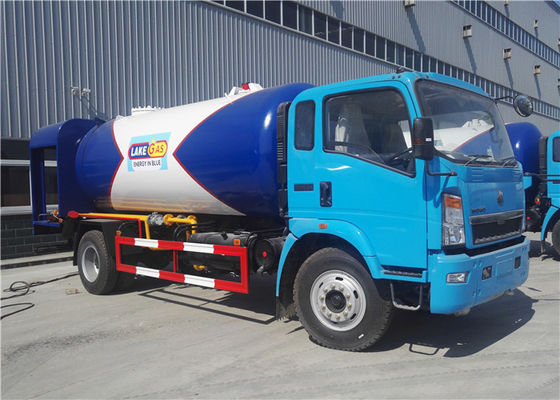

Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck

Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck
Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck

Large Image :  Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: ISO9001, CCC, BV, SGS
Model Number: CLW20210723

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiated
Packaging Details: Naked or waxed before shipment
Delivery Time: 30-35 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Material: Carbon Steel, Q345R, Q370R. Q420R Product Name: HOWO LPG Dispenser Truck. LPG Gas Tanker Truck
Drive Type: 160HP YUCHAI ENGINE 4X2 6 WHEELS 6 WHEELER Drive Model: Left Hand Drive, Or Right Hand Drive
Loading Capacity: 3 Tons, 4 Tons, 5 Tons, 3T, 4T. 5T, 6T. 7T Truck Brand: Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac
Tuck Type: LPG Bobtail, LPG Refilling Truck, LPG Tank Truck Other Equipment: With Pump, Motor, Flow Meter, LPG Filling Machine Etc.
Condition: Sinotruk HOWO Brand, Brand New Truck Steering Wheel: Left Hand Drive, Or Right Hand Drive RHD
High Light:

12000L LPG Transport Truck

,

RHD LPG Transport Truck

,

Sinotruk Howo 4x2 LPG Delivery Truck

Sinotruk HOWO 4x2 RHD 12000L 6 tons Transport Tank Bobtail Cylinder Filling LPG Gas Dispenser Truck



Product Description

LPG rigid truck(also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.

With different design,you can choose volume flow meter or lpg dispenser for your truck. The lpg dispenser is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.

1) Truck Brand optional for lpg bobtail :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.

2) Tank Size of lpg bobtail : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,

3) Function of lpg bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

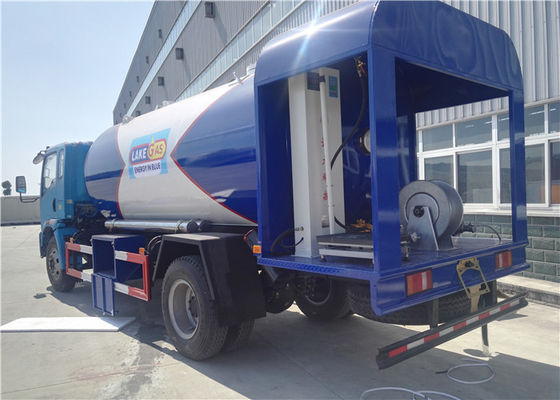

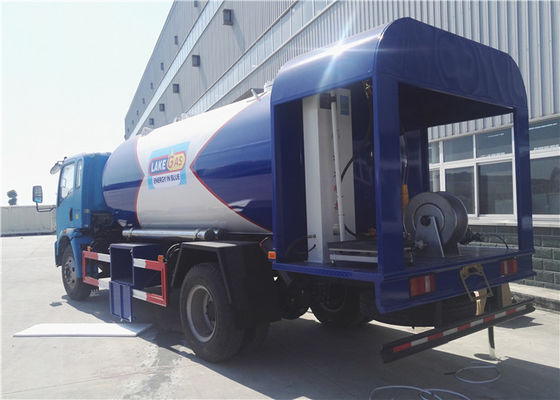

4) Refiling System of lpg bobtail : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box

5) Truck Spec of lpg bobtail : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.

product Specification



Item No. Parameters
Overall Dimension 7600x2300x2980 mm
Driving Model Left hand drive or right hand drive
Gross Vehicle Weight 11460 kg
Curb Weight 6460 kg
Payload 5000 kg
F/R Axle Loading 3200/8000 kg
Wheel Base 4200 mm
Front/rear Tread 1886/1845 mm
Approach/Departure Angle 27/20 degree
Engine Yuchai 4110,YC4E160-33
Engine horsepower 160 HP EUROIII
Displacement 4260mL (Diesel)
Max Driving Speed 95 km/h
Gear Box DC6J65TC,6 forward& 1 reverse
Cabin 2~3 Passenger allowed,with A/C
Tire 8.25R20 (6 pc with 1 spare)
LPG tank
Volume: 8~10cbm
Tank material: Q345R
Tank diameter: 1800mm
Tank thickness: 10mm
End plate 10mm
Tank length: As designed
Gas phase DN50
Liquid Phase DN50 or DN80 for option
Filling gas Propane(LPG)
Design Pressure: 1.61Mpa
Accessory
Level Gauge Manual rotation type,at the rear of tank
Safety Valve 1,DN80
Tool and Valve Box 1
LPG pump 1
LPG Volume Flow Meter 1
Filling Hose 15 meters
Filling Nozzle 1pc,Standard for 12.5kg cylinder
Thermometer 1
Pressure Gauge 1
Emergency Valve 1
Fender Steel
Fire Extinguisher holder 2
Exhaust shaft At the front of truck for safety



Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck 0Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck 1Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck 2

Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck 3Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck 4Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck 5



Sinotruk Howo 4x2 RHD 12000L LPG Transport Truck 6



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



FAQ



Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
