Dongfeng Kingrun 15T Road Cleaning Vacuum Sweeper Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng Kingrun 15T Road Cleaning Vacuum Sweeper Truck

Dongfeng Kingrun 15T Road Cleaning Vacuum Sweeper Truck
Dongfeng Kingrun 15T Road Cleaning Vacuum Sweeper Truck Dongfeng Kingrun 15T Road Cleaning Vacuum Sweeper Truck Dongfeng Kingrun 15T Road Cleaning Vacuum Sweeper Truck Dongfeng Kingrun 15T Road Cleaning Vacuum Sweeper Truck Dongfeng Kingrun 15T Road Cleaning Vacuum Sweeper Truck Dongfeng Kingrun 15T Road Cleaning Vacuum Sweeper Truck

Large Image :  Dongfeng Kingrun 15T Road Cleaning Vacuum Sweeper Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: clw
Certification: CCC,SGS,BV
Model Number: CLW5180TXSD6

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: negotiable
Packaging Details: Naked Package, Roll-Roll, Bulk Shipment,
Delivery Time: 30 days after receiving deposit at account
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 500 Units per month
Detailed Product Description
Truck Brand: Dongfeng Kingrun Garbage Box: 9000L
Water Tank: 7000L Auxiliary Engin: Cummins 170HP
Fan: 5000 ~ 7800m3/h Sweeping Capacity: 48000m2/h
Brush: 2 Numbers Sweeping Width: 2800mm-3200mm
Max Suction Diameter: DN100mm Dumping Angle Of Garbage Box: 45degree
High Light:

15T Vacuum Sweeper Truck

,

Dongfeng Road Cleaning Vacuum Sweeper Truck

,

Dongfeng Kingrun Road Cleaning Truck

Dongfeng Kingrun 15Ton Cleaning Vacuum Sweeper Truck





Product Description



16Ton Dongfeng Kingrun Vacuum Sweeper Truckk



Description



  • Sweeping & Cleaning at same Time

  • 7000L Water Tank

  • 9000L Garbage Tank

  • Dongfeng Kingrun Chasssis

  • 16Ton Overall Weight





You can communicate with Eric by whatsapp:+86 186 0715 8551





Sweeping Mode:

Road Sweeping mode, which only uses the sweeping brush to sweep the road.

Working Flow Chart:

Auxiliary Engine----Hydraulic Oil Pump-----Left & Right Sweeper Disc----Left & Right Sweeping Brushes

Auxiliary Engine--- Fan Working----Dust Tank, Suction Pipe & Sution Nozzle---High Speed Air Flow bring garbage Inside





Washing and Sweeping mode:

Road Sweeping and road cleaning functions are turned on at the same time.



Working Flow Chart:

Auxiliary Engine----Hydraulic Oil Pump-----Left & Right Sweeper Disc----Left & Right Sweeping Brushes

Auxiliary Engine--- Fan Working----Dust Tank, Suction Pipe & Sution Nozzle---High Speed Air Flow bring garbage Inside

Auxiliary Engine---Auto Clutch—High Pressure Water Pump---Delivery Water----Left & Right Cleaning Nozzle





Rear Spraying:

This function is the same as the sprinkler function, mainly used to reduce dust on the road.

There is a spray bar under the trash bin at the rear of the scrubber, and there are multiple spray nozzles on the spray bar. Start the auxiliary engine and high-pressure water pump, turn on the rear spray switch, and start the chassis car to move forward, and then spray dust can be carried out.



Front Flushing:

This function is the same as the sprinkler flushing function, which is mainly used to flush the road surface.

Use the low pressure and large flow of the centrifugal water pump to wash the road surface as a sprinkler.





Specifications of  10Ton Vacuum Road Sweeper Truck





Rear Spraying:

This function is the same as the sprinkler function, mainly used to reduce dust on the road.

There is a spray bar under the trash bin at the rear of the scrubber, and there are multiple spray nozzles on the spray bar. Start the auxiliary engine and high-pressure water pump, turn on the rear spray switch, and start the chassis car to move forward, and then spray dust can be carried out.



Front Flushing:

This function is the same as the sprinkler flushing function, which is mainly used to flush the road surface.

Use the low pressure and large flow of the centrifugal water pump to wash the road surface as a sprinkler.



Product Dongfeng Kingrun Cleaning Sweeper Truck
Model No. CLW5180TXSD6
Chassis Model No.

DFH1180EX8

DAFC

Standard

GB3847-2005, GB17691-2018

Euro 2-Euro6

Engine Truck Engine Engine Model B6.2NS6B210 Cummins
Power(kw) 154
Hp(ps) 210
Displacement (ml) 6200
Deputy Engine Sweeper Engine Model B170 33
Power (kw) 125
HP(ps) 170
Displacement(ml) 5900
Diesel Type Same Type of Diesel as truck
Truck Specification Overall Size mm L 8550* W2480* H3130
Wheel Base(mm) 5000
Tire 275/80R22.5 18PR
Tire Quantity 7(include 1 Spare)
Wheel Track Front(mm) 1876
Rear(mm) 1820
Passenger Allowed 3人
Overhang Front/Rear (mm) 1430/2220
Approaching Angle 17°
Departure Angle 25°
Ground Clearance(mm) 320
Loading Weight(kg) 6870
Truck Weight(kg) 11000
Gross Vehicle Weight (kg) 18000



Sweeping Specification Garbage Box( m3 ) 7,000L Stainless Steel
Water Tank( m3 ) 9,000L Stainless Steel
Sweeping Width (mm) 2800-3200
Sweeping Speed (km/h) 3-15
Truck Speed in cleaning (km/h) 15-20
Sweeping Capacity (m2/h) 48000

Suction

Capacity

Density(g/cm3) 2.0
Weight (kg) 1.5
Max Diameter (mm) ≥100
Garbage Box Dumping Angle ≥45°
Sweeping Efficiency ≥96%
Working Noise(db) < 88 Meet GB7258 Standard



Dust Control System Spraying Type Low Pressure Fog Type
Main Components Imported high pressure pump water filter pipeline stainless steel spray frame high pressure nozzle
High Pressure Water Pump CPX036

Installation

Position

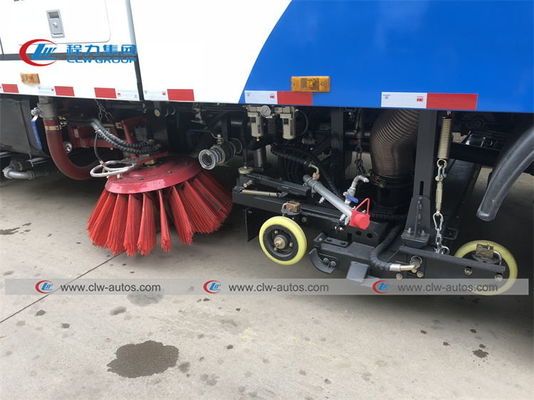

Sweeping Left & Right Sweeper
Suction Suction Pan Inside
Control Type Electronic control, one key operation



Hydraulic System Type Open Type, electric control
Main Components Gear pumps, Cycloid Motors, Hydraulic Cylinders, Solenoid Valves, Manifold Blocks, High-pressure Pumps,
Cycloid Motors Sanyo Motor
Gearbox Changyuan Machine
Hydraulic Cylinder Hi-Pressure(Italian Brand)
Cylinder Sealing DingJi
Hydraulic Oil Pipe Guangzhou Tianhe
Solenoid Valves Hi-Pressure(Italian Brand)
Pressure Gauge IMT (Shock Proof)
Oil Filter Sofima Brand
Hydraulic Pressure 10-12 Mpa
Hydraulic Tank ≥60 L
Electrical System System Chassis & Deputy Engine Electrical System
Chassis Power Voltage (V) 24
Working System Power Voltage(V) 12

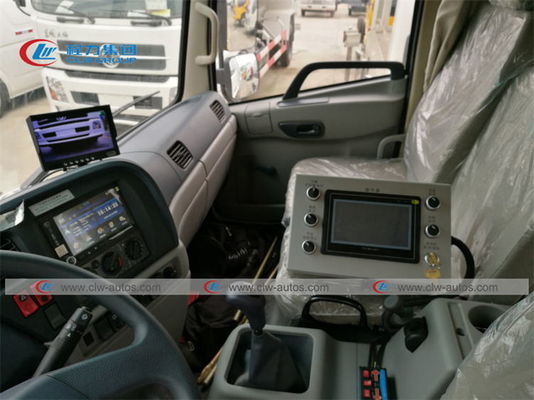

Control Panel Auxiliary engine tachometer, auxiliary engine water temperature gauge, oil temperature alarm device, various operation control switches
Control Switch Schneider Shanghai
PLC BaichaoFu
Braker Higer
Battery 12V-70A.H (2 units in parallel)
Fan System Type High-pressure Centrifugal Fan
Brand Changsha Lianyue
Rated working speed 2700 r/min
Transmission type Auxiliary engine, clutch, high temperature resistant A-belt drive with teeth (4)
Fan Belt Zhejiang Sanshili
Automatic clutch centrifugal type, imported material
Air Volume

5000 ~ 7800 (m3/h)

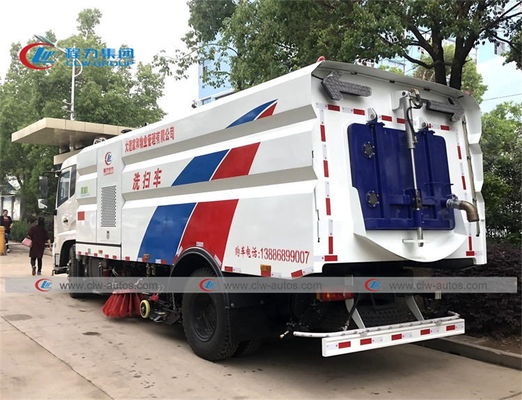

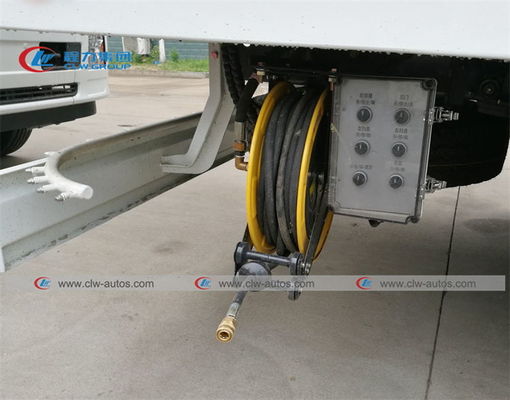

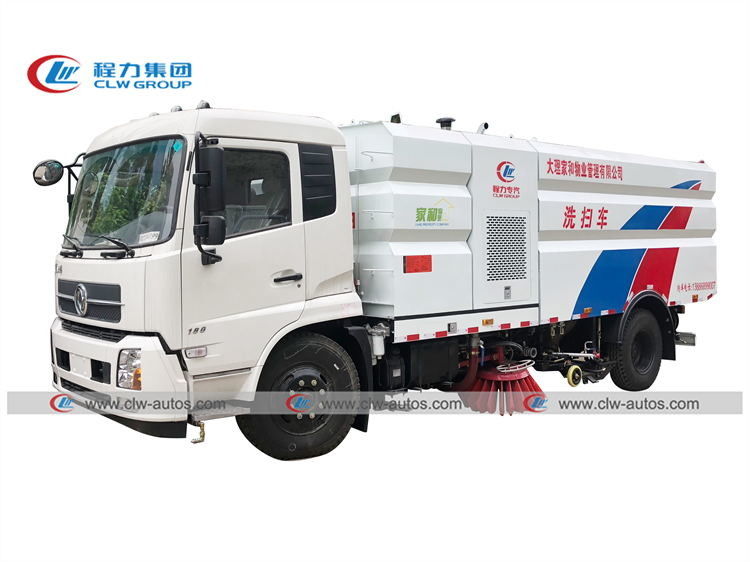

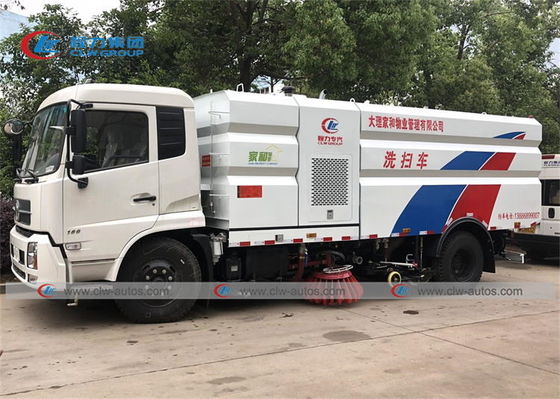

Truck Photos:

Dongfeng Kingrun 15T Road Cleaning Vacuum Sweeper Truck 0Dongfeng Kingrun 15T Road Cleaning Vacuum Sweeper Truck 1Dongfeng Kingrun 15T Road Cleaning Vacuum Sweeper Truck 2



Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of sweeper trucks I can order from your company?


A: There are various sizes of sweeper trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2: Have you supplied sweeper products to any overseas companies?


A: Yes,with need of cleaning cities,we offered sweeper trucks to many Africa and south-east Asian countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
