Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck

Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck
Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck

Large Image :  Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: CCC, ISO9001, BV, SGS
Model Number: CLW20210813

Payment & Shipping Terms:

Minimum Order Quantity: 1 units
Price: Negotiated
Packaging Details: Naked waxed before delivery
Delivery Time: 35-40 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Product Name: Road Sweeper Truck, High Pressure Road Washing Truck Chassis Brand: JMC, DONGFENG, HOWO, FAW Other China Brand
Dustbin Capacity: 5CBM, 5000Liters Body Type: Vacuum Sweeper Sweep Sweeping Suction
Watering Tank: 4CBM, 4000Liters Truck Type: Water Praying Sweeper Tank, Street Cleaning
Drive Type: Right Hand Drive, Left Hand Drive Drive Model: 4X2, 6-Wheeler. 6X4, 10 Wheeler
Clean Water Tank: 4m3, 5m3, 4000liters. 5cbm Specification: 6000L, 8000L, 10000L, Small Sizes
After-sales Service Provided: Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service,Overseas Third-party Support Available Warranty: 1 Year,12 Months
Key Word: Road Sweeper Truck,road/electric Sweeper,road Cleaning Vehicle Application: Street Cleaning,airport,Outdoor,Sweeping The Road
Power: 125 Kw/170 Hp Cleaning Width: 3.4M,1600mm
High Light:

Dongfeng 4x2 Road Cleaning Truck

,

4M3 Watering Tank Road Cleaning Truck

,

5M3 Dust Tank Road Sweeper Truck

Dongfeng 4X2 4M3 Watering Tank 5M3 Dust Tank Road Washing Cleaning Sweeper Truck



Features
1. Four sweeper brush and sucker for sweeping combination with excellent sweeping ability
2. each side of the broom or brush can work at the same time, or work independently on each side
3. cleaning device mechanism is simple and reliable, which is hard to damage;
4. all stainless steel dust bins, water tanks,
5. hydraulic system core components are all imported;
6. cleaning system powered by auxiliary engine, which do not interfere with vehicle power.

Road Sweeper (sweeper truck) is one of the sanitation equipments. It is a new type of high-efficiency sweeping equipment integrating road sweeping, garbage recycling and transportation. It can be widely used in road highways, municipal and airport roads, urban residential areas, parks and other roads. Pavement sweepers not only clean trash, but also dust and purify the air medium on the road, which not only ensures the beauty of the road, maintains the sanitation of the environment, but also maintains the good working conditions of the road surface, and reduces and prevents traffic accidents. The occurrence and further extend the life of the road. It has become a trend to use pavement sweepers for road maintenance in China.

The road sweeper is a special sanitation vehicle equipped with a sweeping brush and other cleaning systems. It is mainly used for sweeping operations in large and medium-sized urban sanitation departments. Road sweepers have greatly liberated the work intensity of sanitation workers, increased work efficiency, and reduced secondary pollution such as dust.



Specification for Road Sweeper ttruck:

SPECIFICATION

Model YZR5080TSLE
Overall dimensions 7100×2210×2700mm Gross Weight (kg) 8275
Wheelbase (mm) 3800 Curb Weight (kg) 6300
Front Track (mm) 1740 Approach Angle 20
Rear Track (mm) 1610 Departure Angle 11
Number of axles 2 Front Overhang (mm) 1130
Traction system 4×2 Rear Overhang (mm) 2170
Max speed (km/h) 103 Number of Tyres 6
Front Axle Load (kg) 3300 Tyre Specification 7.5R16
Rear Axle Load (kg) 4975 Allowable Cab Passengers 2
Paint Any Color Available Fuel Diesel



Water tank volume(cbm) 4cbm Garbage tank volume(cbm) 5cbm
Max.cleaning Width(mm) 3200 Maximum Sweeping Capacity(cbm/h) 90000
Sweep Speed (km/h) 3-25 Sweeping Efficiency 95%



Detailed Images

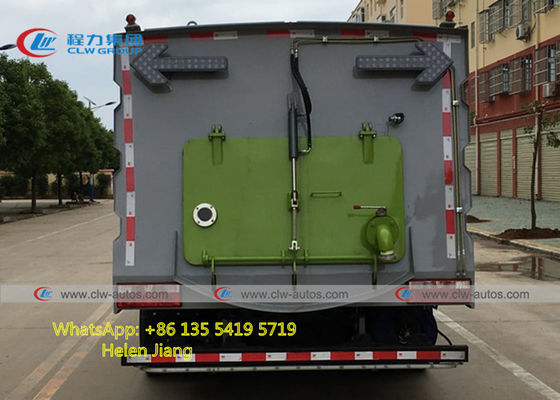

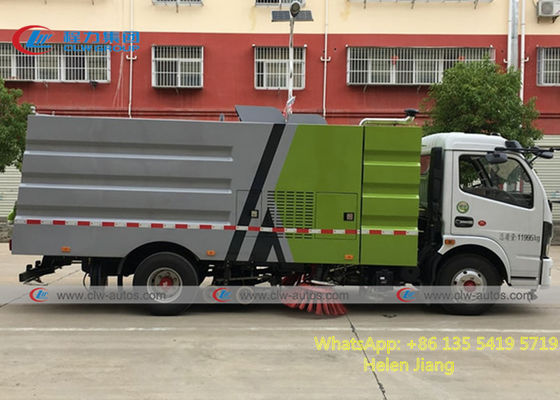

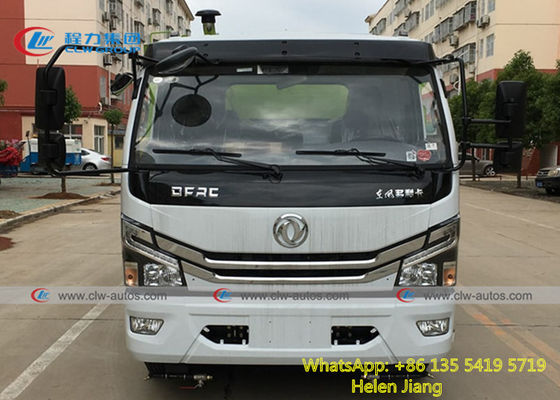

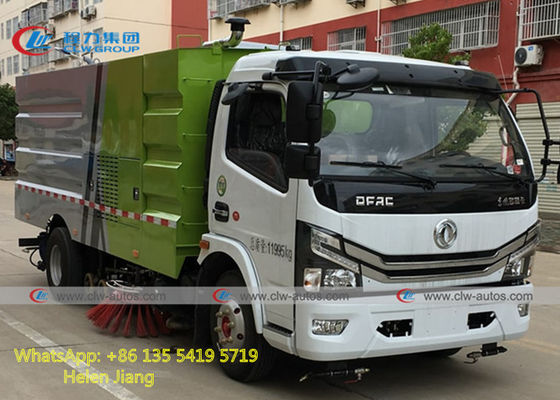

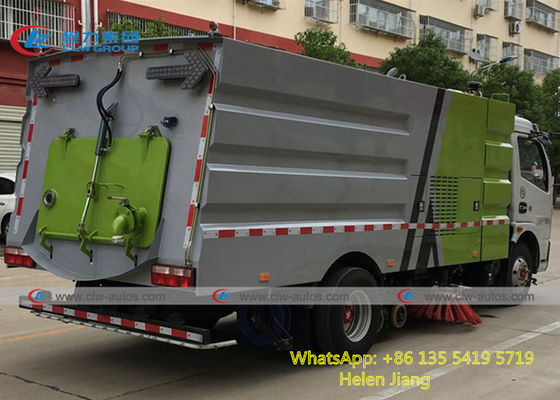

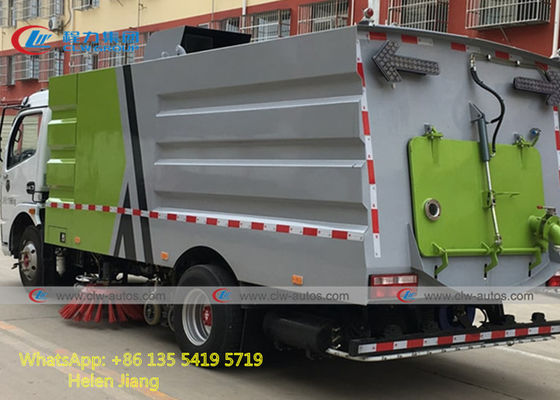

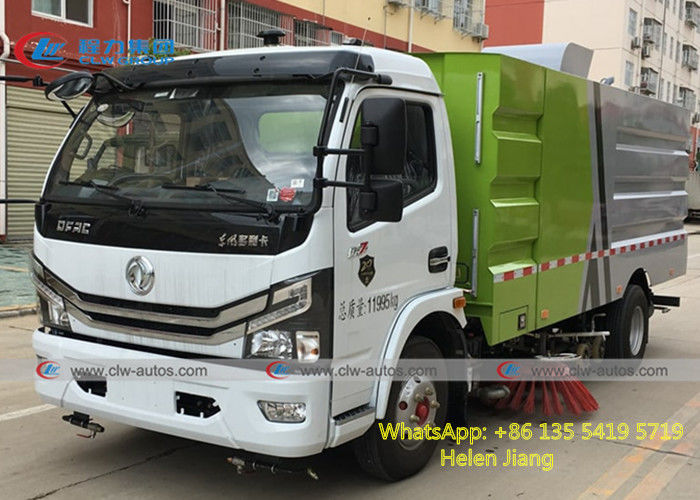

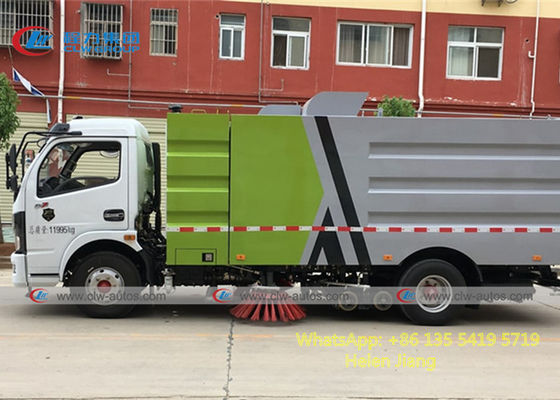

More pictures for Road Washing Street Cleaning Sweeper:

Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck 0Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck 1Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck 2Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck 3

Dongfeng 4x2 4M3 Watering Tank 5M3 Dust Tank Road Cleaning Truck 4



ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

  • Certificate: ASM, ISO, BV, SGS, CCC etc.
  • 12 independents workshops.
  • 1000 sets of equipment, 25 assemble lines.
  • 300 senior engineers and technicians. About 8000 workers.
  • 800kinds of LPG, trucks and semi-trailers.
  • 20 years wholesale experience
  • Turnover 250 million and Export 20million annually
  • Turnover 2 billion trucks and semi-trailers annually.
  • LPG/Truck Sold to 90 countries
  • Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
