Product Name: | Street Cleaning Truck, Vacuum Dust Suction Truck | Truck Chassis Brand: | JMC, DONGFENG, HOWO, FAW Other China Brand |
---|---|---|---|
Dustbin Capacity: | 8CBM, 8000Liters, 8M3, 8 Cubic Meters | Body Type: | Vacuum Dust Sweeping Suction Truck |
Watering Tank: | 2.5CBM, 2500Liters, | Truck Type: | Water Praying Dust Tank, Street Cleaning |
Drive Type: | Right Hand Drive, Left Hand Drive | Drive Model: | 4X2, 6-Wheeler. 6X4, 10 Wheeler |
Clean Water Tank: | 2.5m3, 5m3, 2500liters. 5cbm | Specification: | 6000L, 8000L, 10000L, Small Sizes |
After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service,Overseas Third-party Support Available | Warranty: | 1 Year,12 Months |
Key Word: | Dust Cleaning Truck,road/electric Sweeping,road Cleaning Vehicle | Application: | Street Cleaning,airport,Outdoor, Cleaning The Road |
Power: | 125 Kw/170 Hp | Cleaning Width: | 3.4M,1600mm |
High Light: | 10CBM Vacuum Road Sweeper Truck,Dongfeng 4x2 Vacuum Road Sweeper Truck,Dongfeng 4x2 Street Sweeper Truck |
Dongfeng 4X2 10M3 10CBM Street Cleaning Vacuum Dust Suction Sweeping Truck
Product Advantages
1. Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
2. The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
3. With efficient filtration system.
4. Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
5. Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.
6. Certification: ASM, ISO, BV, SGS, CCC etc.
Features:
1. We can supply all brands of special trucks, such as Dongfeng, ISUZU, Sinotruck, Foton, Faw, north Benz(beiben), JAC, JMC, etc.
2. The drive type could be 4X2, 4X4, 6X4, 6X6, 8X4.
3. Certification: ASM, ISO, BV, SGS, CCC etc.
4. Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
5. The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
6. With efficient filtration system.
7. Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
8. Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.
Specification for Road Sweeper ttruck:
Vacuum Dust Suction Truck | ||
General | Vehicle Brand | CLW |
Chassis Brand | Dongfeng | |
Overall Dimension | 8190*2490*3100mm | |
GVW / Kerb Weight | 16,895kg / 7,965kg | |
Cab | Cab Capacity | 2 persons allowed |
Air Conditioner | Air conditioner is optional | |
Engine | Fuel Type | Diesel |
Power | 190 HP | |
Emission Standard | Euro III / IV / V | |
Chassis | Drive Type | 4X2, left hand drive |
Transmission | 5-speed front, 1 reverse | |
Wheelbase/No. of axle | 4700 mm / 2 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 95 km/h | |
Paint | Metallic paint | |
Superstructure | Water Tank | Stainless Steel |
Dustbin Capacity | 8,000 Litres | |
Dustbin Material | Stainless Steel | |
Water Tank Capacity | 2,500 Litres (About 500 gallons) | |
Sweeping Capacity | 56,000 m2/h | |
Sweeping Speed | 3-15 km/h | |
Max Sweeping Width | 2800-3500mm | |
Brooms | Opcional | |
All standard accessories: Warning lights, music alarm, basic tool kit, English manual... |

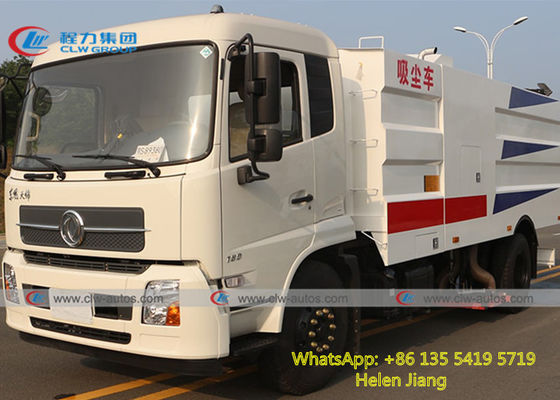

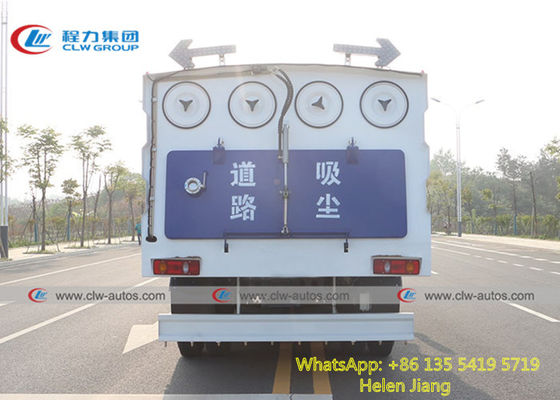

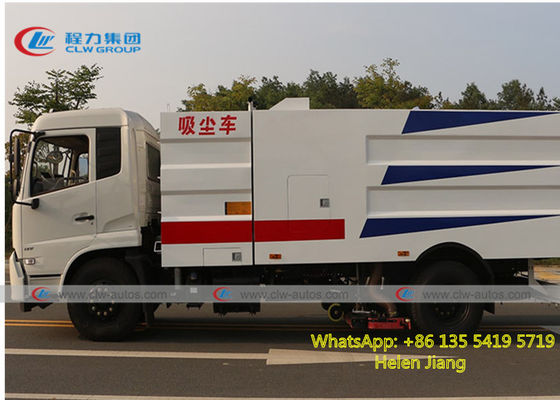

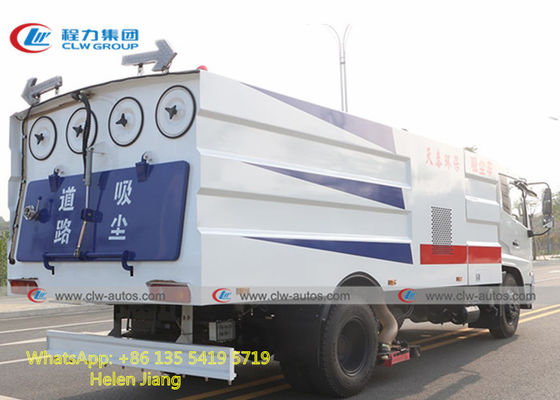

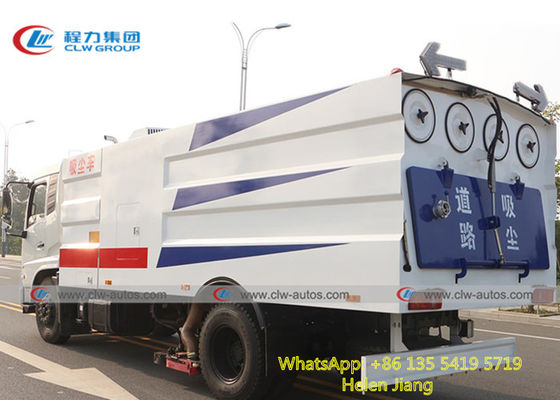

More pictures for Vacuum Dust Suction Truck Street cleaning Truck:
The detailed pictures of Suction cup system:
The working pictures of Vacuum Dust Suction Truck, Street Cleaning Truck:
ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
