Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck

Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck
Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck

Large Image :  Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO,BV,SGS
Model Number: CLW5087GYK

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked packing, Ro-ro, Bulk Ship
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Detailed Product Description
Chassis Brand: Dongfeng, Foton, Sinotruk HOWO, Isuzu, Etc. Drive Model: Right Hand Drive & Left Hand Drive
Fuel Type: Diesel Engine Engine Power: 245HP
Gearbox: 10 Forwards & 2 Reverse Tank Material: 5mm Carbon Steel
Tank Size: 15cbm, 16cbm, 18cbm, 20cbm, 22cbm, 24cbm, Etc. Vacuum Pump: Chinese Brand, Italy Brand Or Other Popular Brand
Sewage Suction Pipe: 5mm ~ 8mm Suction Time: <5min
Effective Suction Range: >8m Logo And Pattern: As Customer's Request
Delivery Time: 30-35 Working Days Warranty: 1 Year
High Light:

20cbm Vacuum Sewage Suction Truck

,

18cbm Vacuum Sewage Suction Truck

,

Sinotruk HOWO 6x4 Vacuum Suction Truck

Sinotruk HOWO 6*4 15cbm16cbm18cbm20cbm Sewage Vacuum Suction Truck









Product Description
1. Chassis:
1)
Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with
DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body:From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.


Product Specification

Technical Parameters
Overview
Name Sewage Suction Truck
Dimension(LxWxH) 9950X2490X3350(mm)
Total Mass 29005 Kg
Rated Payload 20000 Kg
Kerb Weight 9005 Kg
Passenger 3
Approach/Departure Angle 32/14
The Parameters of Chassis
Manufacture Howo
Driving Type 6*4 left/right hand drive
Wheel Base 4300+1350 mm
Gearbox Seven/Eight speed lever with six/seven speed forward and one reverse, manual
Front/Rear Track 1940/1860/1860(mm)
Tyre 10.00-20
The Number of Tyre 10+1(spare tyre)
Front/Rear Suspension 1245/3055,1245/3005(mm)
Leaf Spring Number 8/13,8/12
The Paremeters of Engine
Rated Power 210hp/155kw
Fuel Type Diesel oil
Displacement/Capacity 5900ml
Emission Standard Euro3
Cylinder Straight/6/intercooling
Max. torque 700N.m
Velocity 2500rpm

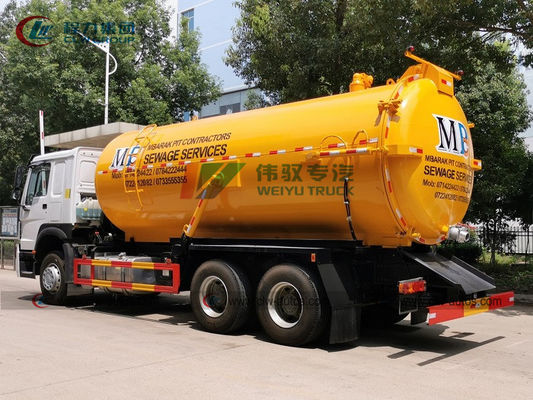

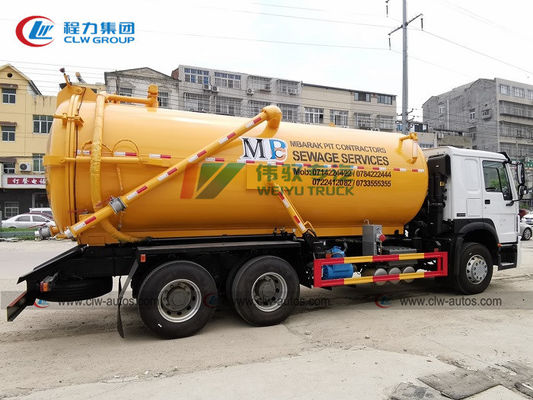

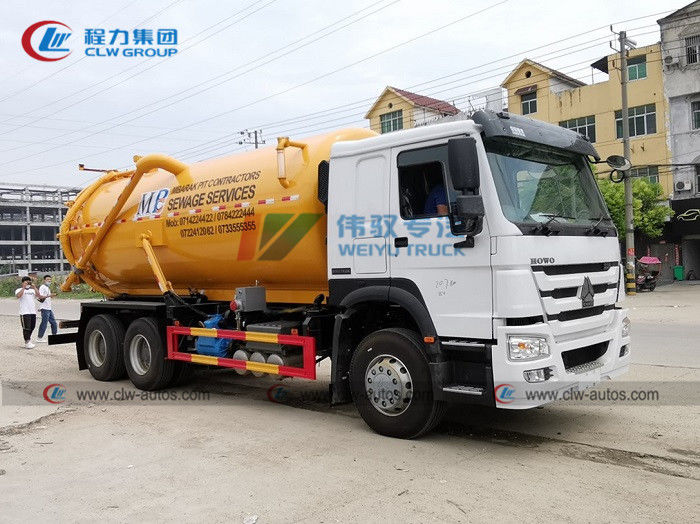

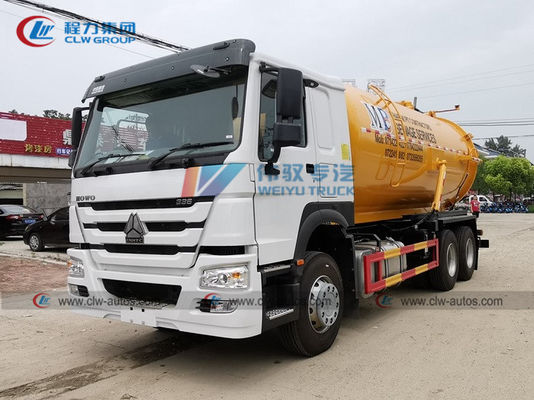

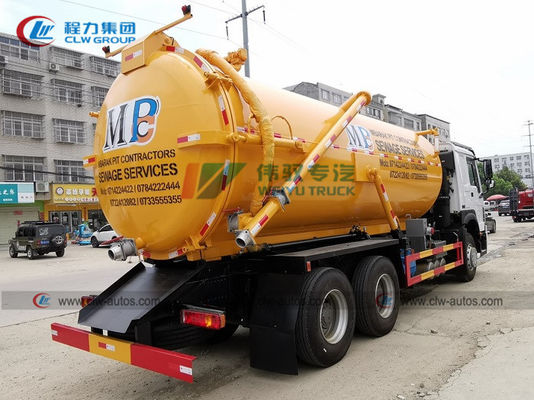

Reference Photos
Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck 0

Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck 1

Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck 2

Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck 3

Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck 4



We provide package solution and customized drawding for every sewage vacuum suction truck

Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck 5

Working Scene

Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck 6

Sinotruk HOWO 6x4 15cbm 16cbm 18cbm 20cbm Vacuum Sewage Suction Truck 7


After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details: +86 13971508969.



FAQ

Q1: What size sewage suction tank we can get from your company?

A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.


Q2: Have you supplied sewage suction truck to any overseas companies?
A: Yes, we have supplied fire trucks to African, south-east Asian, south-American and other more than 80 countries and regions.

Q3: Can we adopts International brand parts or accessories for fire truck?
A: Sure, we already cooperated with many international brand suppliers.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
