SINOTRUK HOWO 6x4 371HP 15000L Sewage Suction Truck

I'm Online Chat Now

SINOTRUK HOWO 6x4 371HP 15000L Sewage Suction Truck

SINOTRUK HOWO 6x4 371HP 15000L Sewage Suction Truck
SINOTRUK HOWO 6x4 371HP 15000L Sewage Suction Truck

Large Image :  SINOTRUK HOWO 6x4 371HP 15000L Sewage Suction Truck

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO,BV,SGS
Model Number: CLW5123

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked packing, Ro-ro, Bulk Ship
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Detailed Product Description
Chassis Brand: Sinotruk HOWO, Dongfeng, Foton, Isuzu, Etc. Drive Model: Right Hand Drive & Left Hand Drive
Wheelbase: 3800+1350 Mm Engine Power: 371HP
Tank Capacity: 15cbm 15m3 15cubic Meter 15000liters 15t 15ton Tank Material: 6mm Carbon Steel
Vacuum Pump: Famous International Brand Sewage Suction Pipe: 8m
Suction Time: No More Than 5mins Effective Suction: No Less Than 8m
Logo And Pattern: As Customer's Request Delivery Time: 30 Working Days
Warranty: 1 Year
High Light:

15000L Sewage Suction Truck


371HP Sewage Suction Truck


SINOTRUK HOWO 6x4 Sewer Suction Truck

SINOTRUK HOWO 6x4 371hp 15000Liters sewage suction truck vacuum sewer suction tanker truck


A vacuum truck or vacuum tanker is a tank truck that has a pump and a tank. The pump is designed to pneumatically suck liquids, sludges, slurries, or the like from a location (often underground) into the tank of the truck. The objective is to enable transport of the liquid material via road to another location. Vacuum trucks transport the collected material to a treatment or disposal site, for example a sewage treatment plant.

A common material to be transport is septage (or more broadly: fecal sludge) which is human excreta mixed with water, e.g. from septic tanks and pit latrines. They also transport sewage sludge, industrial liquids, or slurries from animal waste from livestock facilities with pens.

Vacuum trucks can be equipped with a high pressure pump if they are used to clean out sewers from sand.

1. Equipped with special vacuum pump,equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment,time for full sucktion<5min

2. The sewage suction truck special section, taking the force transmission device by rotary vane pumps, vacuum pump ,(with domestic leading technology big suction) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.

3. The Sewage suction truck oblique liquid, can suck full alarm device after full automatic alarm, prevent sewage spills of vacuum pump caused damage,optional choose carbon steel, stainless steel, epoxy resin anticorrosive processing (rounded pot), may do anticorrosive processing, extracting partial chemical sewage and waste water.


Vehicle name SINOTRUK HOWO 6x4 371hp 15000Liters vacuum sewage suction truck
Cabin HW76 Cabin, with two seats and one bed, with Air Conditioner and electric window.

Model WD615.47
Horse Power (Hp/rpm) 371/2200, Euro II Emission Standard
Max.Toruqe(Nm/rpm) 1460/1100-1500
Displacement L 9.726
Type 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine
Transmission HW19710, 10 speeds forward and 2 speeds reverse.
Front Axle HF9, Steering with double T-cross section beam, Loading Capacity: 9,000kgs
Driving Axle HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio:4.8. Option: 4.42
Suspension Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
Steering System ZF8118, Hydraulic steering with power assistance
Brake System Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
Tire 12.00R20
Fuel Tank Capacity (L) 400L Diesel Tank
Kurb Weight (kg) 12,500
Loading Capacity (kg) 15,500
Overall Dimension(L*W*H)(mm) 8950*2550*3250
Tank Capacity(L) 15,000
Tank Material Carbon Steel
Nos of Compartment 1
Vacuum Pump Model Jurop PN106D
Max Air Flow 11000L/min
Time to suction full tank 12-15 mins
Suction Depth 8m
Accessories With Hydraulic Tank Hoist Lift System, Hydraulic Rear Tank Cover Opener, Suction Hose, Discharge Hose, Quick Release Connections (Male&Female)
Wheelbase(mm) 3800+1350
Max. Speed (km/h) 80

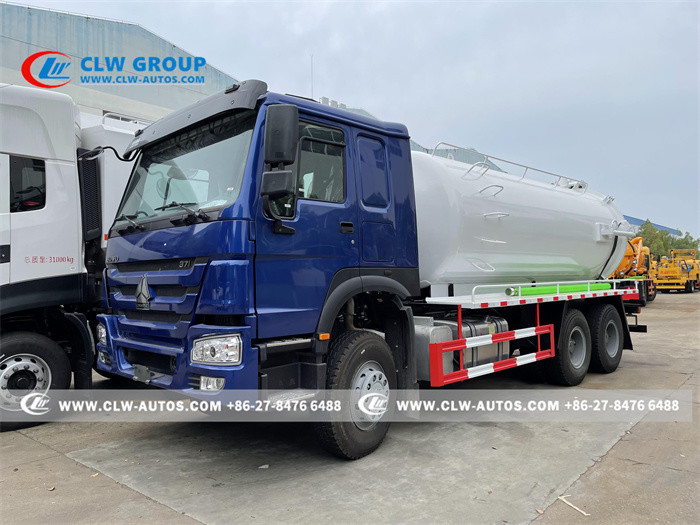

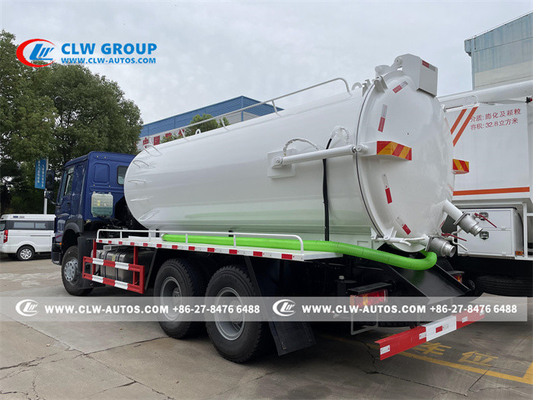

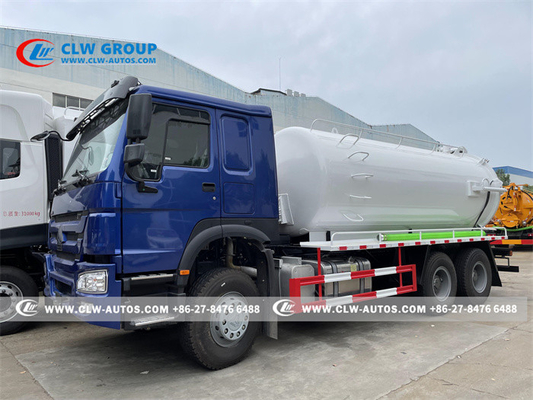

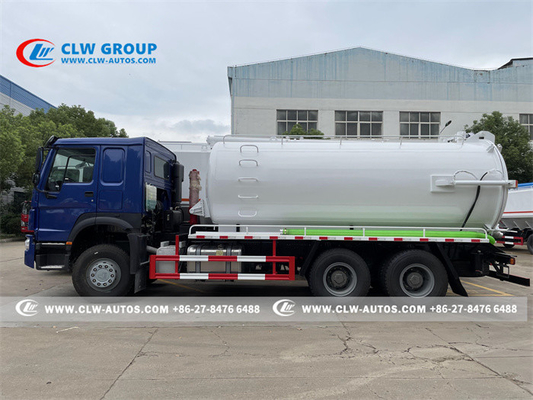

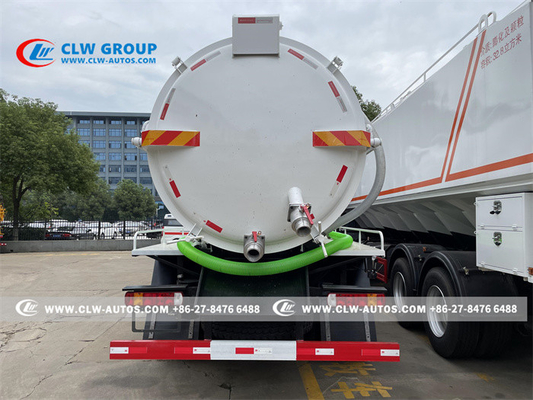

Reference Photos

SINOTRUK HOWO 6x4 371HP 15000L Sewage Suction Truck 0SINOTRUK HOWO 6x4 371HP 15000L Sewage Suction Truck 1SINOTRUK HOWO 6x4 371HP 15000L Sewage Suction Truck 2


Structure Diagram
SINOTRUK HOWO 6x4 371HP 15000L Sewage Suction Truck 3

SINOTRUK HOWO 6x4 371HP 15000L Sewage Suction Truck 4

Working Scene

SINOTRUK HOWO 6x4 371HP 15000L Sewage Suction Truck 5

SINOTRUK HOWO 6x4 371HP 15000L Sewage Suction Truck 6



Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.





1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.


Spare Parts


1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.




Land transportation or Ship by bulk cargo ship, container, roro ship




Q1: What size Sewage Suction tank we can get from your company?

A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.


Q2: Can we adopts International brand sewage pump for sewage suction truck?

A: Sure, we already cooperated with Italy Jourp and a Germany brand.


Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
