ASM Dongfeng High Pressure Vacuum Road Sweeper Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

ASM Dongfeng High Pressure Vacuum Road Sweeper Truck

ASM Dongfeng High Pressure Vacuum Road Sweeper Truck
ASM Dongfeng High Pressure Vacuum Road Sweeper Truck ASM Dongfeng High Pressure Vacuum Road Sweeper Truck ASM Dongfeng High Pressure Vacuum Road Sweeper Truck ASM Dongfeng High Pressure Vacuum Road Sweeper Truck ASM Dongfeng High Pressure Vacuum Road Sweeper Truck ASM Dongfeng High Pressure Vacuum Road Sweeper Truck

Large Image :  ASM Dongfeng High Pressure Vacuum Road Sweeper Truck

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: CCC, ISO9001, BV, SGS
Model Number: CLW20210817

Payment & Shipping Terms:

Minimum Order Quantity: 1 units
Price: Negotiated
Packaging Details: Naked waxed before delivery
Delivery Time: 35-40 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Product Name: Street Cleaning Truck, Road Washing Sweeping Truck Truck Chassis Brand: JMC, DONGFENG, HOWO, FAW Other China Brand
Dustbin Capacity: 10CBM, 10000Liters, 10M3, 10 Cubic Meters Body Type: Vacuum Dust Sweeping Suction Truck
Watering Tank: 2.5CBM, 2500Liters, Truck Type: Water Praying Dust Tank, Street Cleaning
Drive Type: Right Hand Drive, Left Hand Drive Drive Model: 4X2, 6-Wheeler. 6X4, 10 Wheeler
Clean Water Tank: 2.5m3, 5m3, 2500liters. 5cbm Specification: 6000L, 8000L, 10000L, Small Sizes
After-sales Service Provided: Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service,Overseas Third-party Support Available Warranty: 1 Year,12 Months
Key Word: Dust Cleaning Truck,road/electric Sweeping,road Cleaning Vehicle Application: Street Cleaning,airport,Outdoor, Cleaning The Road
Power: 125 Kw/170 Hp Cleaning Width: 3.4M,1600mm
High Light:

ASM Vacuum Road Sweeper Truck

,

Dongfeng High Pressure Road Sweeper Truck

,

Dongfeng Street Cleaning Truck

 Dongfeng High Pressure Road Washing & Sweeper Truck/Vacuum Road Sweeper Truck/Street Cleaning Truck





Product Advantages
1. Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
2. The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
3. With efficient filtration system.
4. Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
5. Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.
6.
Certification: ASM, ISO, BV, SGS, CCC etc.



Features:

1. We can supply all brands of special trucks, such as Dongfeng, ISUZU, Sinotruck, Foton, Faw, north Benz(beiben), JAC, JMC, etc.
2. The drive type could be 4X2, 4X4, 6X4, 6X6, 8X4.
3. Certification: ASM, ISO, BV, SGS, CCC etc.
4. Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
5. The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
6. With efficient filtration system.
7. Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
8. Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.



Specification for Road Sweeper ttruck:



Description Specification
Automotive chassis Model,categoryand manufacturer of chassis DFL1160BX4
Model and manufacturer of engine CUMMINS 190HP
Rated power of engine 141kW/2600r/min
Tire Front wheel 9.00R20 steel wire tire
Rear wheel 9.00R20 steel wire tire
Fuel type

Diesel meeting the discharge requirements in the fifth stage,

select an appropriate diesel grade according to the temperature

Auxiliary engine Standard configuration Model and manufacturer

EQ6BT5.9 or

QSB5.9-C160-30(Standard ChinaⅢ)

Power 118kw/2500r/min;120kw/2200r/min
Clutch Single plate, dry type and diaphragm spring
Fan Type Special high-pressure centrifugal fan
Mode of transmission Narrow V belt drive
Hydraulic system Type Open type, EHC and centralized control
Main elements Gear pump, gerotor motor, hydraulic cylinder, solenoid valve, integrated package, etc.
Overflow pressure 14MPa
Hydraulic oil capacity 60L
Electrical system Control mode PLC control + manual control, voice alarm, electromechanical liquid interlocking, etc.
Chassis system voltage 24V
Working device system voltage 12V
Model of storage battery Chassis: 12V-70A.H (2 pieces connected in parallel)
High-pressure cleaning system High-pressure water pump Type Plunger type
Model Italian Pratissoli KEB36R
Rated pressure 10MPa
System working pressure 9MPa
Rated flow 80L/min
Rated speed 1150r/min
Water valve and control Type of water valve High-pressure stainless steel ball valve, 10MPa
Control mode Oil cylinder drive, electrical control
Type of nozzle of water spray rod High-pressure washing type
Dust falling system of sweeping plate Electric water pump and watering nozzle; water filter and water tank shared with the high-pressure cleaning system

Sweeping system
Type Two vertical sweeping plates are symmetrically arranged between the front shaft and the rear shaft of the chassis and on both sides of the frame, which are driven by a hydraulic motor. The revolving speed of sweeping plate is adjustable. The left and right vertical sweepers can be independently lifted.
Diameter of sweeper Φ850mm
Speed of sweeping plate High gear (normal operation gear): 110r/min; intermediate gear: 80r/min; low gear: 60r/min
Adjustment to dip angle of sweeping plate Front inclination: 4°-6°; outward inclination: 2°-4°
Suction nozzle Type Double suction ports, built-in long spray lance with a high-pressure nozzle, the body of suction nozzle moves with the pavement. Lifting of the suction nozzle is controlled by the oil cylinder. A spring is used for floating suspension.
Diameter of sucker Φ180mm
Ground clearance of suction nozzle during working 5~10mm
Left & right spray lance Pendulum angle of spray lance 65°
Nozzle ground clearance 340mm
Total number of nozzles 8pcs

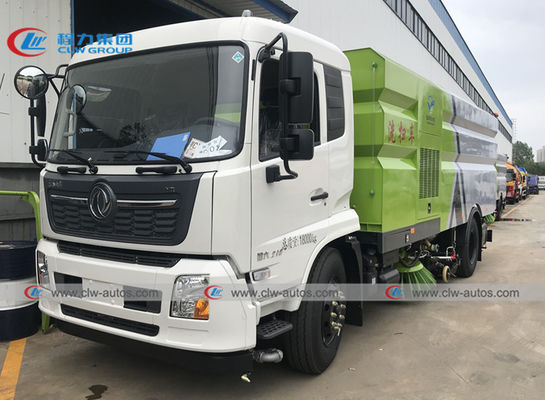

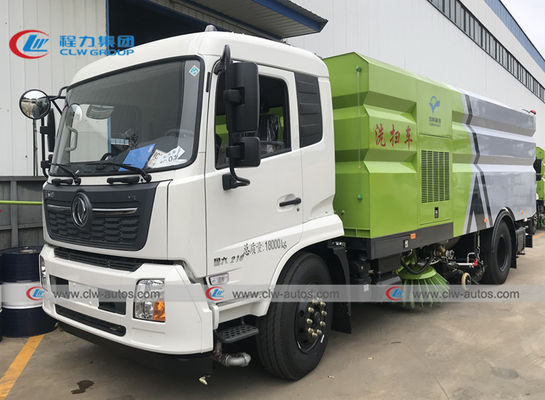

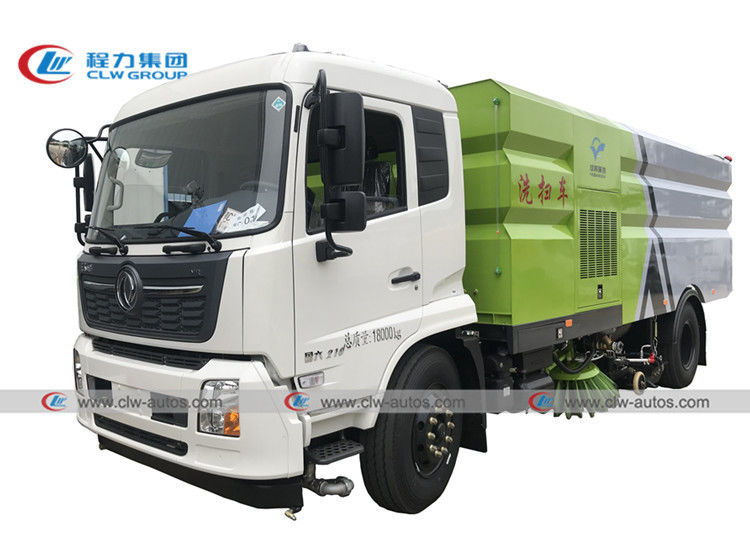

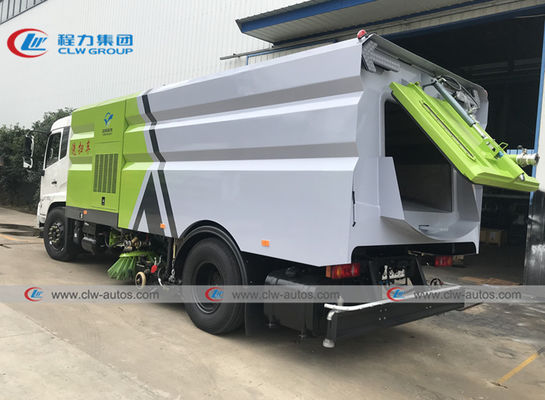

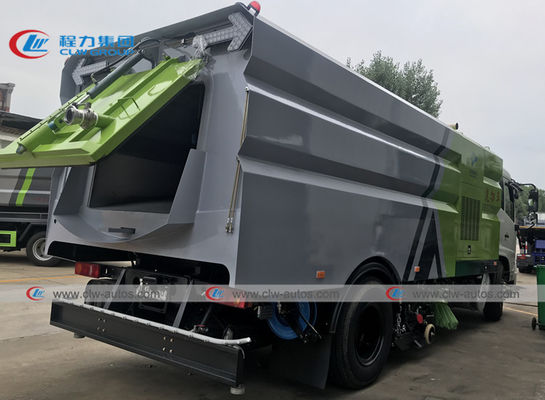

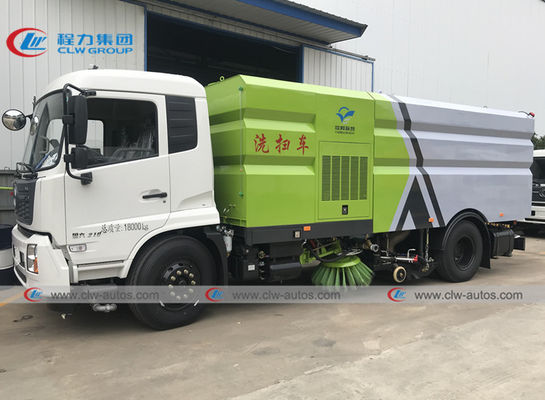

Detailed Images



More pictures for Vacuum Dust Suction Truck Street cleaning Truck:



ASM Dongfeng High Pressure Vacuum Road Sweeper Truck 0ASM Dongfeng High Pressure Vacuum Road Sweeper Truck 1ASM Dongfeng High Pressure Vacuum Road Sweeper Truck 2ASM Dongfeng High Pressure Vacuum Road Sweeper Truck 3ASM Dongfeng High Pressure Vacuum Road Sweeper Truck 4



ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

  • Certificate: ASM, ISO, BV, SGS, CCC etc.
  • 12 independents workshops.
  • 1000 sets of equipment, 25 assemble lines.
  • 300 senior engineers and technicians. About 8000 workers.
  • 800kinds of LPG, trucks and semi-trailers.
  • 20 years wholesale experience
  • Turnover 250 million and Export 20million annually
  • Turnover 2 billion trucks and semi-trailers annually.
  • LPG/Truck Sold to 90 countries
  • Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
