Product Details:
Payment & Shipping Terms:
|
| Material: | Q345R,Q370R,Q420R | Standard: | GB150-2011,GB/T19905-2005,ASME VIII Section II |
|---|---|---|---|
| Tank Capacity: | 17MT,18TON,17.5t,18.5tons | Tank Size: | 35cbm, 35000liters, 35500litres |
| Tire: | 10R22.5,10 Pcs With One Spare | Thickness: | 10mm For Tank And 12mm For Endplate |

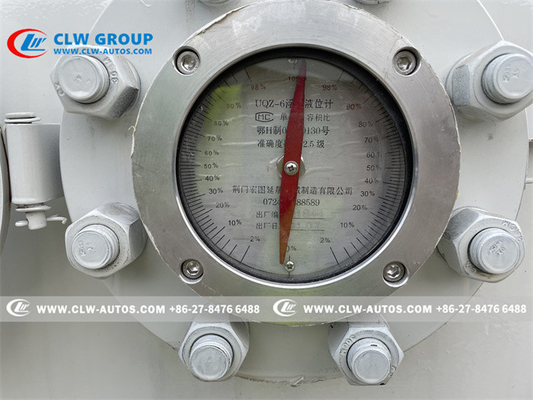

| Level Gauge: | Manual Rotator Or Rochester Floatball | Color: | White ,red, Customized |
| High Light: | Sinotruk Howo LPG Delivery Truck,8x4 LPG Delivery Truck,35.5cbm LPG Bobtail Truck |
||
Sinotruk HOWO 8X4 35500liters 35.5cbm LPG Tanker Bobtail Truck LPG delivery truck with flow meter for filling cylinders
Product Description
1) lpg delivery truck is used to transport or deliver lpg or liquid petroleum gas mobile and supply lpg to lpg stations.We can supply lpg bobtail truck from 2ton to 18ton.
2) Manufacturing standards of lpg delivery truck: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
3) Optional accessories of plpg delivery truck: ROCHESTER level gauge,flow meter,sunshelter
4) optional equipment oflpg delivery truck:flow meter or computer controled filling machine,chinese lpg pump or corken,blackmer pump.
5). HOWO Truck: 371HP WP Engine, 9 Forward & 1 Reverse Gear, 7 Ton Front Axle & 16*2 Ton Rear Axle.
6). Tank Design: Horizontal cylinder Type, Bullet Tank, with elliptical or hemisphercial dish end.
7). Tank Test: 100% Radio Radiographic Test, Magnetic Power Test, Water Pressure Test, Air Tightness Test.
8). Dispensing System: 2" Hyrdaulic Truck Pump, 2" Flow Meter, 15meters Hose Reel for commercial Fillings.
Specifications
| Item No. | Parameters | |||
| Overall Dimension | 11700*2495*3690 (mm) | |||
| Gross Vehicle Weight | 31000kg | |||
| Curb Weight | 14910kg | |||
| Wheel Base | 1900+4500+1350mm | |||
| Cabin | Right Hand Driving, 3 Passengers Allowed, with Air Conditioner | |||
| Engine | WD615.47 Diesel Engine, 6 Cylinder in line. Four Stroke, water-cooling, supercharged and mid-cooling,Direct injection | |||
| Engine horsepower | 371 HP Euro II | |||
| Max Driving Speed | 90 km/h | |||
| Gear Box | 10 Forward Gear & 2 Reverse Gear | |||
| Tire | 12R22.5 Tubeless Tire (12 pieces with one spare) | |||
| Tank Capacity | 35.5 CBM / 35,500 Liters | |||
| Filling Weight | 15895kg | |||
| Filling Content | Liquefied Petroleum Gas (Propane) | |||
| Tank Material | Q345R, 10mm Thickness for Tank Body & 12mmm for End plate. | |||
| Standard Equipment | 1 Safety Valves,1 Ball floating Level Gauge, 1 Pressure Gauge, 1 Thermometer, 2 Emergency Shut-off Valve, 1 Tool Boxes, Anti-static Grounding Tape, with 1 valve boxes, |
|||
| Specification | Designed Pressure: 1.61Mpa / 16.1 Bar Hydraulic Test Pressure: 2.21 Mpa / 22.1 Bar Air Tightness Pressure: 1.61Mpa / 16.1Bar Medium Density: 500-590 kg/m3 Working Temperature: under 50 centi-degree Corrosion Allowance: 1mm |
|||
| Filling System |
|
|||

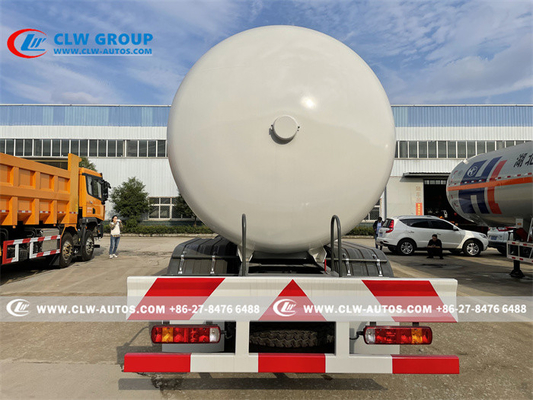

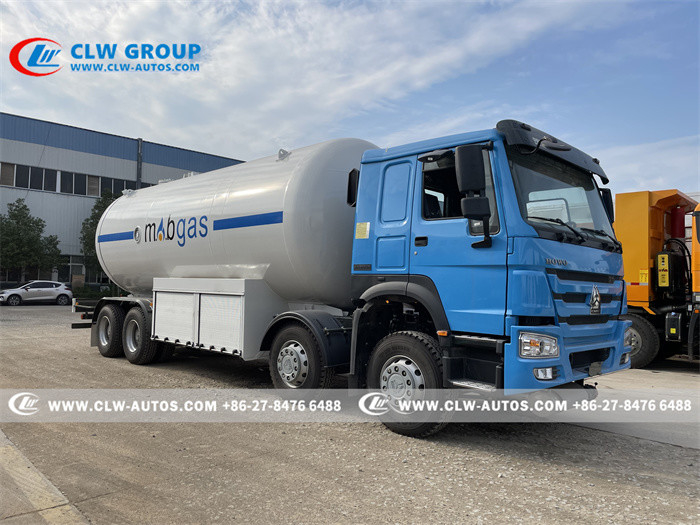

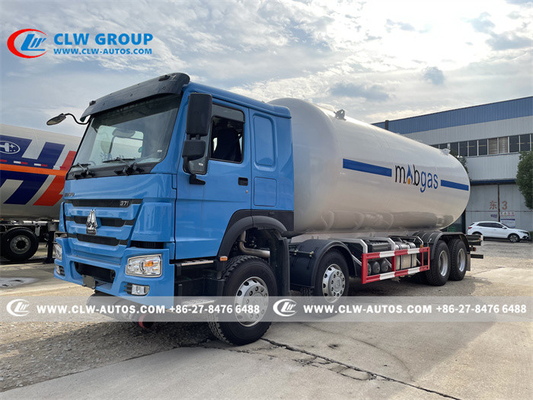

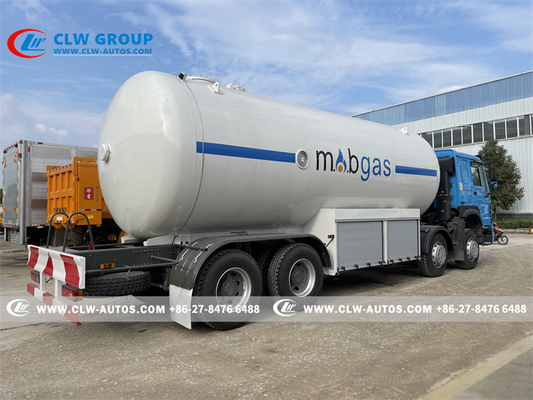

Reference photos
Dispenser way
Factory overview
ChengLi Special Automobile Co., Ltd, belongs to The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery. Our company has independent export authority, with good technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation, we have attracted a lot of customer from all over the world.
More than 10 years' experience as a manufacturer
CCC, ISO, BV, ASME certification
Perfect after-sale service
Trucks covering more than 50 countries and regions
800 kinds of trucks and trailers
100 Senior welder and 15 senior engineers
Good cooperation with 30% regular customers
Annual production value topped 240,000,000 US dollars per year
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor head
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Heavy duty wrecker tow truck/ flatbed tow truck
16. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
