Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Foton, Sinotruk HOWO, Isuzu, Etc. | Drive Model: | Right Hand Drive & Left Hand Drive |
|---|---|---|---|
| Wheelbase: | 2800mm | Engine Power: | 90HP |
| Water Tank Capacity: | 3cbm 3m3 3cubic Meter 3000liters 3t | Fecal Tank Capacity: | 3cbm 3m3 3cubic Meter 3000liters 3t |
| Tank Material: | 5mm Carbon Steel | Vacuum Pump: | Famous International Brand |
| Fecal Suction Pipe: | 6m | Suction Time: | No More Than 3mins |
| Effective Suction Range: | No Less Than 7m | Logo And Pattern: | As Customer's Request |
| Warranty: | 1 Year | ||
| High Light: | 3000L Vacuum Sewage Suction Truck,Dongfeng Furuica Vacuum Sewage Suction Truck,Dongfeng Furuica Vacuum Sewer Truck |
||

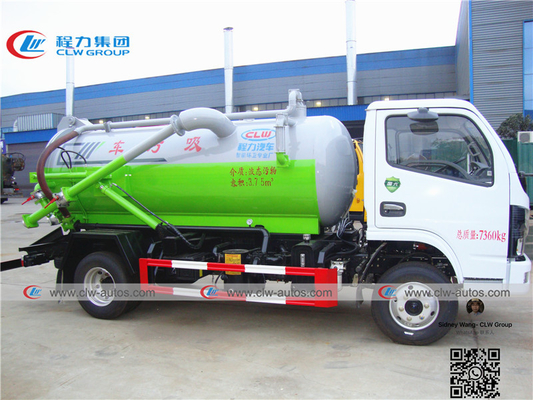

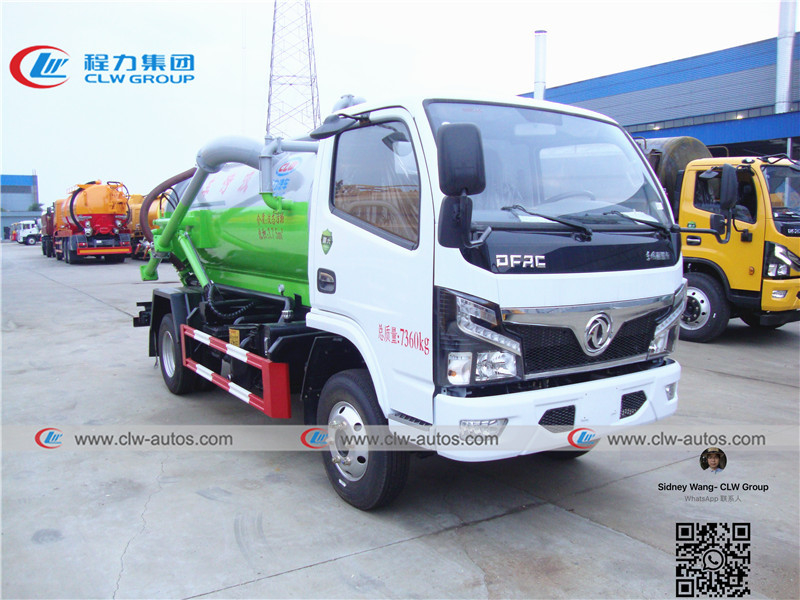

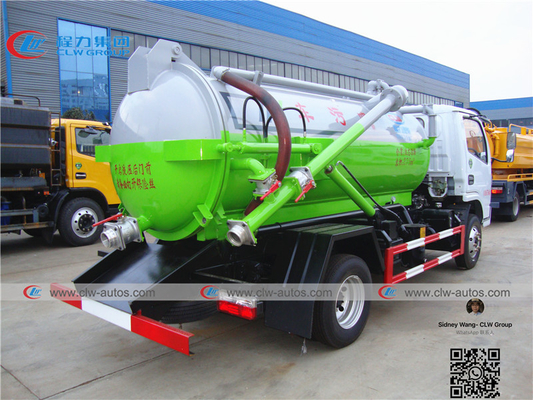

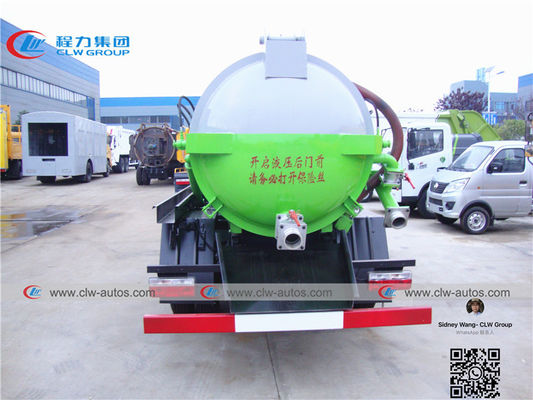

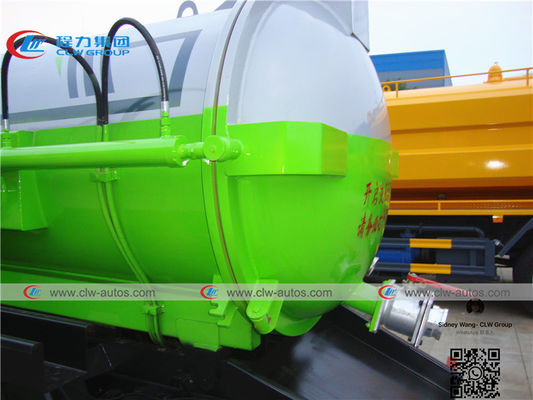

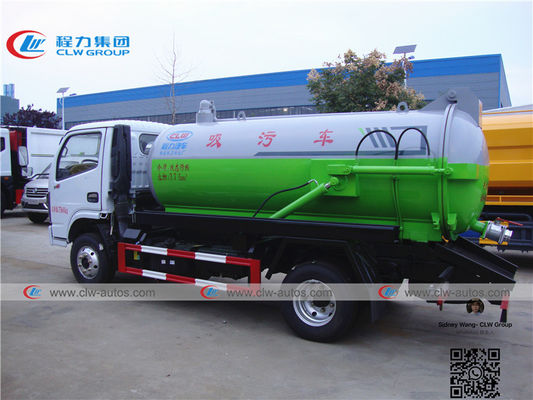

Dongfeng furuica 4x2 3000Liters Mini vacuum sewage suction tank truck sewer suction truck septic tank truck
Product Description
1. Purpose: It is used for city and factory sewer cleaning, it's one of our sanitation truck series. Our mission is assist urban sanitation project and make world cleaning!
2. Main parts: Water pump,pressure gauge,water gas separator,oil and gas separator...
3. Features: It can adopts high pressure water for flushing sewer.
4. 3,000 liters sewage vacuum suction truck.
Specifications
| Parameters for LHD Dongfeng 4x2 90hp 3000liters sewage suction truck | ||
| Chassis information | ||
| Overall dimension(mm) | 5595*2250*2550 | |
| Chassis | Dongfeng, LHD | |
| Cab | 2 seats , with A/C | |
| Drive type | 4*2 | |
| Wheelbase(mm) | 2800 | |
| Curb weight(Kg) | 2930 | |
| Engine | Brand | Chaochai, CY4102 |
| Horse power | 90hp | |
| Fuel type | Diesel | |
| Displacement | 2856 ml, Euro III | |
| Axles |
2 axles , front axle 2t, rear axle 4t |
|
| Gearbox |
WLY , 5 forwards gear, 1 rear gear |
|
| Tire |
6.50R16, 6 pcs+1 spare tire |
|
| Tank |
1. Tank volume: 3000 liters 2. Material of the tank: round tank is made by 5mm carbon steel 3. Accessories: anti-overfill valve, level indicator, suction hose, hand washing equipment, water oil separator, high quality wire strengthened hose 6m long ; vacuum pump with quick suction and discharge function |
|
| Vacuum system |
1. One vacuum suction pump, water-ring vacuum type, not oil-ring vacuum pump 2. Vacuum suction pipe: 6m long, diameter DN65mm (also could choose DN100) 3. Max vacuum suction vertical depth: 7m |
|
Reference Photos
Main Structure
Working Scene
Factory overview
Delivery and Shipment
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Fecal Suction tank we can get from your company?
A: we can supply 2CBM to 18CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
