Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng,ISUZU,JAC,JMC,Forland,Foton | Lifting Height(m): | 10m, 12m, 14m, 16m, |
|---|---|---|---|
| Operating Height(m): | 12m, 14m, 16m, 18m | Control Mode: | Control Handle/Remove Control |
| Drive Model: | 4x2; 4x4; As Per Upper Design And Customer Request | Color: | Red/Yellow/Blue/Green/Optional |
| High Light: | 16M Truck Mounted Aerial Work Platform,ISUZU Truck Mounted Aerial Work Platform,ISUZU Truck Mounted Aerial Lift |
||
Specifications
| Items | Parameter | ||
| Work Platform Parameter | Outline Dimension (L*W*H) | 8400x2270x3450 | |
| Rated Load of Bucket | 200kg | ||
| Max. Working Height | 16m | ||
| Max. Working Radius | 8.5m | ||
|
Main Feature: 1. Electro-hydraulic proportional control, excellent micro-maneuvering performance 2. Control box at both turret and platform 3. Limit switch and alarm 4. Large outrigger span, outrigger can be operate individually 5. Emergency descent power 6. Safety interlock |
|||
| Bucket Body | Cargo Thickness | Side | 4mm |
| Floor | 5mm | ||
| Chassis | Recommend Chassis Brand | ISUZU (Other brand for optional) | |
| Drive Mode | 4x2 | ||
| Tire type | 7.50-16 tire | ||
| Tire No. | 6+1 units | ||
| Max speed | 105 km/h | ||
|
Cabin: 1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition installed 4. Single row and Double row for optional, 2 or 5 seats 1-DIN AM/FM CD/MP3 Player |
|||
| Engine | Power | 140 kw / 190hp | |
| Fuel type | Diesel | ||
| Emission Standard | Euro 4 or 5 | ||
| Gearbox | Control type | ISUZU MLD 6-shift Manual Gearbox | |
| Gear | 6 forward & 1 reverse | ||

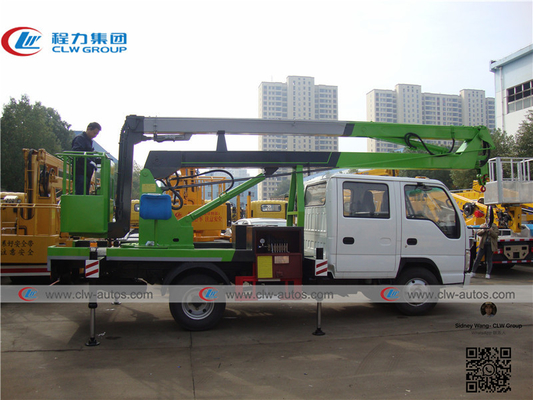

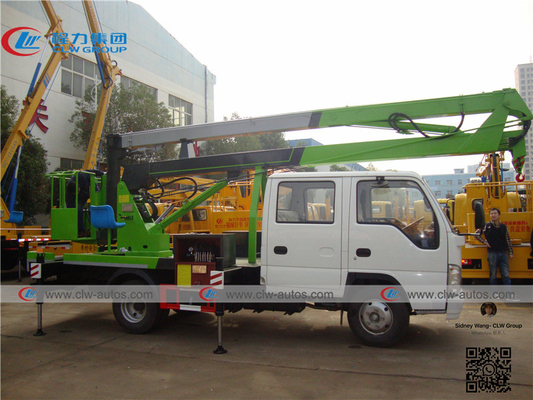

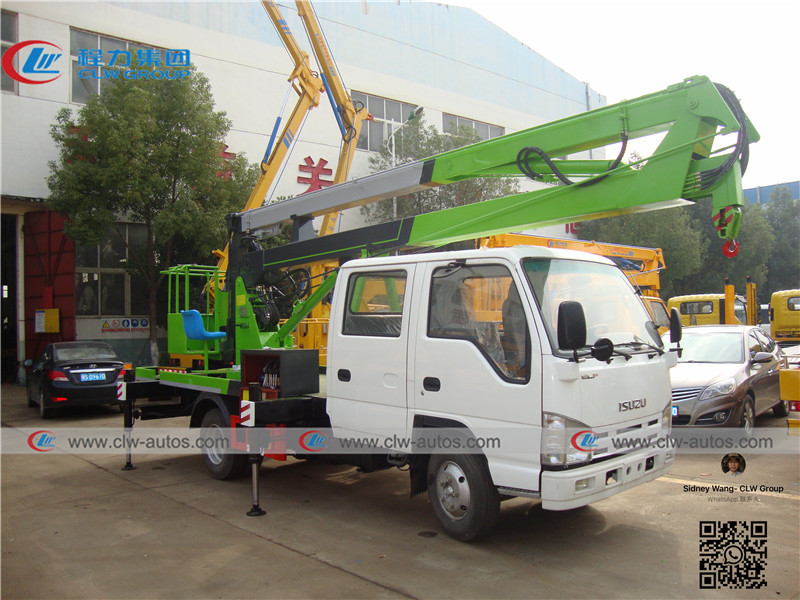

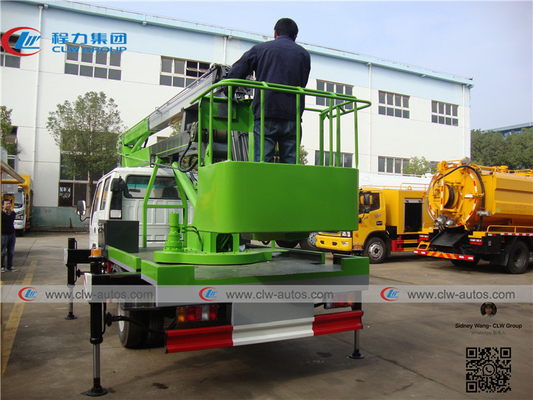

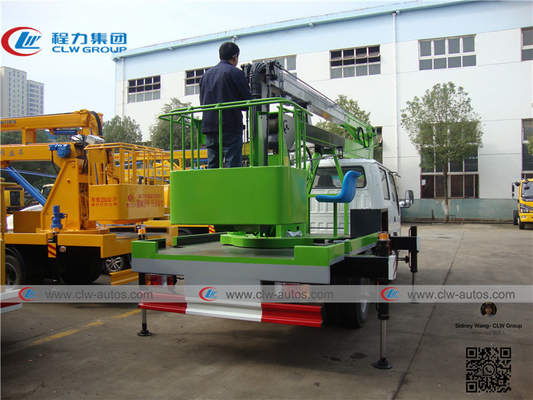

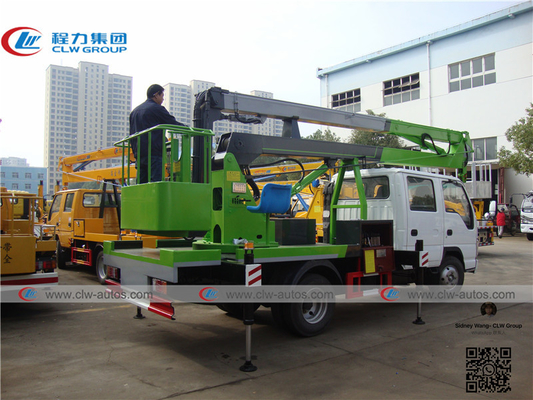

Reference photos

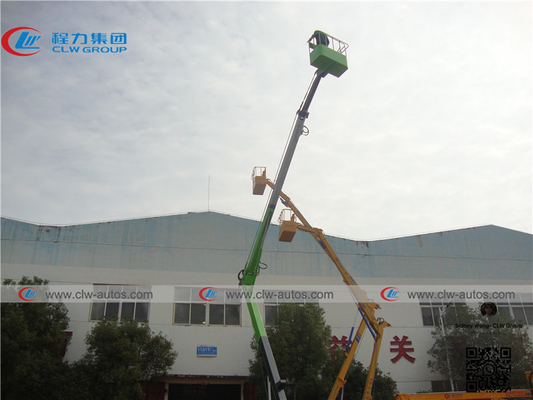

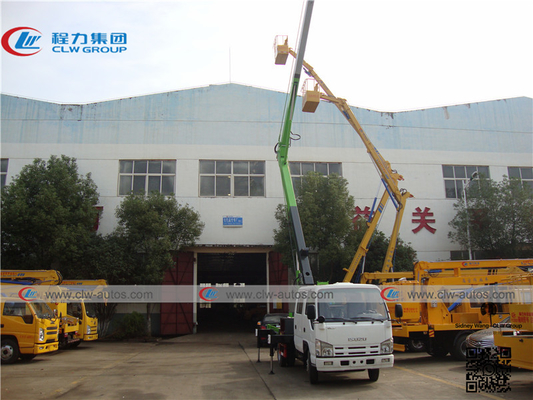

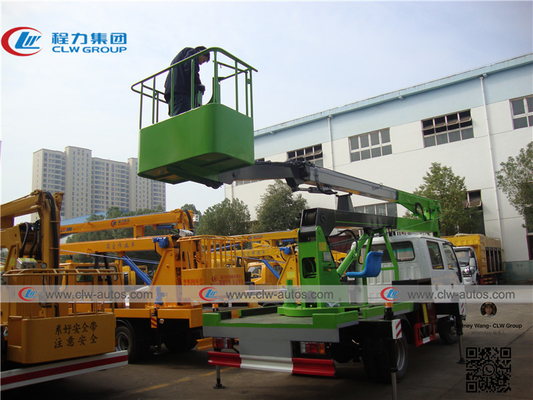

Working show
Bulk orders
Factory overview
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of truck mounted aeriel platform I can order from your company?
A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied truck mounted aeriel platform to any overseas companies?
A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
