| Brand: | HOWO,Dongfeng,JAC,FOTON,Shacman,FAW | Fuel: | Diesel |
|---|---|---|---|
| Wheelbase: | 4350+1300mm | Tank Material: | Carbon Steel Q235A |
| Thickness: | 4mm For Side And End Plate | Waste Tank Size: | 16,000liters,16cbm, 16m3 |
| Vacuum Pump: | China Famous Brand/Italy BP Brand | Discharge: | Tank Body Hydraulic Lifting |
| Sewage Suction Pipe: | 8 Meters | Suction Time: | Less Than 5 Minutes |
| Warranty: | One Year For Major Parts | Color: | Customized LOGO |
| Painting: | Three Layer Paiting | Production Time: | 40 Days |
| Operation Video: | Yes | User Manual: | Yes |
| High Light: | 16cbm Sewage Suction Truck,SINOTRUK HOWO Sewage Suction Truck,16cbm Sewer Cleaning Truck |
||

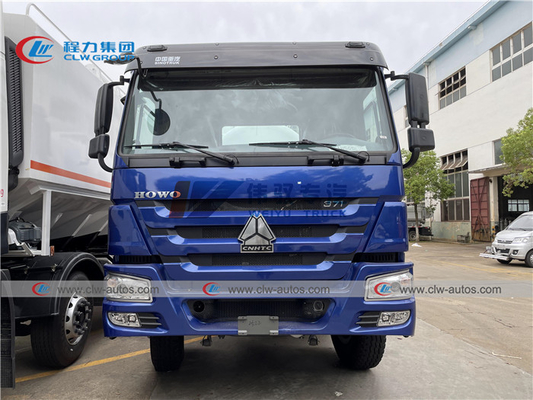

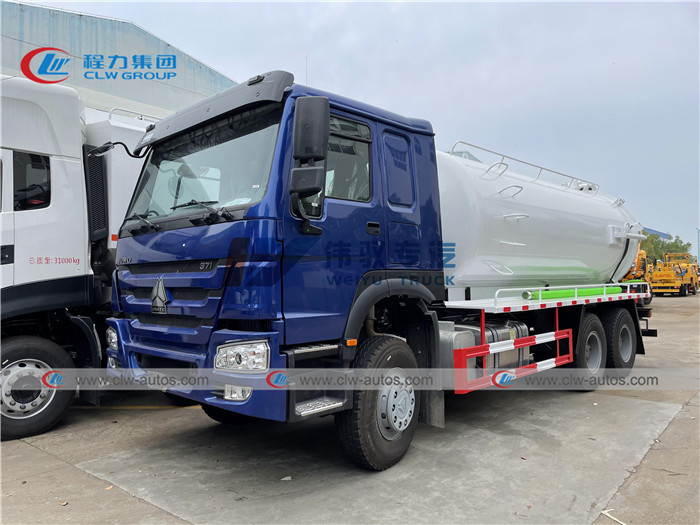

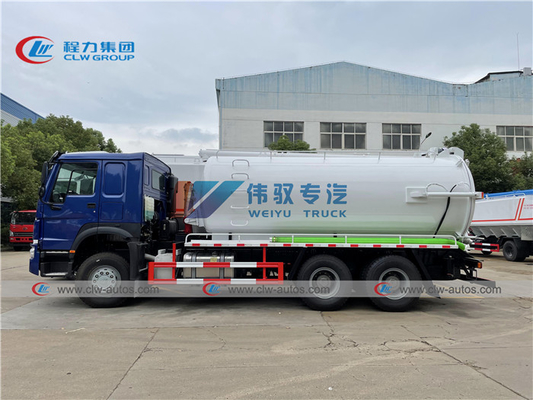

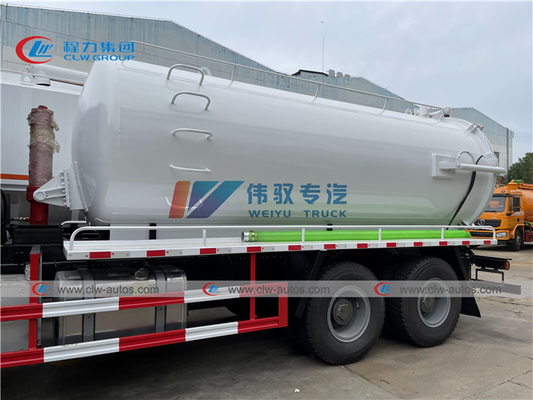

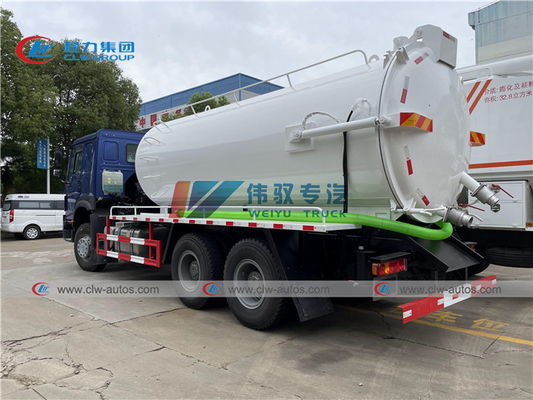

SINOTRUK HOWO 16cbm Sewage Suction Truck with Italy BP Vaccum pump Sewer Cleaning Truck
Product Description
1. Chassis: HOWO,Dongfeng,Foton,JAC,JMC,FAW all for choice
2. Tanker Volume :From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
4. Vacuum pump: Chinese brand or Italy brand(BP, Jurop brand for choice)
| Complete Vehicle Parameter | |
| Vehicle | HOWO vacuum sewage truck |
| Overall dimension (mm) | 9590×2500×3800 |
| Sewage tank (m3) | 16 |
| Gross vehicle weight (kg) | Appro×25000 |
| Curb weight (kg) | Appro×13000 |
| Payload (kg) | Appro×12000 |
| Wheel base (mm) | 4350+1300 |
| Max speed (km/h) | 90 |
| Chassis Parameter | |
| Cabin | Flat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive |
| Drive form | 6×4 |
| Engine | Brand: sinotruk Model: wd615-47, 371hp Type: diesel, turbocharged, 6 cylinder. Displacement: 9726ml Emission standard: Euro 3 |
| Transmission | 10 forward,2 reverse, manual operated |
| Tire model | 12.00R20 |
| No.of tires | 10 pcs, with 1pc spare tire |
| Superstructure Parameter | |
| Characteristic | 1. Sewage tank volume 16000 liter. 2. Sewage tank material is carbon steel,thickness 6mm. 3. Sewage suction pipe 1pcs, length 7m. 4. Hydraulic lifting sewage tank,rear cover can open. 5. Equipped with PTO. 6. Equipped with vacuum pump(Italy BP pump) 7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device. |
| Performance | (1) Vertical suction ≥ 7m. (2) Pumping speed : 45L/s. (3) Intake and exhaust diameter: 50mm. (4) Full tank pumping time ≤ 5min. (5) Sewage tank emptying time ≤ 4min. |

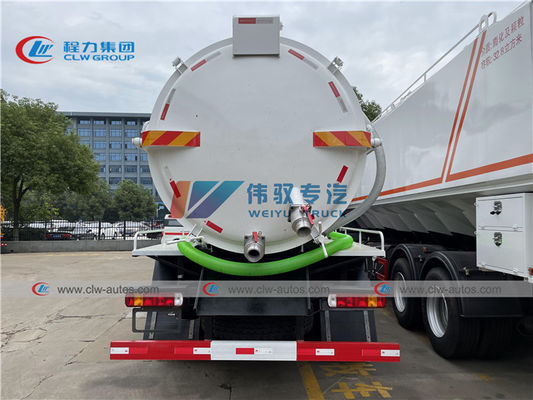

Discharge
Working Show
Sales Service
① 20 years engineer team do design and drawing, Economic Price with high quality
② Video and photos during whole production process, three layers paiting for long run, Customized logo
③ After-sales Service: one year warranty for majoy pars, factory price for spare parts whenever needed, live video guidance for first user.
Operation manual step by step.
