| Truck Chassis: | ISUZU,Dongfeng,Foton,Shacman,JAC,JMC,FAW,HOWO | Tank Material: | Carbon Steel Q235A |
|---|---|---|---|
| Water Tank: | 2CBM/2000liters | Dust Tank: | 3CBM/3000liters |
| Vacuum Pump: | Chinese Or Italy Brand For Choice | Wheelbase: | 3360 Mm |
| Color: | Customized LOGO | Warranty: | One Year For Major Parts |
| Operation Video: | Yes | User Manual: | Yes |
| High Light: | 5cbm Sewage Vacuum Truck,ISUZU Sewage Vacuum Truck,ISUZU 4x2 Sewer Cleaning Truck |
||

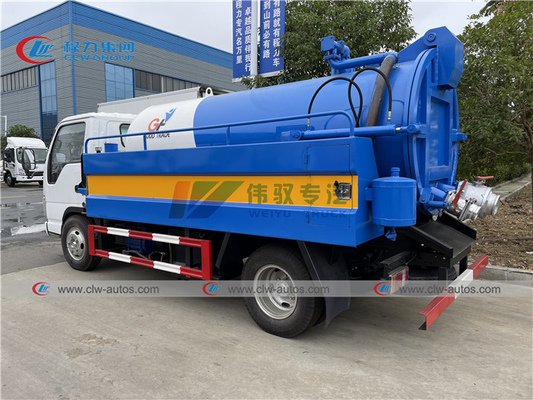

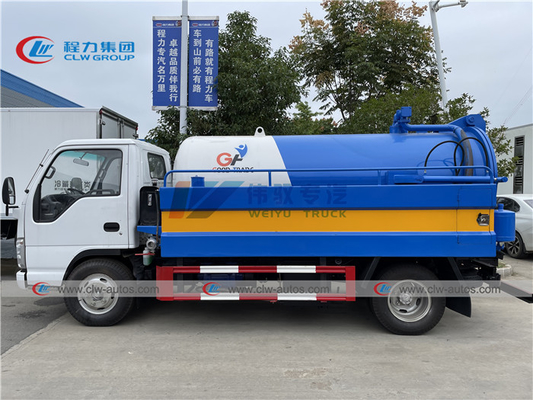

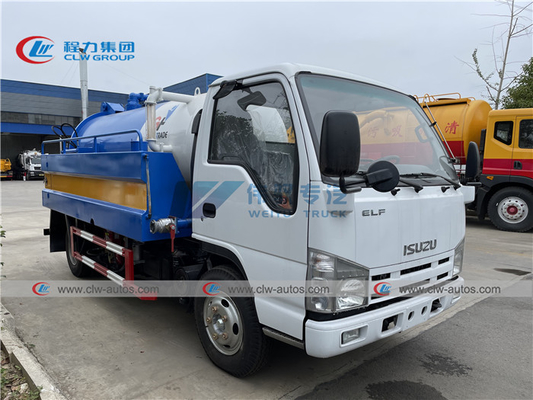

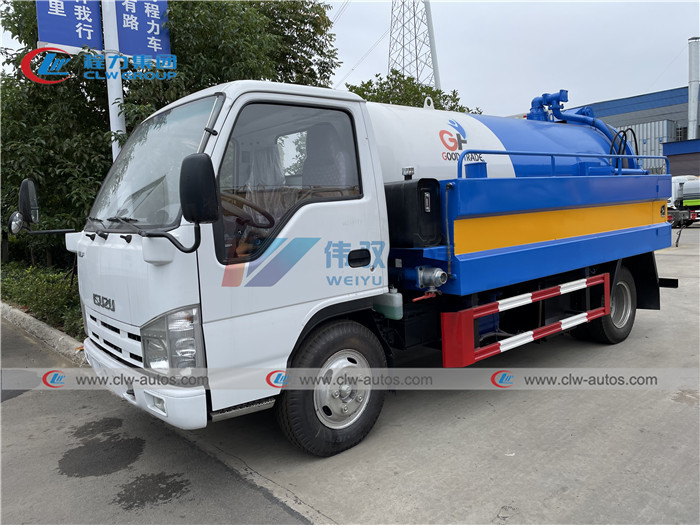

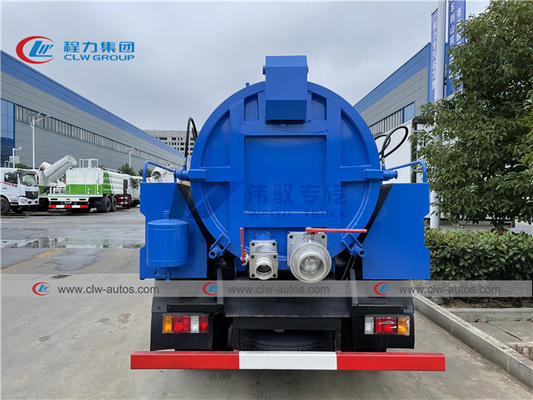

UZU 5cbm Sewage Vacuum Truck 5tons Sewer Cleaning Truck
Product Description
1. Purpose: It used for city and factory sewer cleaning, it's one of our sanitation truck series. Our mission is assist urban sanitation project and make world cleaning!
2. Main parts: Water pump and High pressure water cleaning nozzles tc.
3. Features: It can adopts high pressure water for flushing sewer.
4.5000 liters sewage vacuum suction truck with 2000 liters high pressure water tank(1000 liters by eash side)
| Vehicle Description | |
| Overall dimensions | 5995*2250*3250 mm |
| Curb Weight | 5400kg |
| Chassis brand | ISUZU |
| Traction type | 4*2 |
| Tanker Description | ||
| Tanker | Capacity | 5000L |
| Material | 6mm thickness, high quality carbon steel | |
| Structure | Welding, vacuum tank, Cylindrical | |
| Pump | Type | Double vacuum pump |
| Flux | 68(L/S) | |
| Rating speed | 800~1000(r/min) | |
| Shaft power | 5(kw) | |
| Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | |
| Manufacture | Hangzhou WEILONG Pump Co., Ltd. | |
| Pipe | Suction and discharge pipe | |
| Special function | Suction time ≤ 5mins, effective suction range ≥ 8, Max vacuum degree ≤ 15 Kpa, dump angle ≥ 45 |
|

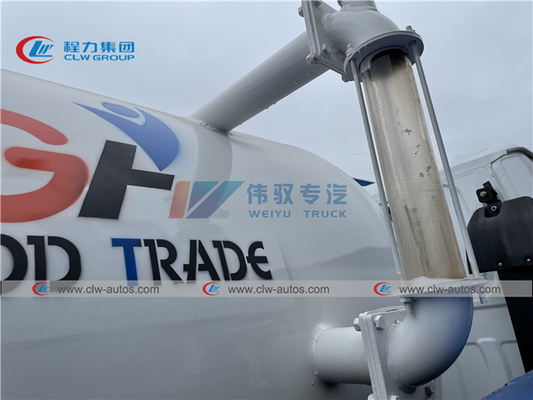

| Standard configuration | Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
| Optional configuration | Tanker material: stainless steel. Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tank |
|
| Chassis Description | ||
| Chassis model | ISUZU | |
| Cab | Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock. | |
| Traction type | LHD or RHD | |
| Drive type | 4*2 | |
| Wheelbase | 3360mm | |
| Tire specification | 8.25-16 | |
| Tire quantity | 6+1 units | |
| Engine | Emission level | Euro 1/2/3/4 |
| Displacement/output | 2771ml | |
| Horse power | 95hp | |
| Gear box | Model | China famous brand |
| Number of gears | 5 forward gears& 1 reverse, synchronized | |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake | |
| Axle | Front | 2.5T |
| Rear | 4T | |
IS
Working Process
Sales Service
1. Professional engineer team with more than 20 years experience, technical support whenever needed.
2. Our team will take operation videos to show you how to use the truck step by step, it will be very easy for first learners.
3. Live video guidance about usage and maintenance.
4. Life long service whenever needed
FAQ
Q1: What size Sewage Suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?
A: Our CBU Sewer cleaning truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.
Q3: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
