Product Details:
Payment & Shipping Terms:
|
| Truck Brand: | Dongfeng, FOTON, HOWO,JAC,JMC,SHACMAN | Tank Capacity: | 15tons, 15t, 15mt,15tonnes |
|---|---|---|---|
| Tank Volume: | 20,000Liters, 20000L,20m3 | Flow Meter: | Displacement Flow Meter |
| Pump Brand: | Chinese Brand Or Corken/Blackmer | Discharging Valve: | 1", 2", 3"Flange Type |
| Warranty: | One Year | Purpose: | Cylinder Refilling, Tank Refilling |
| Logo: | As Customer's Request | ||
| High Light: | Mobile LPG Gas Tanker Truck,15 Tons LPG Gas Tanker Truck,HOWO 15 Tons LPG Tanker Truck |
||
HOWO 15tons Gas Refilling Truck Cylinder Dispenser truck Mobile Tanker Truck
Product Description
1. Storage medium of LPG bobtail truck : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Truck Brand of LPG Gas Bobtail : Howo,optional for dongfeng,faw,isuzu,foton and other brands
3. Available tank capacity of LPG bobtail truck: 5m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.
4. Function of LPG Gas Bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
5. Manufacturing standards of LPG bobtail truck: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

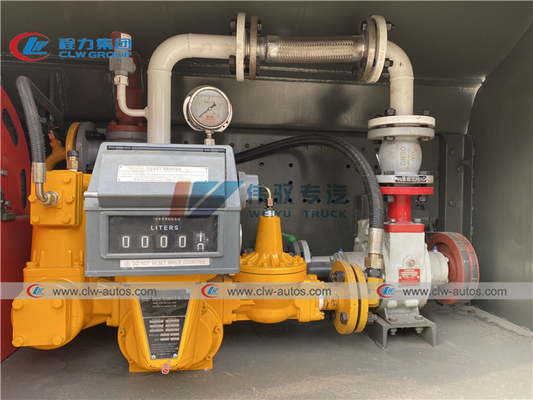

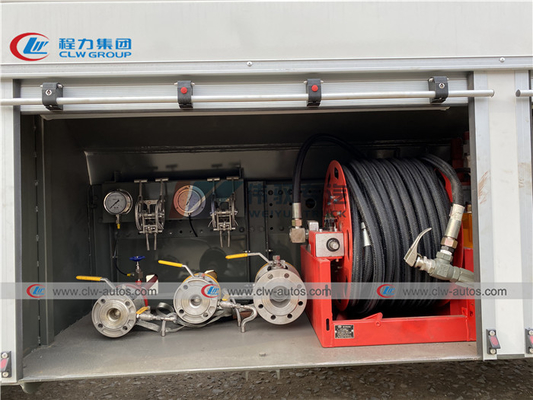

6. Refiling System of LPG Gas Bobtail: 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel
Specification
| Item No. | Parameters |
| Overall Dimension | 11800x2490x3690mm |
| Driving Model | Left hand drive or right hand drive |
| Gross Vehicle Weight | 31000 kg |
| Curb Weight | 14900 kg |
| Payload | 16000 kg |
| Front Axle Loading | 9000*2 kg |
| Rear Axle Loading | 12000*2 kg |
| Wheel Base | 1800+4650+1300 mm |
| Front/rear Tread | 1886/1845 mm |
| Approach/Departure Angle | 27/20 degree |
| Engine | WD615.47 |
| Engine horsepower | 371 HP EUROIII |
| Displacement | 9760mL (Diesel) |
| Max Driving Speed | 90 km/h |
| Gear Box | 10 forward& 2 reverse |
| Cabin | 2~3 Passenger allowed,with A/C |
| Tire | 12.00R20 (12 pc with 1 spare) |
| LPG tank | |
| Volume: | 30cbm |
| Tank material: | Q345R |
| Tank diameter: | 2300mm |
| Tank thickness: | 10mm |
| End plate | 12mm |
| Tank length: | As designed |
| Gas phase | DN50 |
| Liquid Phase | DN50 or DN80 for option |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Accessory | |
| Level Gauge | Manual rotation type,at the rear of tank |
| Safety Valve | 1,DN80 |
| Tool and Valve Box | 1 |
| LPG pump | 1 |
| LPG Volume Flow Meter | 1 |
| Filling Hose | 15 meters |
| Filling Nozzle | 1pc |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Emergency Valve | 1 |
| Fender | Steel |
| Fire Extinguisher holder | 2 |
| Exhaust shaft | At the front of truck for safety |

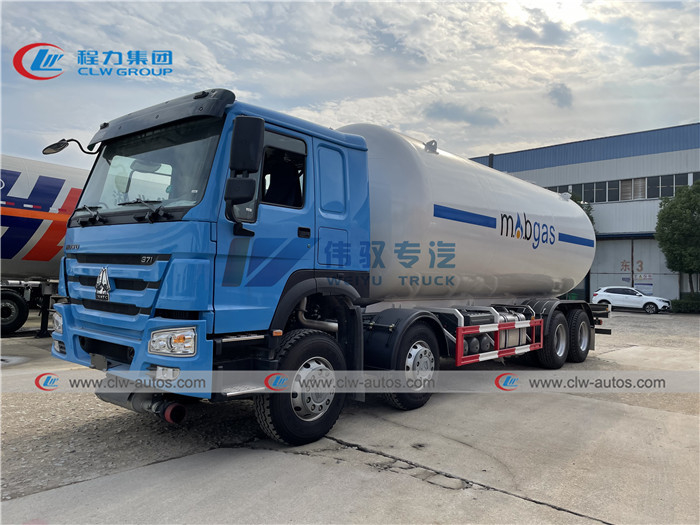

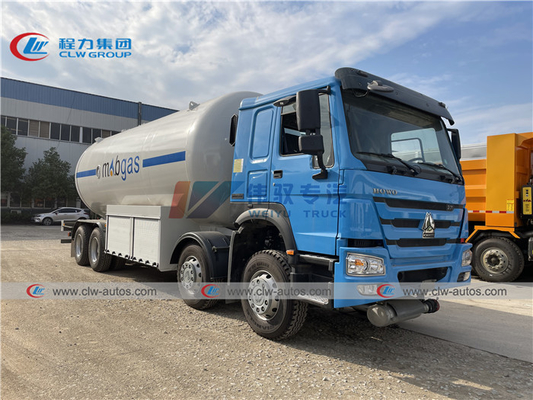

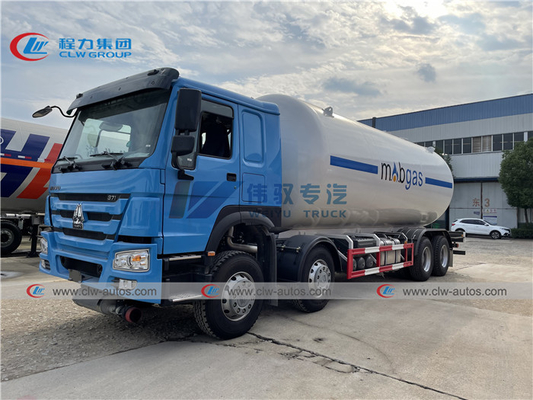

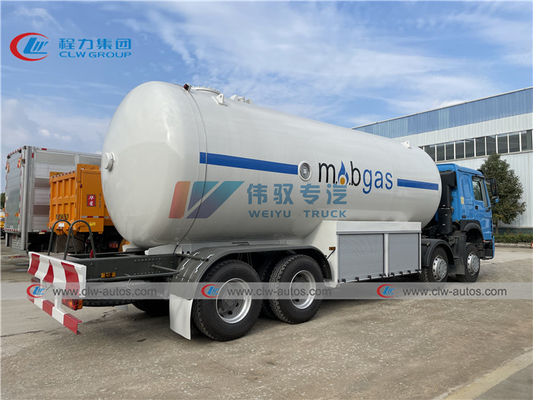

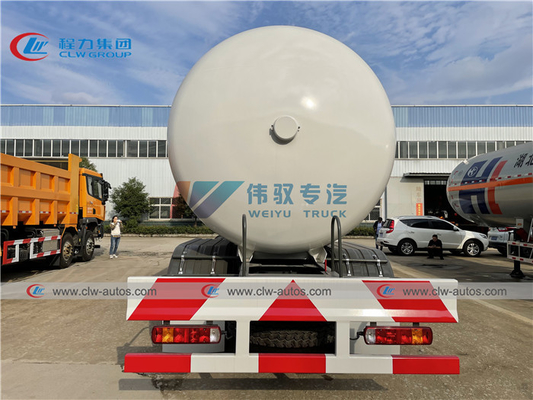

Reference Picture
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
