Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Foton, Dongfeng, Sinotruk HOWO, Isuzu, Etc. | Drive Model: | Right Hand Drive & Left Hand Drive |
|---|---|---|---|
| Wheelbase: | 3800 Mm | Engine Power: | 160HP |
| Tank Capacity: | 10cbm 10m3 10cubic Meter 10000liters 10t 12t | Tank Material: | 6mm Carbon Steel |
| Vacuum Pump: | Famous International Brand | Sewage Suction Pipe: | 7m |
| Suction Time: | No More Than 5mins | Effective Suction: | No Less Than 8m |
| Logo And Pattern: | As Customer's Request | Warranty: | 1 Year |
| High Light: | 8000 Liters Septic Tank Truck,Foton Septic Tank Truck,8000 Liters Vacuum Suction Truck |
||
Foton 8000Liters 8tons Vacuum Sewage Suction Truck septic tank truck
Description:
Vacuum Sewage suction truck(also called septic suction truck ,sewage vacuum tank truck,sewer cleaning truck ,sewage tanker ,sewer truck,cesspit emptier,gully emptier,vacuum truck,gully emptier,waste vacuum tanker,vacuum tanker sewage truck ) is used to collect ,transport and discharge liquid such as dirty water,sludge ,septic,crude oil,and solid stuff such as stones,bricks as well.It is suitable for cleaning the sewer,cesspit,cesspool,gully ,etc. It is widely used in environment and sanitation filed.
1) The truck is equipped with high-powered vacuum suction pump and high-pressure cleaning device. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up,
2) the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum,large capacity, high efficiency and good seal
3) The truck can inhale silt, feces, small bricks, stones and so on. And this truck can be equipped with high pressure cleaning device, it can flushing clogged drains , cleaning the tank and rinse the road ,etc
Specifications
| Cabin | Driving type 4x2, single row, LHD or RHD | |
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7200×2300×2850 |
| Wheel base (mm) | 3800 | |
| Wheel track (front/rear) (mm) | 1960/1860 | |
| Approach/Departure angle(°) | 28/32 | |
| Weight in KGS | Tare Weight | 5340 |
| payload | 6025 | |
| Front axles loading capacity | 2700 | |
| Rear axles loading capacity | 5000 | |
| Max. driving speed(km/h) | 95 | |
| Engine | ||
| Horse Power(HP) | 160HP | |
| Emission standard | Euro III | |
| Gearbox | 6 forwards & 1 reverse | |
| Steering | Left hand drive | |
| Tire | 9.00R20, 6 tires with one spare | |
| Sewage Tank | ||
| Tank volume | 8000Liters/8cbm | |
| Tank material | 6mm carbon steel Q235 | |
| Tank size | 4200x1600mm | |
| Vacuum Pump | Chinese Vacuum Pump or Italy Vacuum Pump | |
| Sewage suction pipe | 7M | |
| Main Performance | Suction time ≤ 5min, effective suction range ≥ 8m |
|
| Other equipment | Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve | |
| Painting | Customized painting color and logo as required. | |

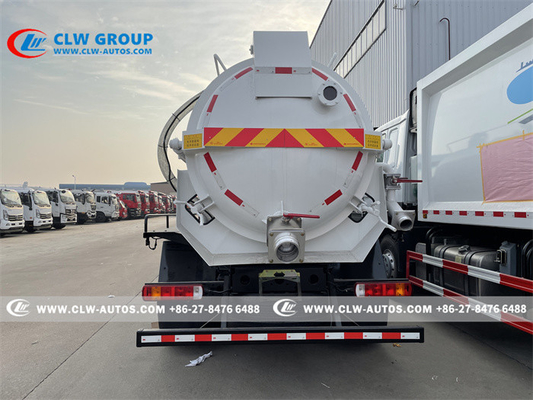

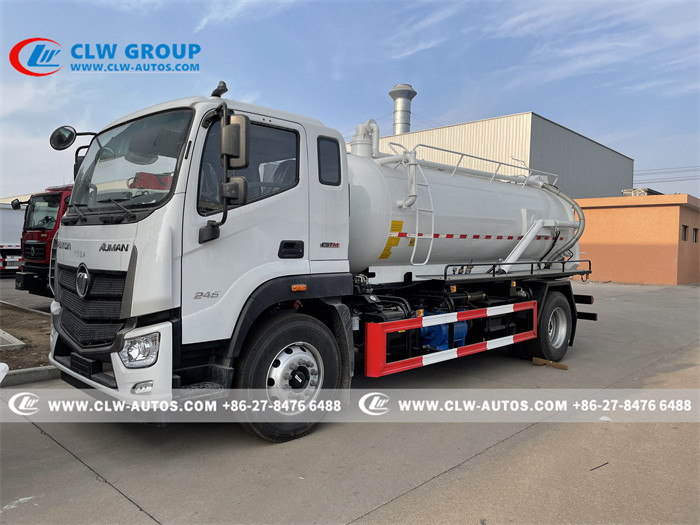

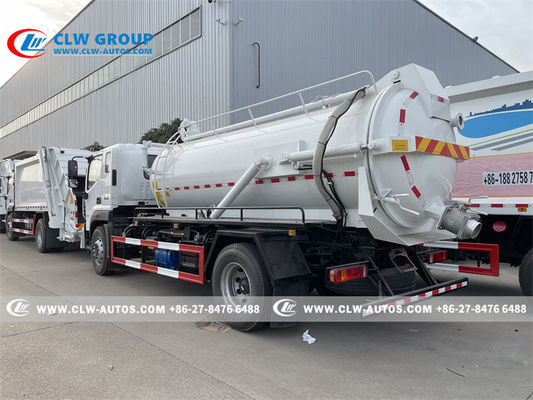

Reference Photos
Main Structure
Working Scenario
Factory overview
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness, etc. Our company has independent export authority, with good technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation, we have attracted a lot of customer from all over the world.
More than 10 years' experience as a manufacturer
CCC, ISO, BV, ASME certification
Perfect after-sale service
Trucks covering more than 50 countries and regions
800 kinds of trucks and trailers
100 Senior welder and 15 senior engineers
Good cooperation with 30% regular customers
Annual production value topped 240,000,000 US dollars per year
Other trucks we can supply
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Sewage Suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
