Product Details:
Payment & Shipping Terms:
|
| Product Name: | Street Cleaning Truck, Road Washing Sweeping Truck | Truck Chassis Brand: | JMC, DONGFENG, HOWO, FAW Other China Brand |
|---|---|---|---|
| Dustbin Capacity: | 5CBM, 5000Liters, 5M3, 5 Cubic Meters | Body Type: | Vacuum Road Sweeping Suction Truck |
| Watering Tank: | 2.5CBM, 2500Liters, | Truck Type: | Water Praying Dust Tank, Street Cleaning |
| Drive Type: | Right Hand Drive, Left Hand Drive | Drive Model: | 4X2, 6-Wheeler. 6X4, 10 Wheeler |
| Clean Water Tank: | 2.5m3, 5m3, 2500liters. 5cbm | Specification: | 6000L, 8000L, 10000L, Small Sizes |
| After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service,Overseas Third-party Support Available | Warranty: | 1 Year,12 Months |
| Key Word: | Dust Cleaning Truck,road/electric Sweeping,road Cleaning Vehicle | Application: | Street Cleaning,airport,Outdoor, Cleaning The Road |
| Power: | 125 Kw/170 Hp | Cleaning Width: | 3.4M, 1600mm |
| High Light: | 3M Sweeping Width Street Sweeper Truck,5T Street Sweeper Truck,Dongfeng 5T Road Cleaning Truck |
||
Dongfeng 3 Meters Sweeping Width Small 5Tons Road Cleaning Street Sweeper Truck
Product Advantages:
Road sweeper truck also called street sweeper truck ,municipal vehicle,sweeping car ,street cleaner sweeper and cleaning truck ,street cleaning vehicles ,
which is sutiable for brushing ,suction and transportation of dusts,leaves,mud,soil,sand,stone chips ,gravels and other small particles on the ground of city roads
and areas.This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.
The road sweeper truck is composed by chassis ,auxiliary engine,air blower ,magnetic valves ,debris bin ,water bin ,sweeping system ,suction system,
water sprinkling system ,hydraulic system ,electrical control system,etc.
Four brooms sweeping system and suction system combine working ,high efficient.Water sprinklers equipped on brooms,suction nozzles,effective dust suppression.
FEATURES:
Dongfeng chassis ,prefect performance;
Dustbin and water tank are made of stainless steel ,corrosion-resistant ,durable ;
Dongfeng Cummin engine,super powerful ,relianle performance ,no overhaul within 100,000 km ;
All electronic control integrated inside the cabin,convenient operation;
Noise reduction to minimize disturbance to urban life;
Suction nozzle is floating type ,self-adjustable for different road condition;
Air blower is special for road sweeper ,high efficient ,low noise ,wearable;
Advantage:
1. Imported hydraulic valve group can guarantee the stability
2. Good quality hydraulic motor ensure the stability of the squeegee and long service life.
3. Precise and seamless cold-bend hydraulic oil pipe without oxidation impurities on the inner wall to ensure that the hydraulic oil circuit is
clean and the valve is not blocked.
4. high-performance engineering plastic spacers in the sweeper brush arm
5. Stainless steel trash can resist general corrosion and increase the service life of the box.

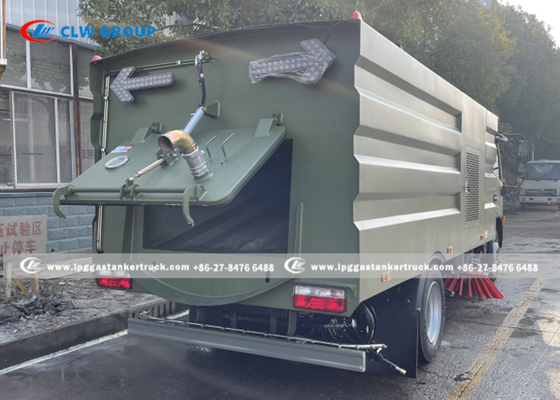

6. The wide back door and the opening angle of more than 90 degrees make it easy to dump the garbage and clean the trash.
7. The wide back door and the opening angle of more than 90 degrees make it easy to dump the garbage and clean the trash.
Specification for Dongfeng 3 Meters Sweeping Width Small 5Tons Road Cleaning Street Sweeper Truck:
| Vehicle parameters | |||
| Vehicle Model | WH5070TS38 | Vehicle Brand | DONGFENG |
| Overall dimensions | 7130×2200×2520mm | Curb weight | 6050kg |
| Dust tank volume | 5000L | Water tank volume | 2500L |
| Chassis parameters | ||||
| Chassis model | EQ1090T9ADJ3AC | Chassis brand | DONGFENG | |
| Overall dimensions | 6740X2100X2370mm | Wheel base | 3800mm | |
| Front/rear wheel track | 1740/1610mm | Front/rear suspension | 1130/1810mm | |
| Approach/departure angle | 20/14° | Maximum speed | 103km/h | |
| Chassis Manufacturer | Dongfeng Automobile Co.,Ltd | |||
| Cab | Configuration | Cab width: 2025mm,Single row cab,allowable 3 passengers,power-assisted steering,Camel brand battery: 24V/90AH,Pneumatic brake system, Air conditioner | ||
| Color | White,other color is optional | |||
| Engine | Model | YC4D120-33 | ||
| Emission | Euro 3 | |||
| Type | 4-stroke,water-cooled, turbocharging,diesel engine | |||
| Rated power | 90KW/120hp ,rated power speed 2800rpm | |||
| Displacement | 4214ml | |||
| Bore x stroke | 108x115mm | |||
| Manufacturer | Guangxi Yuchai Machinery Group Co.,Ltd | |||
| Tire | Size | 7.50R16 Steel wire | ||
| Number | 6+1 nos | |||
| Frame | 192mm | |||
| Front axle | 3.0T | |||
| Rear axle | 5.5T | |||
| Drive form | 4X2 | |||
| Rated voltage | 24V,DC | |||
| Transmissions | 5 speed forward 1 reverse. | |||
| Steering wheel | Left hand drive | |||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | ||||
| Road sweeper structure parameters | ||||
| Dust tank volume | 5000L | Water tank volume | 2500L | |
| Sweep width | 3200m | Cleaning speed | 3-20km/h | |
| Cleaning ability | 9000-60000 m2/h | Cleaning efficiency | 98% | |
| Maximum suction particle | Φ120mm | Min. clearance of suction nozzle | 200mm | |

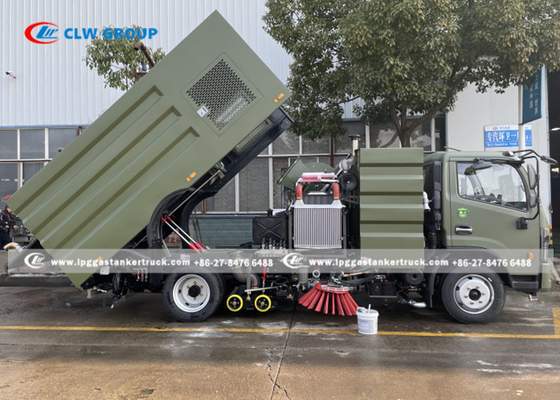

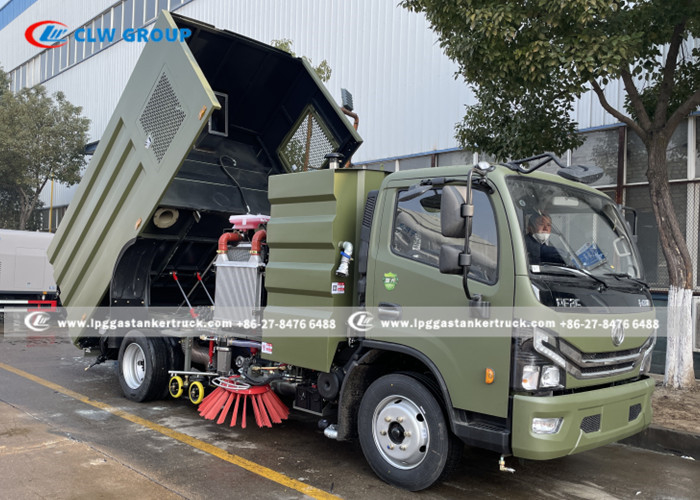

| Unloading angle | 45° | Unloading height | 970mm | |
| Material of dustbin | Stainless steel | Color and Logo | Optional | |
| Standard configuration | Dongfeng 85 HP engine ,4 sweeping plates, imported motors, import control switches, joint electromagnetic valve groups, stepless speed change automatic clutch, maintenance free centrifugal fan, garbage box lifting dump, tail LED arrow light, hand pump emergency system. | |||
| Optional | 1, Sprinkler function.+156USD 2, Self cleaning function inside the box.+390USD 3, water tank and dustbin are made of stainless steel.+460USD |
|||

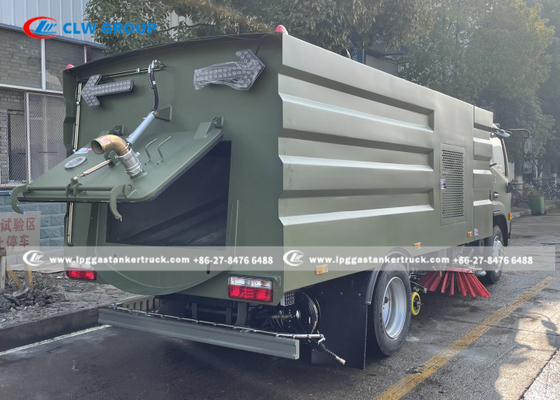

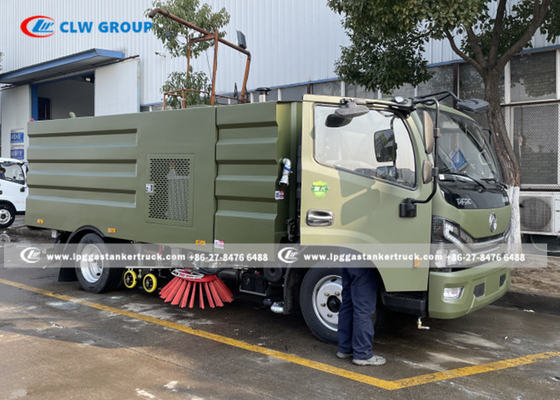

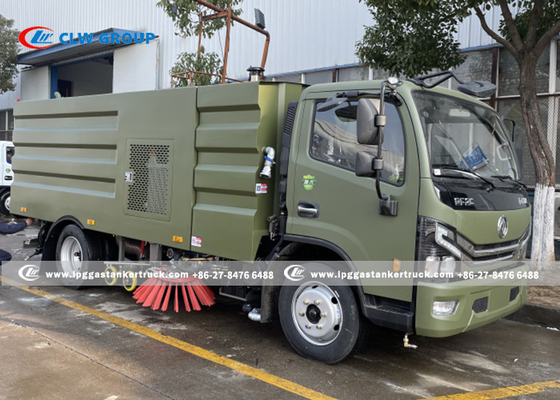

More pictures for Dongfeng 3 Meters Sweeping Width Small 5Tons Road Cleaning Street Sweeper Truck:
