Product Details:
Payment & Shipping Terms:
|
| Brand: | Chinese Famous Brands, Such As Sinotruk Howo, CAMC, Shacman, Foton, North-benz, JAC, ISUZU, Etc. | Loading Capacity: | 20tons, 25tons, 30tons |
|---|---|---|---|
| Lifting Type: | Front Tipping, Middle Tipping | Oil Cylinder Brand: | International Brand HYVA Or Chinese Brand |
| Dumper Material: | High Quality Q345B | Thickness Of Dumper: | Bottom 8mm, Side 6mm, Or As Customer Request |
| Color: | White, Red, Yellow, Green, Or As Customer Request | Warranty: | 1 Year |

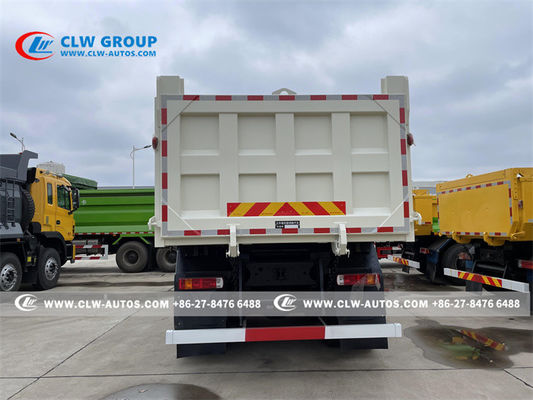

FOTON AUMAN 6X4 type 350hp 20tons 30tons Heavy duty mining stone sand dirt dump tipper truck dump truck for construction site mining tansportation
Product Description
1) Dump truck brand: FOTON, SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, etc.
2) Tipping Model: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia: 4mm,6mm,8mm, 10mm or as per client's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, and etc.
Product Specification
| Chassis | ||
| Brand and Model | FOTON AUMAN | |
| Drive type | 6X4 | |
| Wheel base(mm) | 3825+1350 | |
| Overall dimension(mm) | 8472X2495X3400 | |
| Curb weight(Kg) | 12110 | |
| Load capacity(Kg) | 30000 | |
| Cabin | Flat roof,one and half rows,luxury configuration,2 passengers allowable,with single bunker,A/C | |
| Engine | Model | ISGe4-350 |
| Max.output (kw/HP) | 257/350 | |
| Max.torque (N•m) | 1800@1000RPM | |
| Displacement (ml) | 10500 | |
| Emission standard | Euro IV | |
| Description |
In-line, 6 cylinders,water cooled,4 strokes,turbo charged,inter-cooled,electric control,high pressure ,common rail diesel engine |
|
| Gear box | Manual,12 forward ＆ 2 reverse gears | |
| Driving axle | Load capacity 18000Kg | |
| Front axle | Steering axle,load capacity 7000Kg | |
| Quantity of leaf spring | 11/14 | |
| Inner trimming | ||
| Standard configuration | Air suspension seat | |
| Seat heater | ||
| Lumbar support to the driver | ||
| Adjustable steering wheel | ||
| Electrical system | ||
| Standard configuration | CAN bus intellectual electronic control system | |
| New battery box | ||
| Start/stop device under the vehicle | ||
| Safety | ||
|
Standard |
Three points safety belt | |
| Automatic clearance adjustment arm,tachometer | ||
| Service brake | Dual circuit compressed air brake | |
| Parking brake | Spring energy, compressed air operating on rear wheels | |
| ABS | Provided | |
| Comfortable accessories | ||
| Cab four points full floating suspension | Front and rear coil spring | |
| Standard configuration | Cab anti-rolling stabilizing device | |
| Hand accelerator | ||
| Electric window | Provided | |
| Tipper body | ||
| Standard configuration | Big tool box | |
| Reinforced rim (with HQ mark) | ||
| Three in one lock (Ignition switch, door and fuel tank) | ||
| Type specification | 11.00R20 18PR | |
| Number of tyres | 10+1 | |
| Max.vehicle speed(km/h) | 81 | |
| Box dimension(mm) | 5600X2300X1200 | |
Product Show
Related products
Sales Service
FAQ
Q1: What kinds of dump trucks I can order from your company?
A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied dump trucks to any overseas companies?
A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the
installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the
products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
