ISUZU 6×4 20-30 Ton Heavy Duty Dump Truck with High-Tensile Steel Body for Heavy Loads

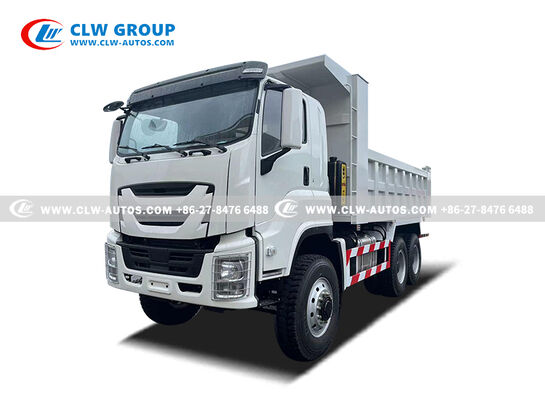

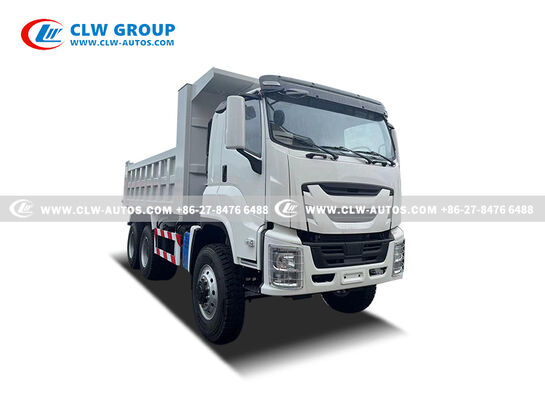

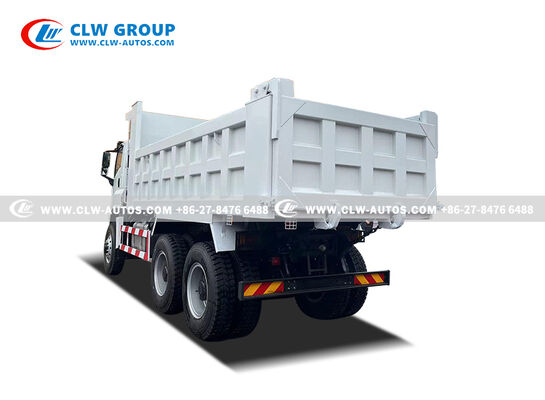

Large Image : ISUZU 6×4 20-30 Ton Heavy Duty Dump Truck with High-Tensile Steel Body for Heavy Loads

Product Details:

Place of Origin:	Suizhou, China
Brand Name:	CLW
Certification:	CCC,ISO,
Model Number:	clwghtrhjtyyt

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	Negotiable
Packaging Details:	Naked packing,Ro-ro,Bulk Ship
Delivery Time:	20-30 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500Unit Per Month

Contact Now

Detailed Product Description

Highlight:

20-30 Ton Payload Dump Truck

6×4 Chassis Heavy Duty Dump Truck

High-Tensile Steel Body Tipper Truck

ISUZU 6*4 20–30 Ton Heavy Duty Dump Truck

The ISUZU 6*4 20-30 ton dump truck is a powerful and dependable heavy-duty vehicle engineered for intensive earthmoving, construction, and mining operations. Built on a proven ISUZU 6*4 chassis, it features a high-strength tipping body and a robust drivetrain, delivering reliable performance under demanding working conditions.

With a payload capacity ranging from 20 to 30 tons, this dump truck combines structural durability, efficient hydraulics, and operator-focused design to ensure high productivity, low downtime, and long service life across various industrial applications.

Key Advantages

Proven ISUZU 6*4 Platform - Designed for heavy loads and harsh environments, the chassis delivers excellent stability, traction, and long-term reliability. The high-torque engine ensures consistent performance on slopes, rough terrain, and fully loaded operations.
Heavy-duty Dump Body - The reinforced high-tensile steel cargo body is resistant to abrasion and impact, making it ideal for transporting dense and abrasive materials. A high tipping angle enables smooth unloading, even with sticky or compacted materials.
Reliable Hydraulic System - A front-mounted telescopic hydraulic hoist ensures fast, stable, and complete tipping. The PTO-driven hydraulic system is simple, efficient, and easy to maintain, minimizing operational interruptions.
Operator Comfort & Safety - The spacious cab offers good visibility, ergonomic seating, and intuitive controls, enhancing safety and comfort during long working hours. Balanced weight distribution improves on-road and off-road handling.
Cost-efficient Operation - Fuel efficiency, durable components, and widely available spare parts help reduce total operating costs over the vehicle's lifecycle.

Typical Applications

Road and highway construction, building sites, mining and quarry operations, large-scale earthworks, ports and logistics yards, demolition projects, and agricultural or land reclamation transport.

Technical Specifications

Category	Parameter	Specification
CHASSIS SYSTEM	Model	ISUZU 6X4 Heavy-duty Dump Truck Chassis
	Engine	Diesel, approx. 300 - 400 HP, Euro V/VI compliant
	Transmission	Manual, 9-12 forward gears, 2 reverse gears
	Drive Type	6X4 Rear-wheel drive
	Wheelbase	4,200mm - 5,500mm (optimized for stability and load distribution)
	Max. Speed	85-100 km/h
	Fuel Tank Capacity	300-400 liters
	Tire Specification	11.00R20 or 12.00R20 radial tires (off-road tread optional)
	Brake System	Dual-circuit full air brake system with ABS
DUMP BODY SYSTEM	Body Material	High-tensile steel (Q550) with reinforced floor and sides
	Body Capacity	12 - 18 cubic meters (heaped, depending on configuration)
	Payload Capacity	20,000 - 30,000 kg (20-30 tons)
	Body Design	"U" shaped or rectangular with front protection board
	Floor Thickness	8-12 mm (reinforced for abrasive materials)
	Side Thickness	6-8 mm (with reinforcing ribs)
	Tailgate	Heavy-duty rear swing door or barn door (with lock)
HYDRAULIC TIPPING SYSTEM	Hoist Type	Front-mounted telescopic hydraulic cylinder (single or twin)
	Tipping Capacity	Matched to payload (20-30 tons)
	Maximum Tipping Angle	50° - 55°
	Tipping Time	15-25 seconds (raise and lower)
	Pump System	Gear pump driven by PTO
	Operating Pressure	16 - 22 MPa
GENERAL VEHICLE	Overall Dimensions	Length: 8.5 - 10.5m, Width: 2.5m, Height: 3.2 - 3.5m (cab to ground)
	Gross Vehicle Weight (GVW)	30 - 40 tons
	Curb Weight	Approx. 12 - 15 tons
	Rated Payload	20,000 - 30,000 kg (as per configuration)
	Min. Ground Clearance	≥280mm
	Approach/Departure Angle	≥25° / ≥20°
	Electrical System	24V, dual batteries with isolator
	Lighting	LED headlights, work lights, turn signals, reversing alarm
	Certification	Meets GB standards for dump trucks; customizable for export markets
