ISUZU 4×2 FTR Medium-duty Dump Truck with 8-12 Cubic Meters Body Capacity and 220-280 HP Engine

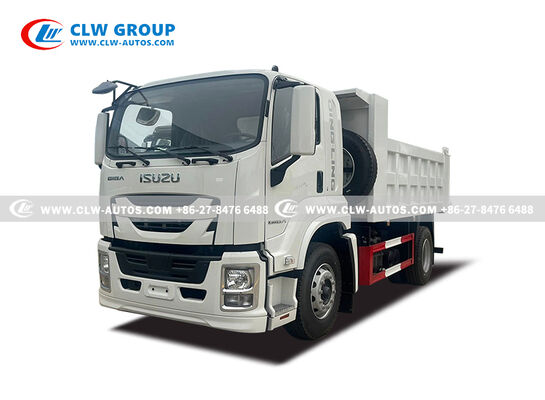

Large Image : ISUZU 4×2 FTR Medium-duty Dump Truck with 8-12 Cubic Meters Body Capacity and 220-280 HP Engine

Product Details:

Place of Origin:	Suizhou, China
Brand Name:	CLW
Certification:	CCC,ISO,
Model Number:	clwghtrhjtyyt

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	Negotiable
Packaging Details:	Naked packing,Ro-ro,Bulk Ship
Delivery Time:	20-30 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500Unit Per Month

Contact Now

Detailed Product Description

Highlight:

4×2 Chassis Dump Truck

8-12 Cubic Meters Body Capacity Tipper Truck

220-280 HP Engine Dumper Truck

ISUZU 4×2 FTR Medium-duty Dump Truck

The ISUZU 4×2 FTR dump truck is a reliable and flexible medium-duty solution designed for efficient material handling in urban construction and municipal projects. Built on the proven ISUZU FTR 4×2 chassis, it combines smooth driving performance with a durable steel tipping body, offering an excellent balance between payload capacity, maneuverability, and operating efficiency.

Engineered for consistent daily operation, this model performs exceptionally well in city environments, light construction sites, and short-distance material transport where agility and cost control are essential.

Key Advantages

Agile and Fuel-efficient Performance: The 4×2 chassis configuration ensures excellent maneuverability and a tight turning radius, making the truck well suited for narrow streets and confined job sites. The fuel-efficient engine delivers sufficient torque for loaded operation while helping reduce overall operating costs.
Durable and Practical Dump Body: The reinforced steel cargo body is designed to withstand repeated loading of sand, gravel, soil, and construction debris. Its optimized structure ensures smooth unloading and minimizes residual material after dumping. The low loading height allows for quick and efficient loading by small excavators or wheel loaders.
Reliable Hydraulic Tipping System: Equipped with a front-mounted telescopic hydraulic cylinder, the dump body provides stable and powerful lifting. The PTO-driven hydraulic system is simple, durable, and easy to maintain, while the safety locking mechanism helps prevent accidental lowering.
Operator-oriented Design: The cab offers good visibility, ergonomic controls, and a comfortable driving position, reducing fatigue during long working hours. Quiet operation and smooth driving characteristics make it suitable for urban and residential areas.
Cost-effective and Versatile Solution: With lower purchase and operating costs compared to heavy-duty dump trucks, this model delivers excellent value for light to medium-duty applications. Readily available spare parts and high reliability help minimize downtime.

Applications

Urban construction, municipal maintenance, landscaping projects, small quarry operations, waste transport, agricultural material movement, and utility infrastructure works.

Technical Specifications

Category	Parameter	Specification
CHASSIS SYSTEM	Model	ISUZU FTR 4X2 Medium-duty Truck Chassis
	Engine	Diesel, approx. 220 - 280 HP, Euro V/VI compliant
	Transmission	Manual, 6-8 forward gears, 1 reverse gear
	Drive Type	4X2 Rear-wheel drive
	Wheelbase	3,800mm - 4,800mm (customizable for body length)
	Max. Speed	90-110 km/h
	Fuel Tank Capacity	200-300 liters
	Tire Specification	10.00R20 or 11.00R20 radial tires
	Brake System	Air-over-hydraulic or full air brake system
DUMP BODY SYSTEM	Body Material	High-strength steel (Q345) with reinforced structure
	Body Capacity	8 - 12 cubic meters (heaped)
	Payload Capacity	8,000 - 14,000 kg (8-14 tons)
	Body Design	Rectangular or "U" shaped with front protective shield
	Floor Thickness	6-8 mm (with wear-resistant liners optional)
	Side Thickness	4-6 mm (with vertical stiffeners)
	Tailgate	Rear swing door with locking mechanism (barn door optional)
HYDRAULIC TIPPING SYSTEM	Hoist Type	Front-mounted telescopic hydraulic cylinder
	Tipping Capacity	Matched to payload (8-14 tons)
	Maximum Tipping Angle	48° - 52°
	Tipping Time	12-20 seconds (raise and lower)
	Pump System	Gear pump driven by PTO (Power Take-Off)
	Operating Pressure	14 - 20 MPa
	Control	Manual lever control inside the cab
GENERAL VEHICLE	Overall Dimensions	Length: 7.5 - 9.0m, Width: 2.4 - 2.5m, Height: 2.9 - 3.2m
	Gross Vehicle Weight (GVW)	16 - 25 tons
	Curb Weight	Approx. 6.5 - 8.5 tons
	Rated Payload	8,000 - 14,000 kg (as per configuration)
	Min. Ground Clearance	≥240mm
	Approach/Departure Angle	≥22° / ≥18°
	Electrical System	24V, dual batteries
	Lighting	LED headlights, work lights, turn signals, reversing alarm
Certification		Meets GB standards for dump trucks; customizable for regional regulations
