Product Details:
Payment & Shipping Terms:
|
| Purpose: | Cylinder Delivery | Cylinder Type: | Oxygen, Nitrogen, Propane, Butane Cylinder |
|---|---|---|---|
| Truck Brand: | FAW | Cargo Box Size: | 5140×2300×2100mm |
| Cargo Box Length: | 5140mm | Cargo Box Width: | 2300mm |
| Cargo Box Height: | 2100mm | Safety Feature: | Fire Extinguisher 2kg |
| Exhaust Hose: | Front Install | Engine: | Xichai Engine |
| Platform: | Hydraulic Lifting | Platform Capacity: | 1Ton |
| High Light: | 10tons Stake Cargo Truck,Dongfeng Stake Cargo Truck |
||
Specifications of Stake Truck:
Stake Truck , is also called fence cargo box truck, is a special truck with Stake or Box structure. This kind of truck can be used for transporting Livestock and poultry, Fruits and vegetables ,bottled drink ,Beekeeping , barreled garbage,etc. It have some features, such as Lighter DeadWeight, Convenient and practical, safe and reliable,etc. The barrier can be removed partially or entirely, also can come up or down freely.
Product Notes:
1 Dongfeng 4* 2 chassis with 124hp, cabine flipped forward
2 Factory direct sale, good after-sale
3 High quality, low price
4 Two layer stake box for pig transportation
| Main Technical Parameter | |||
| Product Model | DONGFENG Stake Truck | Overall Dimension(L*W*H)(mm) | 6970*2470*3250 |
| Wheelbase(mm) | 3800 | Compartment Dimension(L*W*H)(mm) | 5140*2300*2100 |
| F/ R suspension(mm) | 1210/1960 | Number of Axles | 2 |
| Curb weight(kg) | 3200 | Effective volume(m3) | 25-27 |
| Approach/ departure angle (° ) | 24/13 | Max Speed (km/h) | 95 |
| Cab capacity | 2 or 3 | Cab Type | Single row, air conditioning |
| Chassis Parameter | |||
| Chassis Model | EQ1090 | Chassis manufacturer | DONGFENG Automobile Co., Ltd |
| Gear Box | 5 shift | Transmission type | Manual |
| Steering Type | LHD or RHD | Traction Type | 4*2 |
| Frame type | Side rails and riveted construction | Brake System | Air brake |
| Number of Tire | 6 with a spare | Tire size/type | 7.50R16(steel tire) |
| Engine Parameter | |||
| Engine Model | CY4102-E3C | Engine manufacturer | DONGFENG CHAOYANG |
| Fuel type | diesel | Displacement(ml) | 3856 |
| Emission stand | Euro 3 | Power(kw) | 91(124hp) |
| Remarks | 1. Equipped with 24V Electric system | ||
| 2. Cargo body material: Corrugated iron, stake structure | |||
| Warranty | 12 months, from the date of supply | ||

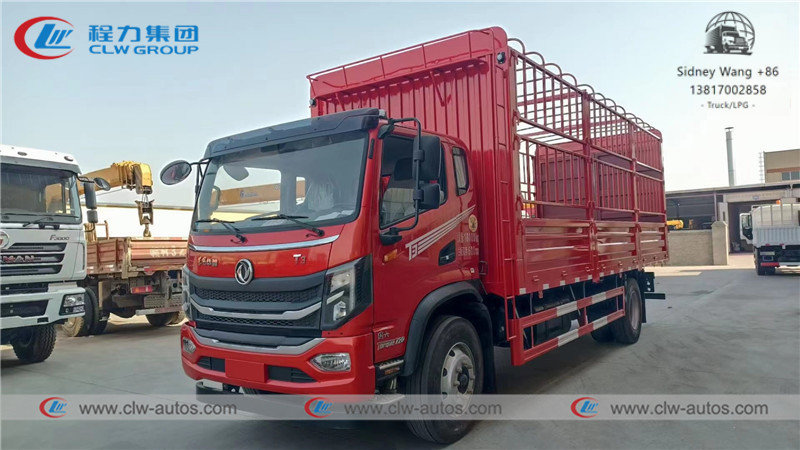

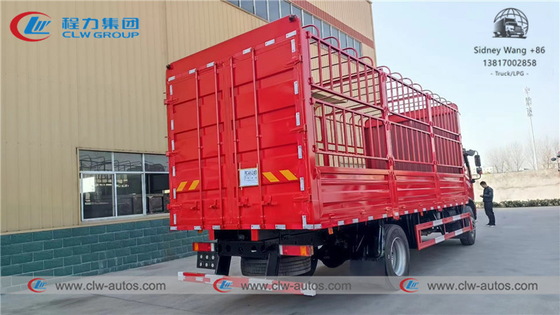

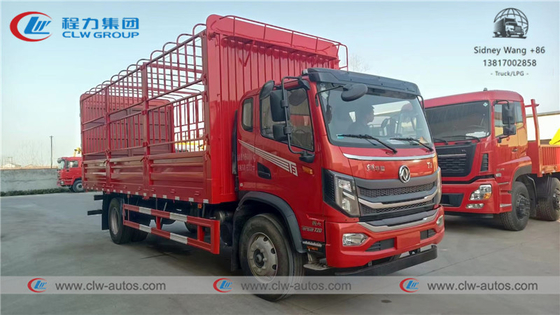

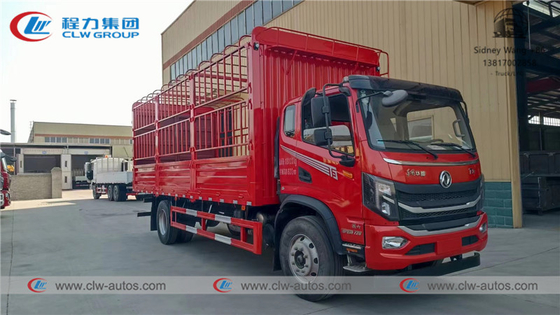

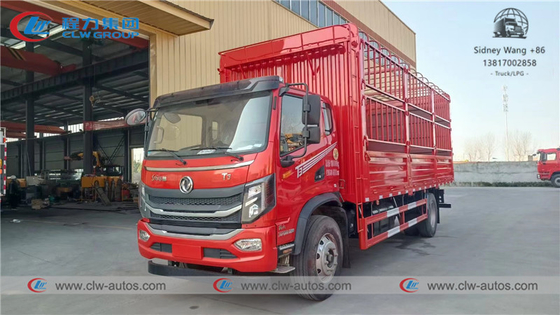

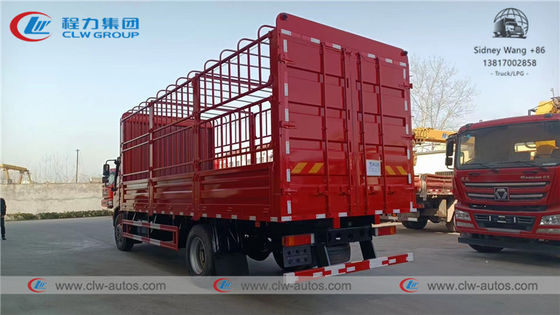

Photos of Reference:
Hydraulic Rear lift platform 1-1.5tons for options
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
