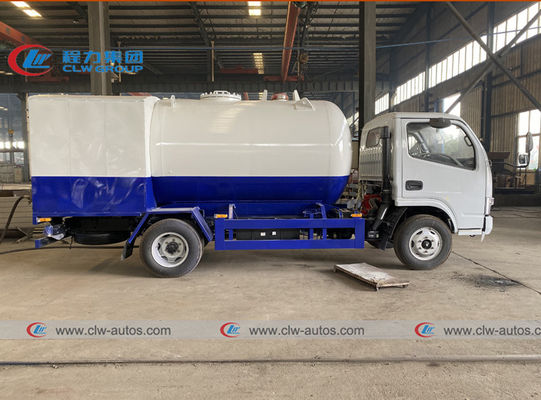

5ton Bobtail Truck Lpg Tanker Truck For Cylinder Refilling Petrol Tanker Truck

5ton Bobtail Truck Lpg Tanker Truck For Cylinder Refilling Petrol Tanker Truck
5ton Bobtail Truck Lpg Tanker Truck For Cylinder Refilling Petrol Tanker Truck 5ton Bobtail Truck Lpg Tanker Truck For Cylinder Refilling Petrol Tanker Truck 5ton Bobtail Truck Lpg Tanker Truck For Cylinder Refilling Petrol Tanker Truck 5ton Bobtail Truck Lpg Tanker Truck For Cylinder Refilling Petrol Tanker Truck

Large Image :  5ton Bobtail Truck Lpg Tanker Truck For Cylinder Refilling Petrol Tanker Truck

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: ASME,CCC,BV,SGS
Model Number: CLW5077ZXV

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving advanced deposit
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units/month
Detailed Product Description
Truck Brand: Sinotruk HOWO,ISUZU,Dongfeng,Shacman,FAW,JAC,JMC Engine: Yuchai, Chaochai, Cummins
Design Pressure: 1.61 Mpa Tank Material: Q345R
Tank Capacity: 10000Liters, 5tons, 5mt, 10cbm Loading Weight: 5tons, 5mt
Flow Meter: Displacement Flow Meter Pump: Hydraulic Pump With PTO Powered
Discharging Valve: 1", 2", 3"Flange Type Service Time: 10 Years
Warranty: One Year For Engine,gearbox, Axle LOGO & Painting: As Per Customer's Request
Usage: Cylinder Refilling, Truck Gas Supply
High Light:

5ton Lpg Tanker Truck

,

Cylinder Refilling Lpg Tanker Truck

5ton Bobtail Truck Lpg Tanker Truck For Cylinder Refilling Petrol Tanker Truck



Product Description

There are various LPG Gas Cylinder Filling Trucks available with storage tank capacity ranging from 5000 Liters to 40000 Liters and with the choice of single or many cylinder filling scales. All necessary fittings and components of equipment such as pump, flow meter, LPG filling scale, hydraulic slave motor etc. are installed on the chassis.



1. Storage medium of LPG bobtail truck :

  • LPG
  • Liquid ammoina
  • Dimethyl ether
  • Iso-butane
  • Pentane


2. Truck Brand :

  • Howo
  • Dongfeng
  • Faw
  • isuzu
  • Foton
  • JAC
  • JMC


3. Available tank capacity:
5m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.

4. Function of LPG Gas Bobtail :
mobile Gas Delivery/ Refilling/bottling/filling

5. Manufacturing standards :

  • GB-150
  • ASME VIII Division I U STAMP
  • CCC
  • ISO9001 : 2008


6. Refiling System of LPG Gas Bobtail:

  • 2" Flowmeter or intelligent filling dispenser machine
  • 2" Corken or Chinese brand Pump,15meters Filling Hose Reel



Technical data

  • Temperature range: -15℃~50℃
  • Design pressure: 1.61Mpa
  • Flow rate: depending on the type of pump installed
  • Tension: 380V/50Hz, 220V/50Hz

Specification





Condition New Condition / LHD
Chassis Brand SINOTRUK HOWO
Curb Weight(kgs) 6800
G.V.W.(kgs) 11000
Wheel Base(mm) 4500
Dimensions(mm) 7600*2462*2950
Voerhang(Front/Rear)(mm) 1886/1845
Approach/departure Angle 27/20
Max driving speed 90
Tire 6 pcs with one spare tire 8.25R20
Clutch Reinforced diaphragm Clutch
Engine Model Cummins
Fuel type Diesel
Displacement(ml) 4900
Power(kw) 120
Horsepower(hp) 160
Cylinder Number 6
Emission Standard Euro 3
Breakes Service Brake :Dual Circuit Compressed air brake ,Parking Brake(Emergency brake):Spring energy , compressed air operation on rear wheel Auxiliary brake :Engine exhaust valve brake
Cab 3 Passenger Allowed , With A/C
Steering Gear Power steering , Hydraulic steering with power assistance
Tank Parameter Tank material Carbon Steel Q345R
Loading capacity(cbm) 10cbm(10000 liters)
Tank sharp Double Ellipse
Thickness of shell(mm) 10
Thickness of End Plate(mm) 10
Filling Medium Liquefied Petroleum Gas(Propane)
Corrosion Allowance(mm) 1
Filling Ratio 0.42
Design Pressure(Mpa) 1.61Mpa
Safty accessory parts :Safety valve , Cut-off valve , thermometer, Liquid level gauge , Pressure Gauge



Other Types of  LPG TRAILER

5ton Bobtail Truck Lpg Tanker Truck For Cylinder Refilling Petrol Tanker Truck 05ton Bobtail Truck Lpg Tanker Truck For Cylinder Refilling Petrol Tanker Truck 1



Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment
