Product Details:
Payment & Shipping Terms:
|
| Truck Brand: | Sinotruk HOWO,Dongfeng,Foton,Shacman,Faw,JAC,JMC Etc. | Engine: | Yuchai, Chaochai, Cummins,ISUZU |
|---|---|---|---|
| Tank Capacity: | 4tons, 8,000Liter, 4 Metric Tonne | Tank Volume: | 8000Liters,8cbm,8m3 |
| Flow Meter: | Displacement Flow Meter (printer Optional) | Pump: | Hydraulic Pump With PTO Powered |
| Filling Head: | REGO Brand, USA Brand | Discharging Valve: | 1", 2", 3"Flange Type |
| Filling Hose: | 15 Meter | Warranty: | One Year For Major Parts |
| Painting: | As Per Customer's Request | ||

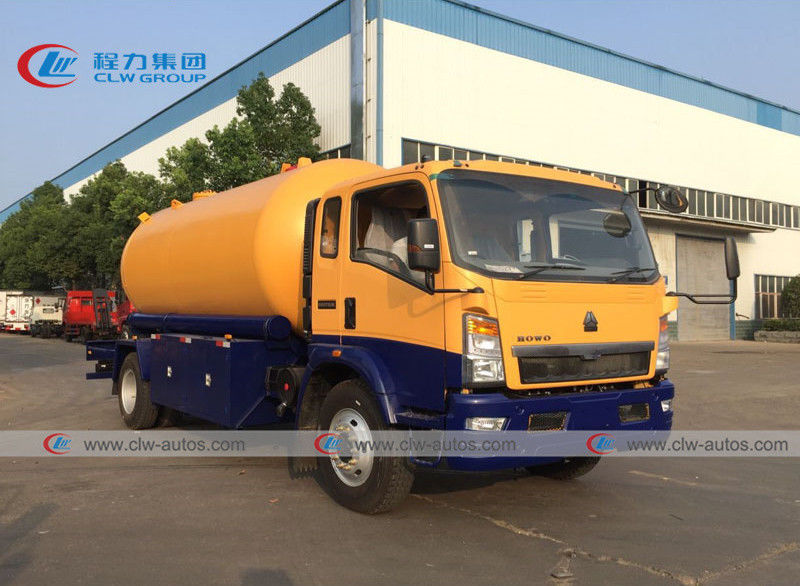

| High Light: | HOWO 4X2 Propane Bobtail Truck,8tons Propane Bobtail Truck |
||
Product Description
1. Storage medium of LPG bobtail truck :
2. Truck Brand :
3. Available tank capacity:
5m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.
4. Function of LPG Gas Bobtail :
mobile Gas Delivery/ Refilling/bottling/filling
5. Manufacturing standards :
6. Refiling System of LPG Gas Bobtail:
Technical data
Specification
|
1. Specification of 8tons LPG TANK
|
|||
| Item | Unit | Parameter | |
| Thickness of Shell | mm | 10.0 | |
| Thickness of Endplate | mm | 12.0 | |
| Corrosion Allowance | mm | 1.0 | |
| Fact cubic meters | cbm |
12cbm (12,000L) |
|
| Loading capacity | kg | Approx.4788 kg | |
| Working temperature | ºC | -40/+55 oC | |
| Tank material | mm | Carbon Steel Q345R(Pressure Vessel Steel) | |
| Manhole | mm | DN450(18 inch) | |
| Safety Valve | mm | DN50(2 inch) | |
| Liquid Line | mm | DN50(2 inch) | |
| Gas Line | mm | DN50(2 inch) | |
| 2. Specification of Truck Chassis | |||
| Condition | New condition/Left hand drive/4x2 | ||
Main details |
Brand and Model | HOWO | |
| Wheelbase(mm) | 4700 | ||
| Front/Rear overhang(mm) | 1205/2310 | ||
| Approach/Departure angle(°) | 18/12 | ||
| Max. driving speed(km/h) | 90 | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6pcs with one spare tire | |
| Specifications | 8.25R16 | ||
| Transmission | Manual type, 6 Forwards and 1 reverse | ||
| Cabin | It can accommodate three people, With Air conditioner | ||
| Engine | Brand and Model | Optional | |
| Fuel type | Diesel | ||
| Emission standard | Optional | ||
Detail photos
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
