Product Details:
Payment & Shipping Terms:
|
| Brand: | ISUZU,Dongfeng,FOTON,HOWO,Shacman,FAW,JAC,JMC. | Fuel: | Diesel Engine, |
|---|---|---|---|
| Wheelbase: | 4500-4700mm | Tank Material: | Carbon Steel, |
| Thickness: | 4mm | Vacuum Tank Size: | 10,000liters,10cbm, 10m3 |
| Discharge: | Tank Body Hydraulic Lifting | Vacuum Pump: | China Famous Brand/Italy Brand |
| Sewage Suction Pipe: | 8 Meters | Suction Time: | Less Than 5 Minutes |
| Warranty: | One Year | Color: | Customized LOGO |
| Delivery Time: | 30 Days | ||
| High Light: | 10cbm Sewer Cleaning Truck,ISUZU FTR Sewer Cleaning Truck |
||

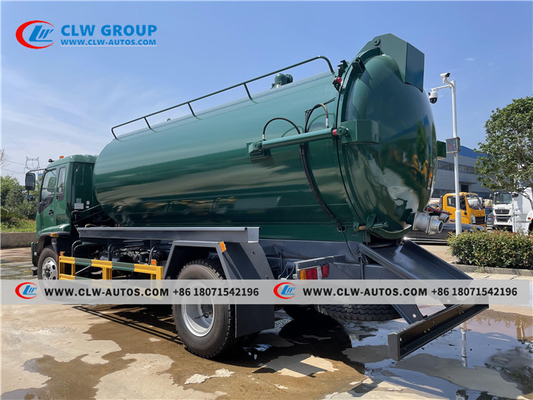

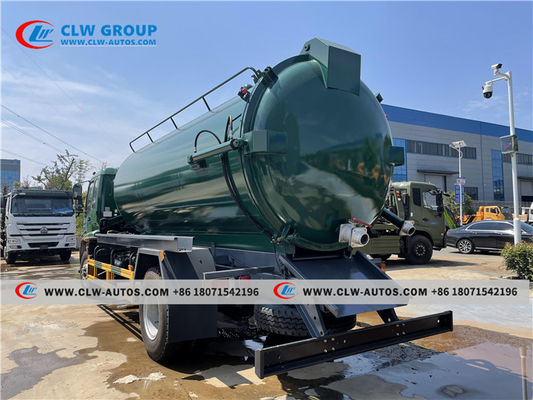

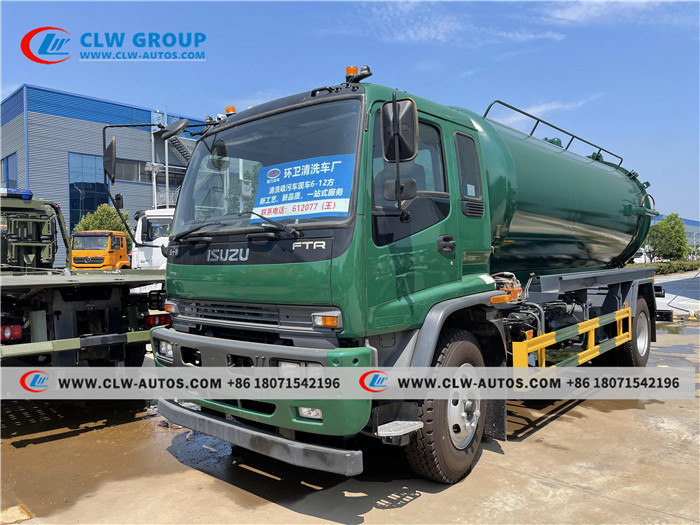

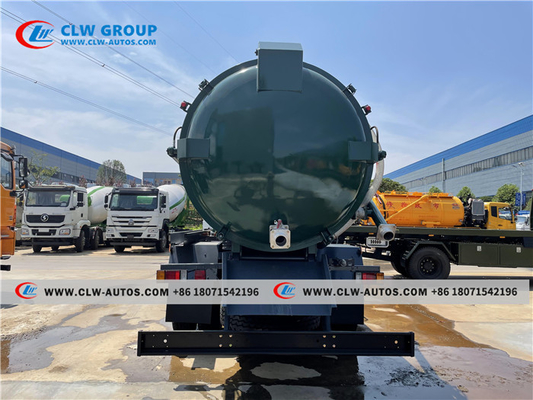

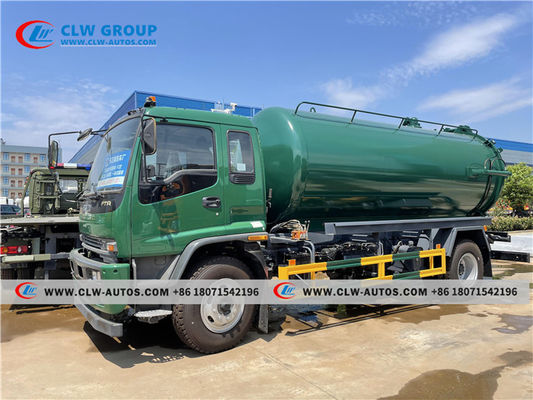

ISUZU FTR 10cbm Sewer Cleaning Truck for Sludge Treatment
Product Description
1. Chassis:
1) Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body:From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
| Complete Vehicle Parameter | |
| Vehicle | ISUZU vacuum sewage truck |
| Overall dimension (mm) | 7850×2470×3200 |
| Sewage tank (m3) | 10 |
| Gross vehicle weight (kg) | Appro×18000 |
| Curb weight (kg) | Appro×8048 |
| Payload (kg) | Appro×9757 |
| Wheel base (mm) | 4500 |
| Max speed (km/h) | 95 |
| Chassis Parameter | |
| Cabin | Flat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive |
| Drive form | 4×2 |
| Engine | Brand: ISUZU Model: 4HK1-TC50, 205hp Type: diesel, turbocharged, 6 cylinder. Displacement: 5193ml Emission standard: Euro 5 |
| Transmission | 6 forward,1 reverse, manual operated |
| Tire model | 10.00R20 |
| No.of tires | 6pcs, with 1pc spare tire |
| Superstructure Parameter | |
| Characteristic | 1. Sewage tank volume 10000 liter. 2. Sewage tank material is carbon steel,thickness 6mm. 3. Sewage suction pipe 1pcs, length 7m. 4. Hydraulic lifting sewage tank,rear cover can open. 5. Equipped with PTO. 6. Equipped with vacuum pump. 7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device. |
| Performance | (1) Vertical suction ≥ 7m. (2) Pumping speed : 45L/s. (3) Intake and exhaust diameter: 50mm. (4) Full tank pumping time ≤ 5min. (5) Sewage tank emptying time ≤ 4min. |
Discharge
Working Show
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Key words: Sewage suction truck, Sewer cleaning truck, Sewer Tanker Truck
