Product Details:
Payment & Shipping Terms:
|
| Material: | Q345R,Q370R,Q420R | Standard: | GB150-2011,GB/T19905-2005,ASME VIII Section II |
|---|---|---|---|
| Tank Capacity: | 25MT,25tons,25MT,25Ton | Tank Size: | 59500liters,59500L,59.5cbm,59.5m3 |
| Axle Brand: | BPW,FUWA,YORK,HJ | Thickness: | 12mm For Tank Shell And 14mm For End Plate |
| Design Pressure: | 1.61mpa,16.1bar | Overall Size: | 12990*2500*3990 Mm |
| Tire: | 12R22.5,315R22.5,295R22.5 | ||
| High Light: | 59500L LPG Tanker Trailer,13T Fuwa Axles LPG Tanker Trailer |
||

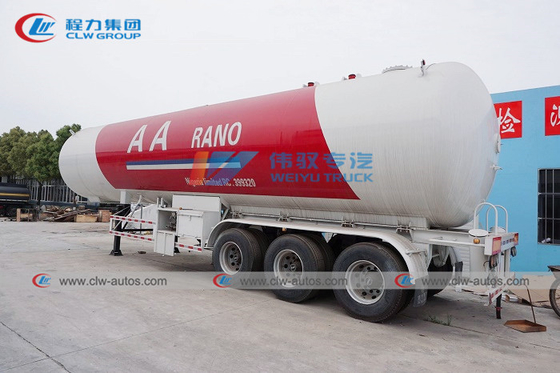

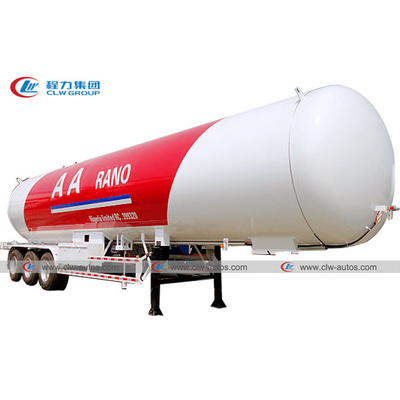

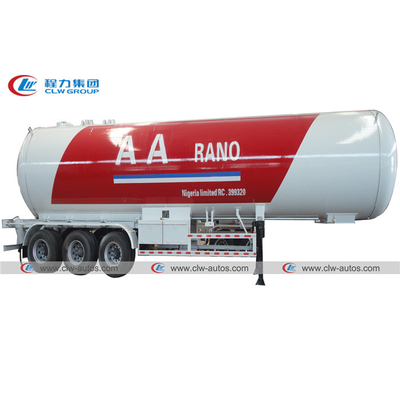

30MT 59500L LPG Tanker Trailer With 13T Fuwa Axles Double Loading and unloading sides
Product Description:
| VESSEL | |||
| To be constructed and tested according to Chinese GB/19905-2017 “LPG TRANSPORT TRUCK”,GB150.1~4-2011 “PRESSURE VESSEL” | |||
| Water capacity of Tank | 59.5CBM | ||
| Overall Dimensions(L*W*H) | 12990*2500*3990mm | ||
| Tank Dimensions(Inner Diameter*thickness*Length) | 2478*12*12781mm | ||
| Estimated Tare Weight (kg) | 15650 | ||
| Payload(kg) | 25000 | ||
| Total Weight(kg) | 40650 | ||
| Wheelbase(mm) | 7230+1310+1310 | ||
| Loading medium | Liquefied Petroleum Gas (propane) | ||
| Fluid Property | Flammable | ||
| Design Temperature | -19 ℃~+50 ℃ | ||
| Design Working Pressure | 1.61 Mpa/16.1 Bar | ||
| Hydraulic Testing Pressure | 2.12 Mpa/ 21.2 Bar | ||
| Corrosion Allowance(mm) | 1.00 | ||
| Weld Joint Factor | 1 | ||
| Major Tanker Materials and Thickness | Tanker body: Q345,12mm, | ||
| End plate:Q345R,14mm,double ellipse | |||
| Baffles: | |||
| VALVES AND FITTINGS | |||
| Emergency Shut-off Valves | Model | Vapour phase | QGJ43F-2.5-8 |
| Liquid phase | QGJ43F-2.5-7 | ||
| Size | Vapour phase | DN25 or DN50/1” or 2” as required | |
| Liquid phase | DN50 or DN80/2” or 3” as required | ||
| Type | Mechanical operated | ||
| Shuf off time | ≤10 S | ||
| Melting-close time | 75±5 | ||
| Safety Valve | Model | A412-25-16 | |
| Type | Build-in | ||
| Nominal pressure | 2.5Mpa/25 Bar | ||
| Valve base throat Diameter | 53 mm | ||
| Curb discharge pressure | ≤1.93 | ||
| Level gauge | YWJ-25A,manual rotation type with measuring range 50~2475mm | ||
| Pressure Gauge | YN-100T | ||
| Thermometer | WTQ280 | ||
| KING PIN AND COUPLING | |||
| 2” or 3” JOST king-pin,suitable for 4X2 or 6X4 truck head | |||
| BRAKING SYSTEM | |||
| WABCO RE 6 relay valve; Spring brake chamber; 45L air tanks | |||
| FABRICATION&TESTING | |||
| Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ | ||
| Flaw Detection of All Plate | 100% Flaw detection | ||
| Radio graphic testing of welding lines | 100% | ||
| Air leakage test for piping and valves | 100% | ||
| LOADING CABINET | |||
| All loading and unloading valves will be placed in a lockable metal cabinet at both sides of tanker trailer | |||
| The cabinet will be placed under the tanker between landing leg and axles | |||
| PAINT WORK | |||
| Two under coating of epoxidized premier | |||
| Two coats of | |||
| Customized color of tanker body and logo | |||
| RUNNING SYSTEM | |||

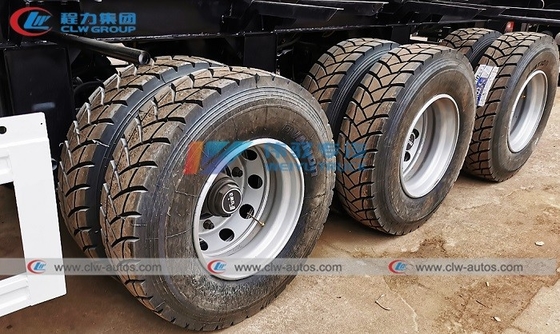

| Axles | 3*12T FUWA brand | ||
| Tire | 12R22.5 Tubeless tire ,12 pcs with one spare tire | ||
| Design speed | 80 km/h | ||
| Tire Carrier | 2 pcs | ||
Our Service:
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ:
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
