Product Details:
Payment & Shipping Terms:
|
| Truck Brand: | HOWO,DONGFENG,JAC,ISUZU LPG Bobtail Trucks | Material: | Q345R LPG Bobtail Trucks |
|---|---|---|---|
| Tank Size: | Customized | Loading Weight: | 2-20tonns (Customized) |
| Engine: | Diesel Engine MC11.36-40 Type | Horsepower: | 365hp |
| Purpose: | Skid Station Refilling,cylinder Filling LPG Bobtail Trucks | Design Pressure: | 1.61Mpa 16.1Bar |
| Drive Wheel: | 4x2, 6x4, 8x4, 2Axles, 3Axles, 4Axles | Storage: | LPG, Oil, Water, Lpg Propane Pentane, Gas |
| Emmission: | Euro2/3/4/5, Euro III/Euro IV/ EuroV LPG Bobtail Trucks | Name: | LPG Bobtail Trucks, LPG Bobtail Trucks GAS FILLING TRUCK / Lpg Cylinder Filling Truck, Gas Refuel Truck |
| Color: | Customized | ||
| High Light: | 35m3 LPG Bobtail Truck,8x4 Howo LPG Bobtail Truck |
||

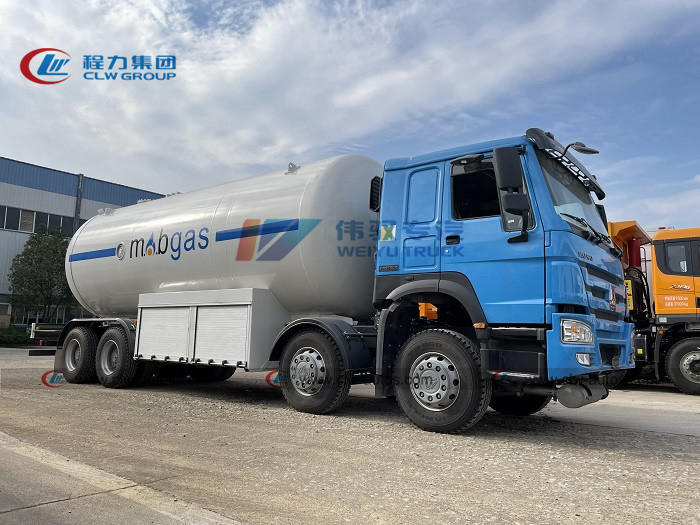

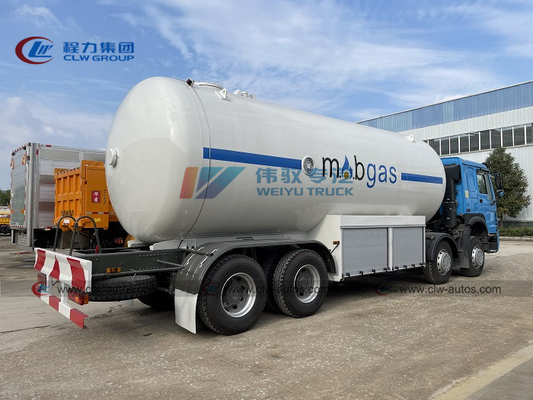

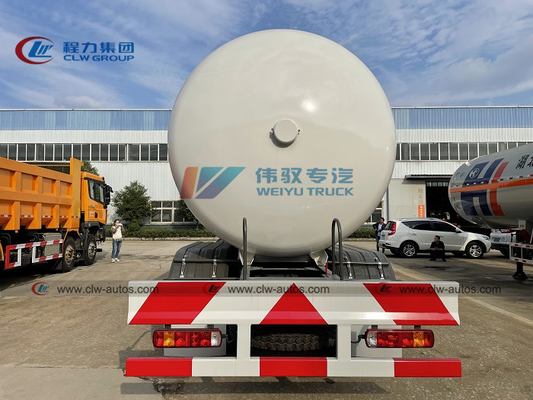

8x4 Howo Large Capacity 35m3 LPG Bobtail Truck
Specification
| Item No. | Parameters |
| Overall Dimension | 11735x2496x3230mm |
| Driving Model | left hand drive |
| Gross Vehicle Weight | 31000 kg |
| Curb Weight | 11280kg |
| Payload | 19720kg |
| Wheel Base | 1950+4600+1400mm |
| Front/rear Tread | 1540/2245 mm |
| Approach/Departure Angle | 15/20 degree |
| Front Axle | 6500 |
| Rear Axle | 7000/17500(Heavy duty design) |
| Engine | MC11.36-40,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling |
| Engine horsepower | 365HP EURO4 |
| Displacement | 10518mL (Diesel) |
| Max Driving Speed | 101 km/h |
| Tire | 80R22.5 (12 pcs with one spare) |
| LPG tank | |
| Volume: | 35,000Liters/35,000liters |
| Tank material: | Q345R |
| Tank diameter: | 2400mm |
| Tank thickness: | 12mm |
| End plate | 14mm |
| Tank length: | Customized |
| Gas phase | DN50 or according to customer request |
| Liquid Phase | DN80 or according to customer request |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Accessory | |
| LPG Pump | 1 pc,Chinese brand |
| radiator | 1 pc |
| Volume flow meter | 1 pc,English remarks with printer for receipt,Chinese brand |
| Filling hose with filling nozzle | 15M |
| Level Gauge | Rochester Float Ball type/located at side or rear of lpg tanker |
| Safety Valve | 1,DN80 |
| Tool and Valve Box | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Emergency Valve | 1 |
| Fender | Steel |
| Fire Extinguisher Holder | 2 |
| Exhaust shaft | At the front of truck for safety |
After sales service
Before purchasing:
1- Quick reply on customers' inquiry;
2- Professional suggestion on truck choice according to different countries.
3- Details quotation with spec.and reasonable price.
4- Welcome to visit our company before purchasing.
After purchasing:
1- Production pictures and video updated every week.
2- Customer can visit factory after truck completion or arrange third party inspection.
After-sales service:
1- English Operation Video
2- Free operation and technical train at factory but not include accommodation
3- Spare parts supplied at factory price whenever needed.
4- Engineers can be sent to your country and offer local engineering support and train.
FAQ
Q1: What kinds of propane truck I can order from your company?
A: We can supply propane truck from 5000Liters to 35000liters. Pls contact with us for more technical details discussion.
Q2: What is your production standard of propane truck? Whether your propane truck exported to others countries?
A: propane truck is produced strictly according to GB150.1~4,we supplied lpg bobtail to AA RANO,Hass Petroluem,NIPCO and so on.
Q3: What's the difference between your company and other chinese supplier?
A: As the top manufacturer of lpg trucks and products for more than 15 years,our sales are more professional and they will offer you suggestion. And we took part in lpg summit in Africa and Asia every year.
