Product Details:
Payment & Shipping Terms:
|
Product Name: | Road Sweeper Truck, High Pressure Road Washing | Truck Chassis Brand: | JMC, DONGFENG, HOWO, FAW Other China Brand |
---|---|---|---|
Dustbin Capacity: | 5CBM, 5000Liters | Body Type: | Vacuum Sweeper Sweep Sweeping Suction |
Watering Tank: | 4CBM, 4000Liters | Truck Type: | Water Praying Sweeper Tank, Street Cleaning |
Drive Type: | Right Hand Drive, Left Hand Drive | Drive Model: | 4X2, 6-Wheeler. 6X4, 10 Wheeler |
Clean Water Tank: | 4m3, 5m3, 4000liters. 5cbm | Specification: | 6000L, 8000L, 10000L, Small Sizes |
After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service,Overseas Third-party Support Available | Warranty: | 1 Year,12 Months |
Key Word: | Road Sweeper Truck,road/electric Sweeper,road Cleaning Vehicle | Application: | Street Cleaning,airport,Outdoor,Sweeping The Road |
Power: | 130 Hp | Cleaning Width: | 3.4M,1600mm |
Engine: | 37kw, Cummins Diesel, 95hp, Electric, 120hp | Type: | Mechanical Sweeper, Vacuum Suction, Mechanical Sweeper & Vacuum Suction, Brushes, Water Sprinkler Wash |
High Light: | Dongfeng Road Sweeper Truck 5M3,5cbm Dust Collection Road Sweeper Truck |

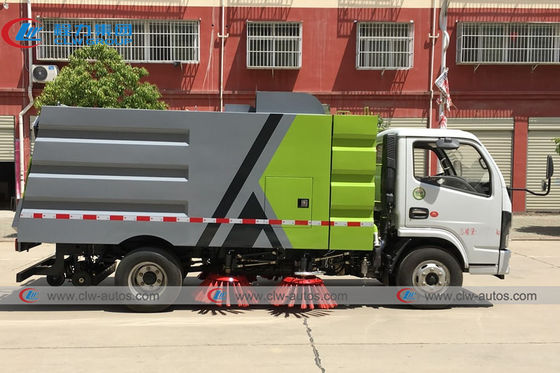

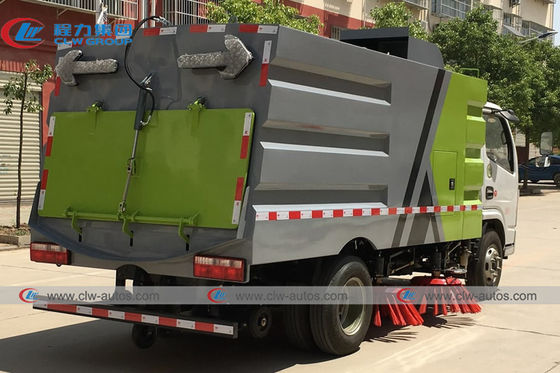

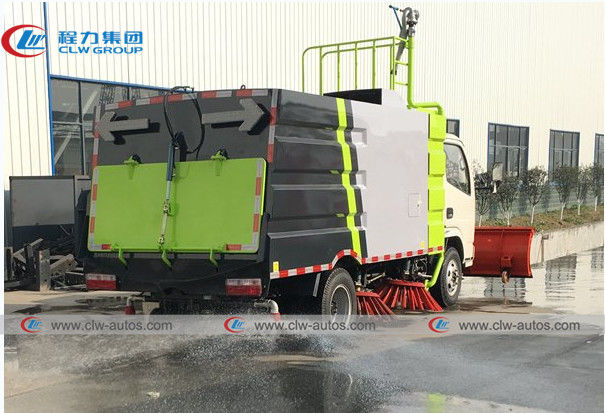

Dongfeng 4x2 5cbm road Waste cleaning truck 5M3 Dust collection Truck
Features
1. Four sweeper brush and sucker for sweeping combination with excellent sweeping ability,
2. each side of the broom or brush can work at the same time, or work independently on each side,
3. cleaning device mechanism is simple and reliable, which is hard to damage;
4. all stainless steel dust bins, water tanks,
5. hydraulic system core components are all imported;
6. cleaning system powered by auxiliary engine, which do not interfere with vehicle power.
Specification :
Model | YZR5080TSLE | ||
Overall dimensions | 6200×2000×2590mm | Gross Weight (kg) | 8275 |
Wheelbase (mm) | 3308 | Curb Weight (kg) | 3900 |
Front Track (mm) | 1740 | Approach Angle | 20 |
Rear Track (mm) | 1610 | Departure Angle | 11 |
Number of axles | 2 | Front Overhang (mm) | 1130 |
Traction system | 4×2 | Rear Overhang (mm) | 2170 |
Max speed (km/h) | 103 | Number of Tyres | 6 |
Front Axle Load (kg) | 3300 | Tyre Specification | 7.5R16 |
Rear Axle Load (kg) | 4975 | Allowable Cab Passengers | 2 |
Paint | Any Color Available | Fuel | Diesel |
Water tank volume(cbm) | 4cbm | Garbage tank volume(cbm) | 5cbm |
Max.cleaning Width(mm) | 2800 | Maximum Sweeping Capacity(cbm/h) | 40,000 |
Sweep Speed (km/h) | 3-25 | Sweeping Efficiency | ≥95% |
Factory sence
ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
