HOWO 8cbm 4*2 Vacuum Sewage Suction Truck Vacuum Jetting Truck

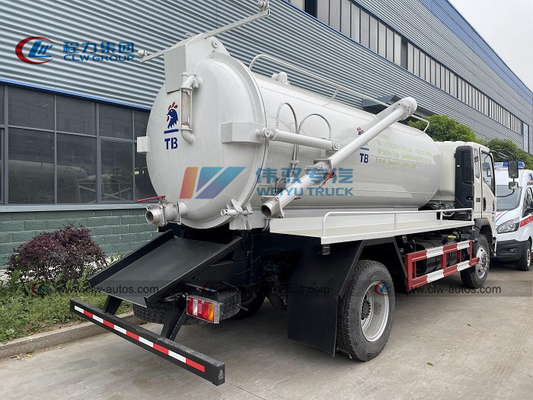

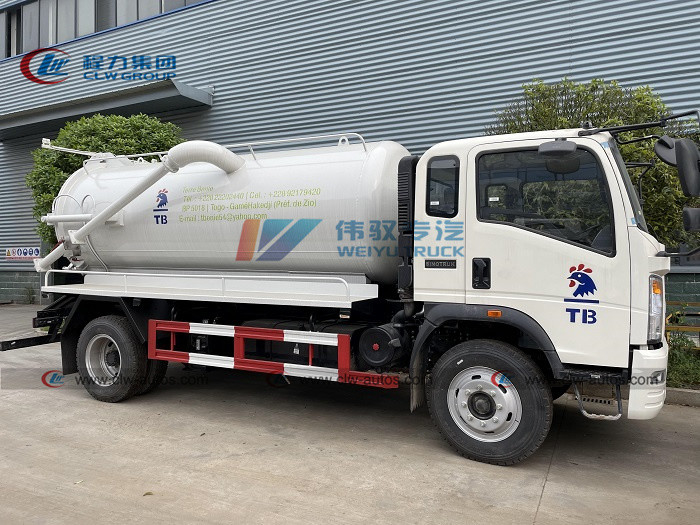

Large Image : HOWO 8cbm 4*2 Vacuum Sewage Suction Truck Vacuum Jetting Truck

Product Details:

Place of Origin:	Suizhou,China
Brand Name:	CLW
Certification:	CCC,ISO,BV,SGS
Model Number:	CLW5529YTS

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	negotiable
Packaging Details:	Naked packing,Ro-ro,Bulk Ship
Delivery Time:	30-35 days after received advance payments
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 units per month

Contact Now

Detailed Product Description

Brand:	HOWO,ISUZU,Dongfeng,FOTON,Shacman,FAW,JAC,JMC.	Fuel:	Diesel
Wheelbase:	3800mm	Tank Material:	Carbon Steel,
Thickness:	4mm	Vacuum Tank Size:	8,000liters,8cbm, 8m3
Discharge:	Tank Body Hydraulic Lifting	Vacuum Pump:	Optional
Sewage Suction Pipe:	8 Meters	Suction Time:	Less Than 5 Minutes
Warranty:	One Year	Color&Logo:	Customized
Delivery Time:	30 Days
Highlight:	4x2 Vacuum Sewage Suction Truck , HOWO 8cbm Sewage Suction Truck

HOWO 8cbm 4*2 Vacuum Sewage Suction Truck Vacuum Jetting Truck

Product Description

The rear door can be opened hydraulically, with the tank lifting function, it is more convenient to dump
Tank material: high-quality carbon steel plate, 8mm thick,
Truck accessories: vacuum oil pump, water and oil separator, anti-overflow valve, multi-way reversing valve, vacuum pressure gauge, sight window or sight pipe
The rear of the tank is 100 ball valve, the sewage suction pipe is 8 meters.
Optional vacuum pump

Complete Vehicle Parameter
Vehicle	HOWO
Overall dimension (mm)	6810×2180×2350
Sewage tank (m3)	8
Gross vehicle weight (kg)	Appro×9890
Curb weight (kg)	Approx2950
Payload (kg)	Appro×6940
Wheel base (mm)	3800
Max speed (km/h)	95
Chassis Parameter
Cabin	Half row cabin, air conditioner, 3 passengers,left hand drive
Drive form	4×2
Engine	Brand: YUNEI 115hp Type: diesel, turbocharged,4 cylinder. Displacement: 3760ml Emission standard: Euro 4
Transmission	6 forward,1 reverse, manual operated
Tire model	8.25R20 12PR
No.of tires	6pcs, with 1pc spare tire
Superstructure Parameter
Characteristic	1. Sewage tank volume 8,000 liter. 2. Sewage tank material is carbon steel,thickness 6mm. 3. Sewage suction pipe 1pcs, length 7m. 4. Hydraulic lifting sewage tank,rear cover can open. 5. Equipped with PTO. 6. Equipped with vacuum pump. 7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.
Performance	(1) Vertical suction ≥ 7m. (2) Pumping speed : 45L/s. (3) Intake and exhaust diameter: 50mm. (4) Full tank pumping time ≤ 5min. (5) Sewage tank emptying time ≤ 4min.

Sewage suction truck diagram

HOWO 8cbm 4*2 Vacuum Sewage Suction Truck Vacuum Jetting Truck 0

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
