Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Foton, Sinotruk HOWO, Isuzu, Etc. | Drive Model: | RHD&LHD |
|---|---|---|---|
| Wheelbase: | 3360mm | Engine Power: | 130HP |
| Water Tank Capacity: | 2cbm 2m3 2cubic Meter 2000liters 2ton | Sewage Tank Capacity: | 3cbm 3m3 3cubic Meter 3000liters 3ton |
| Tank Material: | 6mm Carbon Steel | Vacuum Pump: | Famous International Brand |
| Fecal Suction Pipe: | 7m | Suction Time: | No More Than 5mins |
| Effective Suction Range: | No Less Than 7m | Logo And Pattern: | As Customer's Request |
| Warranty: | 1 Year | ||
| High Light: | ISUZU Sewer Dredging And Cleaning Truck,3m3 Septic Tank Vacuum Suction Truck,Sewer Dredging And Cleaning Truck |
||

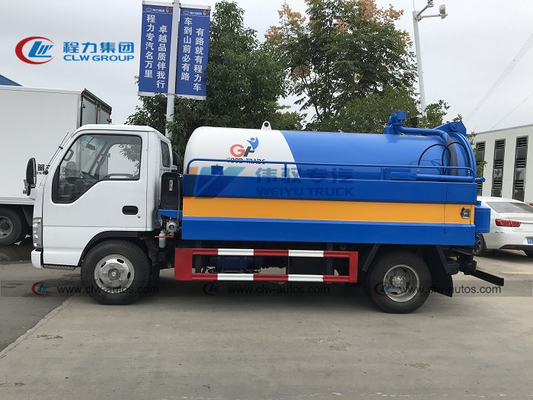

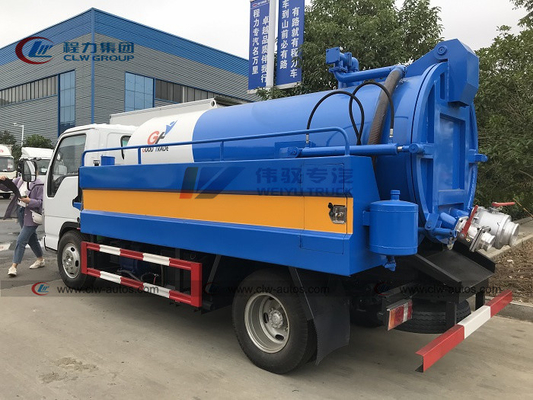

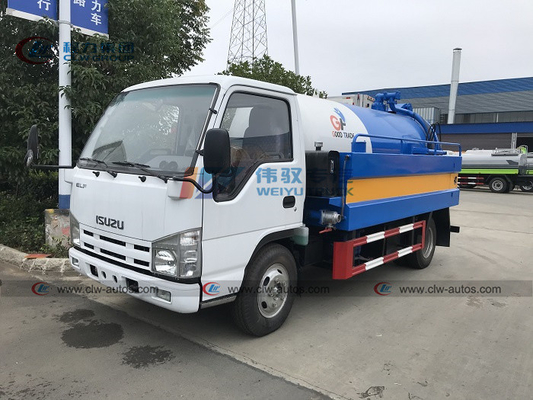

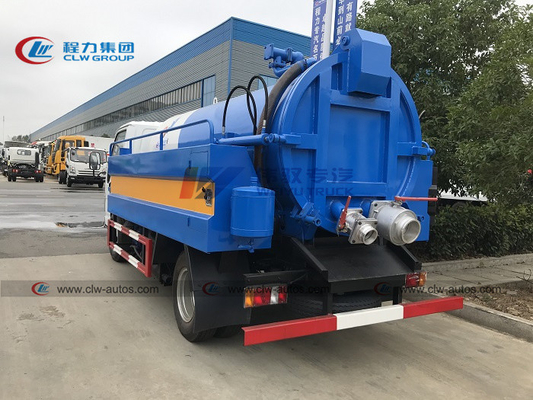

Mini ISUZU 2m3 Water Tank 3m3 Septic Tank Sewer Dredging and Cleaning truck
Product description
Specification
| Vehicle Main Dimensions | Cab type | Single row cab |
| Overall dimension(L*W*H)(mm) | 5900×1800×2160 | |
| Wheelbase (mm) | 3360 | |
| Axle number | 2 | |
| Drive type | 4*2 | |
| Steering type | LHD/RHD | |
| Max. Drive Speed (km/h) | 105 | |
| Curb weight (kg) | 2070 | |
| Chassis parameter | Chassis brand | ISUZU |
| Transmission | Manual, 6forward and 1 reverse | |
| Brakes | air brake | |
| Tire | 7.00R16 Steel tire | |
| Engine parameter | Engine Brand | ISUZU |
| Fuel type | Diesel | |
| Horse Power(hp) | 130hp | |
| Emission Standard | Euro3 | |
| Superstructure Parameter and main performance | Sewage tank volume | 3000liters/3cbm |
| Sewage tank material | 6 mm good quality carbon steel | |
| Vacuum Pump | Imported Italy high quality vacuum pump or chinese vacuum pump SK-12 | |
| Water tank volume | 2000liters/2cbm | |
| High pressure pump | Flow meter: 215L/min | |
| Standard configuration | 60m long high pressure pipe, inspect window, one gravity mouth, 8m long suction pipe, etc | |
| Main performance | Suction time ≤ 5min Effective suction range ≥ 9m |
|
| Main function | Cleaning city sewer, pipeline dredge, suction sewage,etc | |
| Optional | watering |
Main Structure
Working Scene
Factory overview
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Fecal Suction tank we can get from your company?
A: we can supply 2CBM to 18CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
