Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Foton, Sinotruk HOWO, Isuzu, Etc. | Drive Model: | Optional |
|---|---|---|---|
| Wheelbase: | 3380mm | Engine Power: | 140HP |
| Water Tank Capacity: | 2cbm 2m3 2cubic Meter 2000liters 2ton | Sewage Tank Capacity: | 3cbm 3m3 3cubic Meter 3000liters 3ton |
| Tank Material: | 6mm Carbon Steel | Vacuum Pump: | Optional |
| Fecal Suction Pipe: | 7m | Suction Time: | No More Than 5mins |
| Effective Suction Range: | No Less Than 7m | Logo And Pattern: | Customized |
| Warranty: | 1 Year | ||
| High Light: | Carbon Steel Combined Jet Vacuum Truck,140HP Jet Vacuum Truck |
||

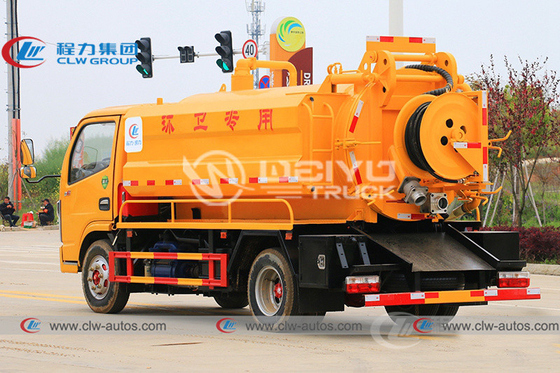

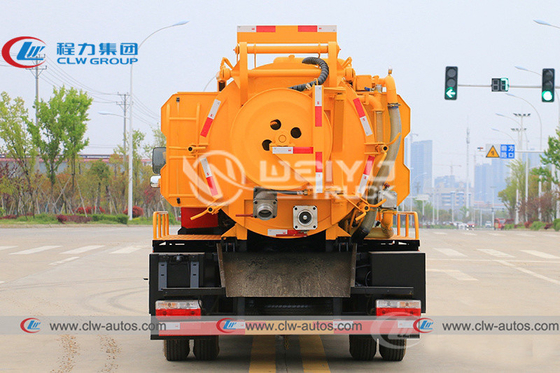

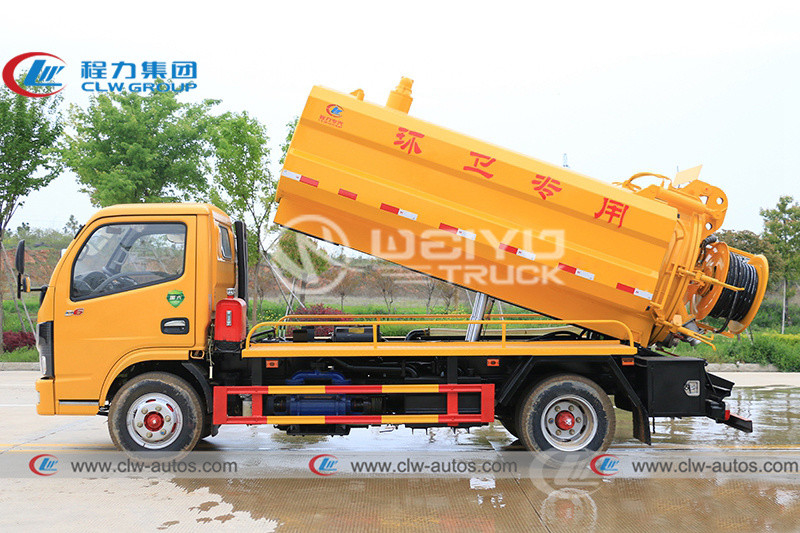

Carbon Steel Material 140HP 5000 Liters/5cbm Gallons Combined Jet Vacuum Truck Sewer Cleaning Truck
Product description
Specification
| Vehicle Main Dimensions | Cab type | Single row cab |
| Overall dimension(L*W*H)(mm) | 6550×2370×2530 | |
| Wheelbase (mm) | 3380 | |
| Axle number | 2 | |
| Drive type | 4*2 | |
| Steering type | LHD/RHD | |
| Max. Drive Speed (km/h) | 90 | |
| Curb weight (kg) | 3000 | |
| Chassis parameter | Chassis brand | DONGFENG |
| Transmission | Manual, 6forward and 1 reverse | |
| Brakes | air brake | |
| Tire | 8.25-16 Nylon tire | |
| Engine parameter | Engine Brand | |
| Fuel type | Diesel | |
| Horse Power(hp) | 108hp | |
| Emission Standard | Euro3 | |
| Superstructure Parameter and main performance | Sewage tank volume | 3000liters/3cbm |
| Sewage tank material | 6 mm good quality carbon steel | |
| Vacuum Pump | Imported Italy high quality vacuum pump or chinese vacuum pump SK-12 | |
| Water tank volume | 2000liters/2cbm | |
| High pressure pump | Flow meter: 215L/min | |
| Standard configuration | 60m long high pressure pipe, inspect window, one gravity mouth, 8m long suction pipe, etc | |
| Main performance | Suction time ≤ 5min Effective suction range ≥ 9m |
|
| Main function | Cleaning city sewer, pipeline dredge, suction sewage,etc | |
| Optional | watering |
Main Structure
Factory overview
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
