Product Details:
Payment & Shipping Terms:
|
| Product Name: | Road Sweeper Truck, Vacuum Street Cleaning | Truck Chassis Brand: | DONGFENG, HOWO, ISUZU Other China Brand |
|---|---|---|---|
| Dustbin Capacity: | 4cbm/4000liters/4m3 | Body Type: | Vacuum Sweeper Sweep Sweeping Suction |
| Water Container: | 2cbm/2000liters/2m3 | Truck Type: | Water Praying Sweeper Tank |
| Drive Type: | LHD | Drive Model: | 4X2, 6-Wheeler 4*2 |
| Specification: | Small Size | Container Material: | Stainelss Steel |
| Brush: | 4 Brushes, 2 At Each Side | Logo&painting: | As Per Customer's Requirements |
| High Light: | Dongfeng Four Brushes Street Sweeper Truck,Stainless Steel Street Sweeper Truck 6cbm |
||
1. Single row cab with 2 passengers
2. Fast 6DS60T-D gear box with manual operation
3. 75R17.5 tubeless tire
4. Cummins engine 125HP
5. 6cbm loading capacity
Product advantages:
1- All function contained in 1 control panel in cabin.
2- It is equipped with hydraulic controlled brush with automatic retreating system in order to avoid collosion.
3- It Install floating suction pan to adjust different road height.
4- The garbage bin is made of stainless steel with a filter plate inside.
5- The cleaning structure is center 4 brush and rear suction cup.
6- It can be equipped with pre-shooting, post-sprinkling, spraying, self-cleaning reel according to customer's requirements.
Product descriptions:
1. Chassis: Dongfeng
2. Engine: Cummins 125hp
3. Tank material: stainless steel
4. Capacity of tank: 4cbm dust tank and 2cbm water tank
5. Operation system: hydraulic control loading & unloading
6. Operation way: Automatic Key Control & Hydraulic Handle Control
| Vehicle name | Road sweeper truck | Condition | New condition/Left hand drive/4x2 | ||
| Cab | single row,with two seat,with A/C | Overall dimension (mm) | 5995×2150×2350 | ||
| Curb weight (kg) |
5630 | Wheel base (mm) |
3308 | ||
| Engine | Model | Cummins | Horse power(hp) |
125 | |
| Type | Diesel | Displacement(ml) | 3347 | ||
Performance |
Max. vehicle speed (km/h) |
95 | Running angle(°) | Approach angle | 19 |
| F/R overhang(mm) | 1085/1430 | Departure angle | 14 | ||
| Emission standard | Euro 4 | Drive type | 4X2 | ||
| Description of gearbox | Manual, 6 forward &1 reverse | Steering type | LHD,power steering | ||
| Clutch | Diaphragm spring clutch | Brake system | Air brake system | ||
| Specification of tyre | 75R17.5 | Number of tires | 6+1 | ||
| Frame | Stamping riveted structure | Number of leaf spring | 7/4+5 | ||
| Max.grade ability | 30% | Min. turning diameter | 18m | ||
| Brake distance | ≤10m | Min.ground clearance | 250mm | ||
| Auxiliary engine model | B140 33 | Power of auxiliary engine | 77HP | ||
| Water tank | Capacity 5000L,made of 3mm stainless steel | Dust tank | Capacity 5000L,made of 3mm stainless steel | ||
| High pressure washing | Washing speed | 3~20 km/h | |||
| Washing width | 3.5m | ||||
| Water pressure | 12 MPa | ||||
| Water pump flux | 115 L/min | ||||
| Suction and sweeping | Cleaning efficiency | ≥95% | |||
| Suction and sweeping width | 3.5m | ||||
| Max.cleaning capacity | 60000m2/h | ||||
| Running speed | 3~20 km/h | ||||
| Hydraulic system | Hydraulic pressure | 16 MPa | |||
| Hydraulic oil capacity | 60 L | ||||
| High pressure water system | Water valve type | Hydraulic high pressure ball valve | |||
| Water valve pressure | 7 MPa | ||||
| Nozzle type | High pressure washing type | ||||
| Water filter | Strainer mesh | ||||
| High pressure washing reel | 20m | ||||
| Dish brushes | Type | 2 pcs at middle,driven by hydraulic motor,revolution is adjustable,controlled individually,automatic avoidance | |||
| Diameter | 850 mm | ||||
| Speed | High 110r/min, middle 80r/min,low 50r/min | ||||
| Angle | Forth tilt:4-6°, outward tilt:4-7° | ||||

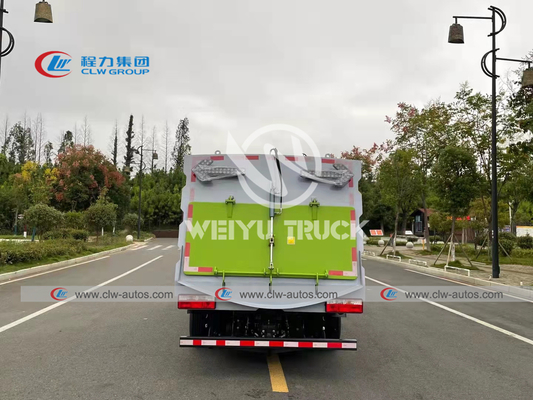

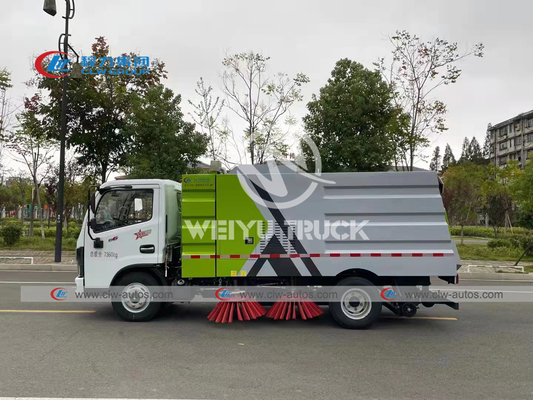

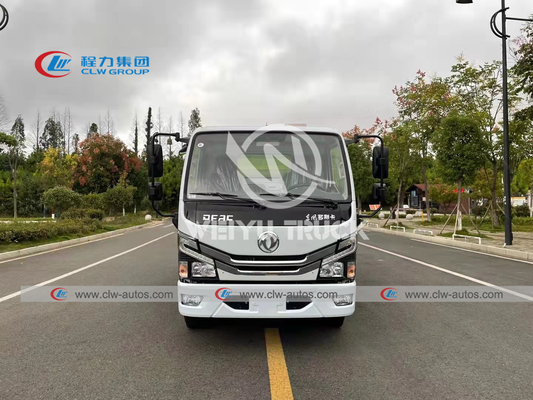

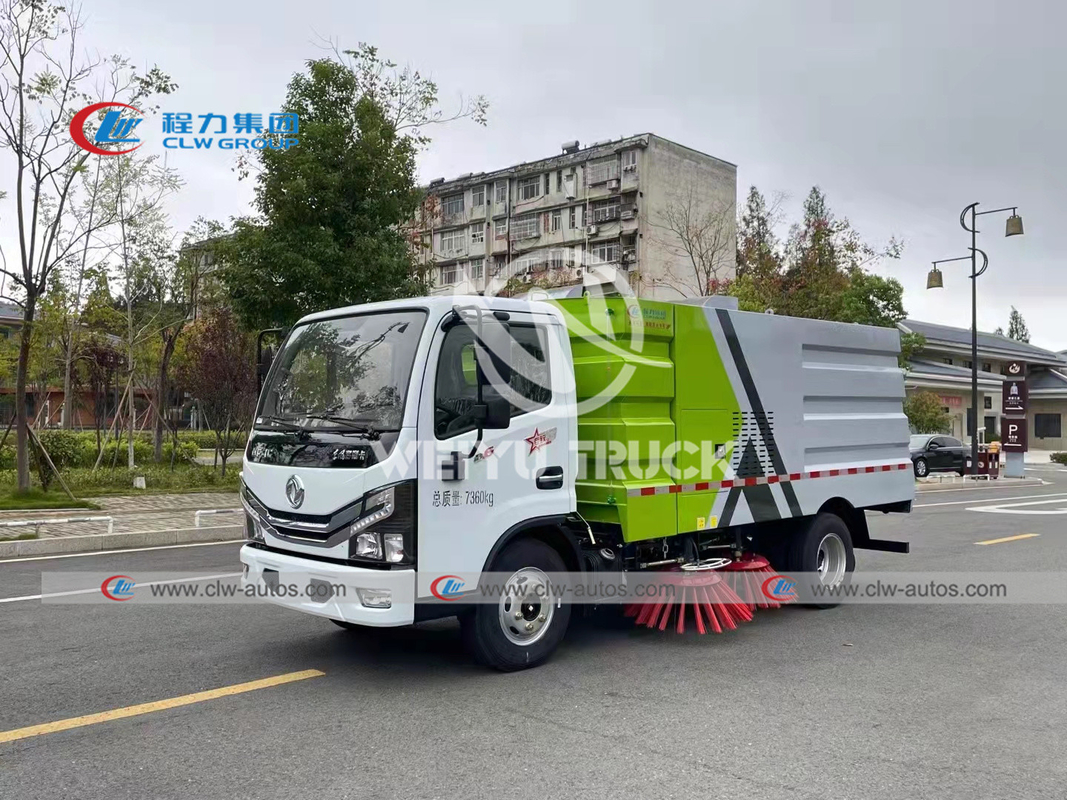

Reference pictures
