Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Foton, Sinotruk HOWO, Isuzu, Etc. | Drive Model: | Left Hand Drive |
|---|---|---|---|
| Fuel Type: | Diesel Engine | Engine Power: | 185HP |
| Gearbox: | 8Forwards & 2 Reverse, Manual Type | Tank Material: | 5mm Carbon Steel |
| Tank Size: | 11cbm/11m3 | Vacuum Pump: | Chinese Brand, Italy Brand Or Other Popular Brand |
| Sewage Suction Pipe: | 5mm ~ 8mm | Suction Time: | <5min |
| Effective Suction Range: | >8m | Logo And Pattern: | As Customer's Request |
| Delivery Time: | 30-35 Working Days | Warranty: | 1 Year |
| High Light: | Sewer Jetting Truck 11cbm,Plunger Pump Vacuum Sewer Jetting Truck |
||
Product Descriptions:
1. It is equipped with strong vacuum pump for faster sewage suction speed.
2. It is equipped with high pressure water jetting that can help clearing obstacles .
3. The truck's self-dumping tank is openable rear door in order to discharge sewage efficiently.
4. Ultra-long suction pipe is available to further extend working area.
5. The truck using famous Italian Jurop &BP, American moro vacuum Pump.
6. It install remote control system.
Main specifications:
1. YUNEI diesel engine 185hp
2. Imported Italy vacuum pump or Chinese famous vacuum pump
3. Suction time is less than 5 minutes.
4. Carbon steel
5. 4cbm water tank and 7cbm sewage tank
Product Specification
|
Technical Parameters |
|
|
Overview |
|
|
Name |
Sewage Jetting Truck |
|
Dimension(LxWxH) |
7100*2250*2900(mm) |
|
Cab type |
single row |
|
Kerb Weight |
7500 Kg |
|
Passenger |
2 |
|
The Parameters of Chassis |
|
|
Manufacture |
Dongfeng |
|
Driving Type |
4*2 left hand drive |
|
Wheel Base |
3800 mm |
|
Gearbox |
Manual, 8 forward and 2 reverse |
|
Breaks |
air break |
|
Tyre |
8.25R20 |
|
The Number of Tyre |
6+1(6pics with one spare tyre) |
|
Engine |
YUNNEI 185hp Euro3 |
|
Leaf Spring Number |
8/13,8/12 |
|
Superstructure Parameter and main performance |
|
|
Cleaning Tank volume |
4cbm |
|
Cleaning Tank material |
good quality carbon steel; round shape |
|
Sewage tank volume |
7cbm |
|
Sewage tank material |
good quality carbon steel |
|
Pump |
Imported Italy high quality vacuum pump or chinese vacuum pump |
|
Standard configuration |
60m long high pressure pipe, 10 high pressure sprayers,inspect window, one gravity mouth, cleaning apparatus,8m long suction pipe, etc |
|
Main performance |
Suction time ≤ 5min |

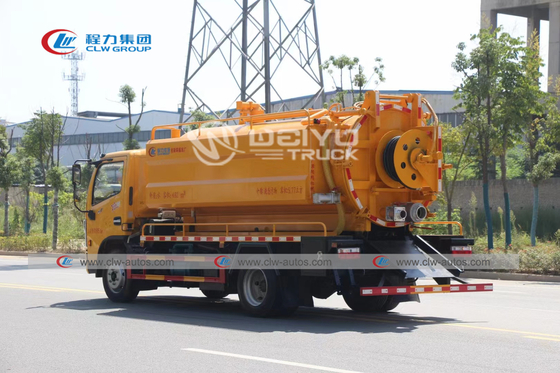

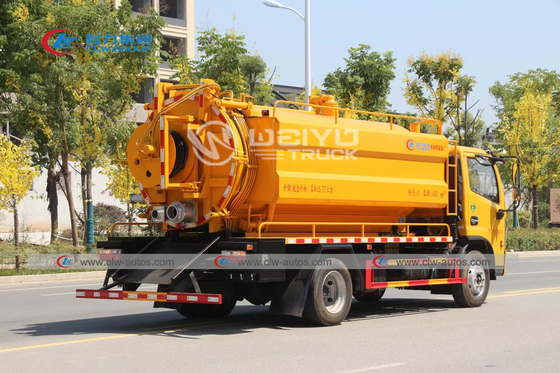

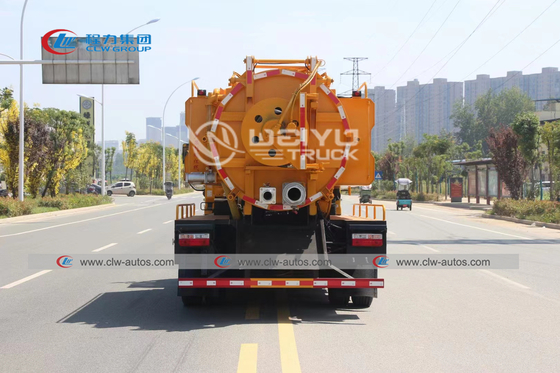

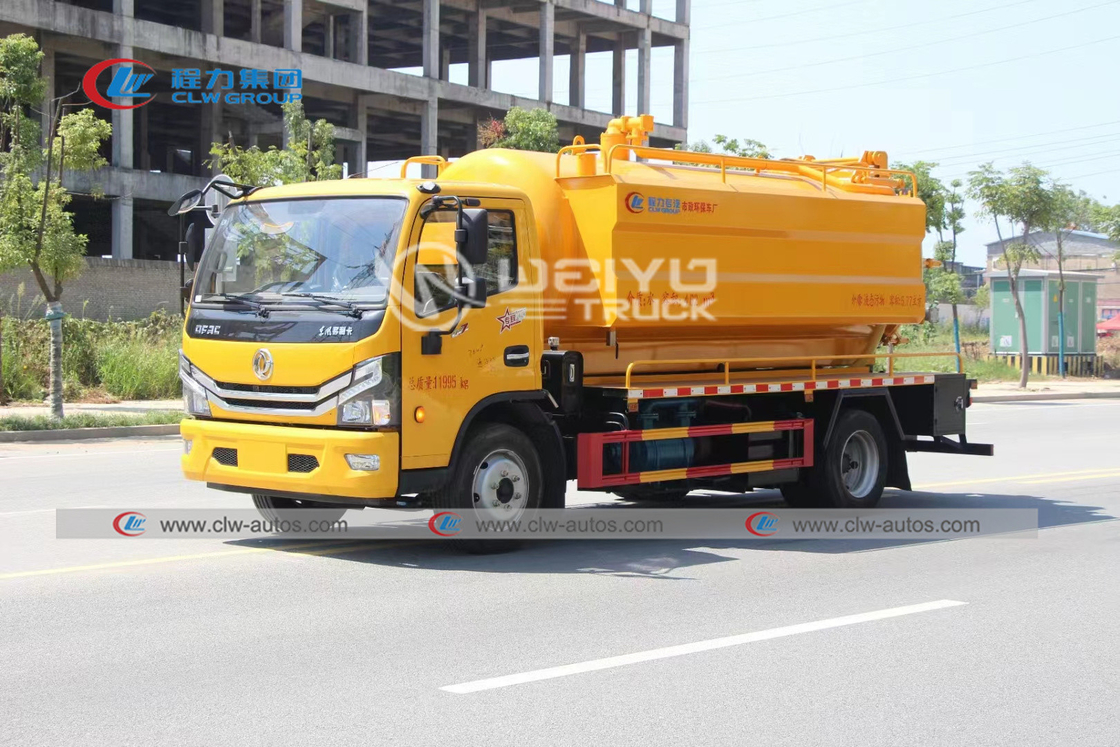

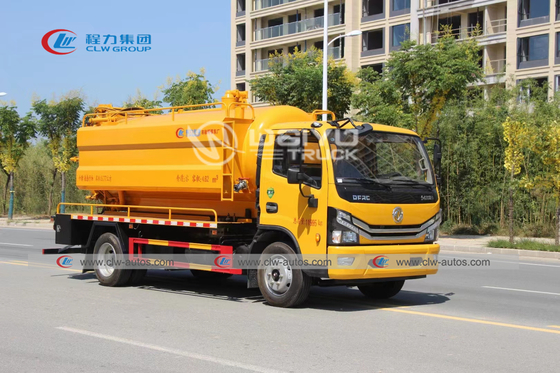

Reference Photos
Working Scene
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details: +86 13971508969.
FAQ
Q1: What size sewage suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Have you supplied sewage suction truck to any overseas companies?
A: Yes, we have supplied fire trucks to African, south-east Asian, south-American and other more than 80 countries and regions.
Q3: Can we adopts International brand parts or accessories for fire truck?
A: Sure, we already cooperated with many international brand suppliers.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
