Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Road Sweeper Cars, Vacuum Sweeping | Type: | Electric Electrical Drive |
|---|---|---|---|
| Battery: | 48V200Ah, Or 48V150Ah | Sweeping Width: | 2300mm |
| Working Hours: | 6-8 Hours | Drive Motor: | 2200W |
| Rollor Brush Motor: | 1000W | Water Tank: | 400L |
| Driving Speed: | 0-12km/hour | Equipment: | Fog Cannon, Electric High Pressure Pump, Atomization |
| High Light: | 4Wheels Road Sweeper Vehicle,5Brushes Road Sweeper Vehicle,Fog Cannon Road Sweeper Truck |
||
Product Introduction:
1. Floor sweeper road cleaning machine suits flat ground and well-conditioned areas, with extensive utilizations in mining spots, offices, storehouse, school and residential communities etc.
2. Electric Street Sweeper is added the fully closed cab with full visibility as the cab forward design that give operator a clear view of the sweeping area.
3. The Sweeper is eco-friendly, when people use the electric sweeper, just push the operation buttons and easily to clean leaves, rocks, cigarette butts, paper, nails, etc.
4. It is mainly used to sweep the floor of factory workshop, yard and narrow street.
Specification for Electric 4 Wheels 5 Brushes Ride on High Pressure Community Road Sweeper Cleaning Vehicle with Fog Cannon:
| Dimension | 2450*1950*2000mm |
| Weight | 1800kg |
| Turning Radius | 0 |
| Working Speed | 0-8km/h |
| Driving Speed | 0-12km/h |
| Climb Ability | >35% |
| Obstacle surmountable height | 5cm |
| Filtration area | 12m2 |
| Width of Main brush | 700mm |
| Diameter of Side brush | 500mm |
| The water sweeping area of once time is 80000 square meters | |
| Power supply | 48v100ah Lead acid maintenance free battery |
| Sweeping Width | Max. 1900mm |
| Sweeping Square | 8000-15000m2/h |
| Water tank | 220L |
| Garbage Bin | 240L |
| Driving Power(Motor) | 1500w |
| Working time continuously | 6-8h |
| Working Power(Motor) Main brush + fan+side brush+Vibration dust | 700+500*2+80*4+50*2 |
| Continuous flushing time | |
| Water sweeping width is 4meters | |

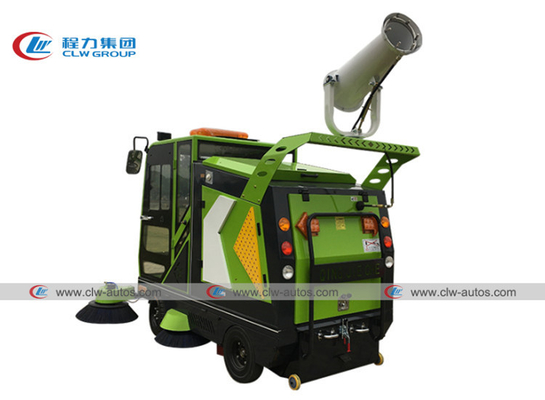

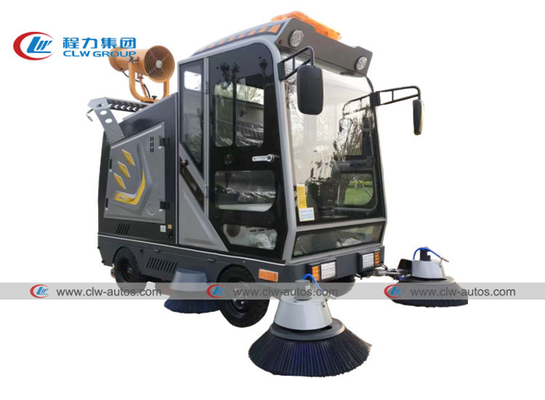

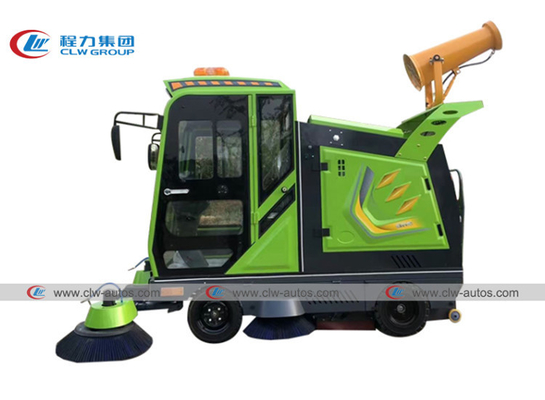

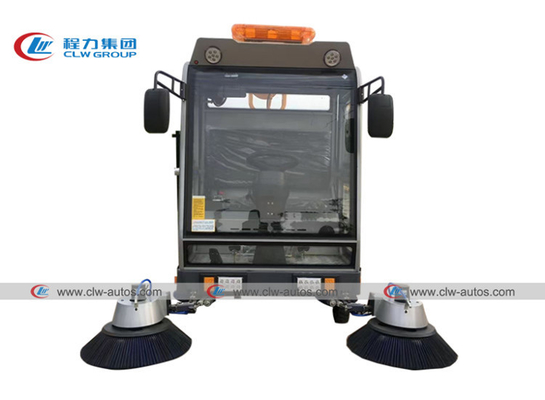

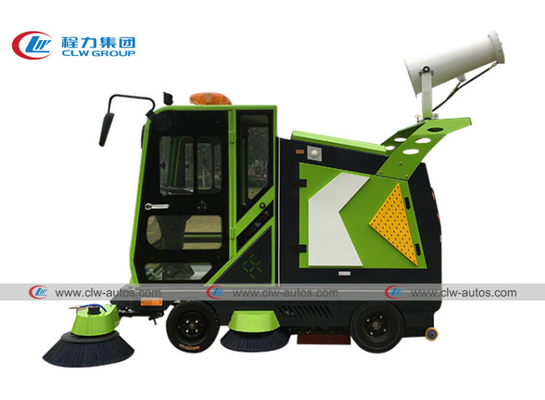

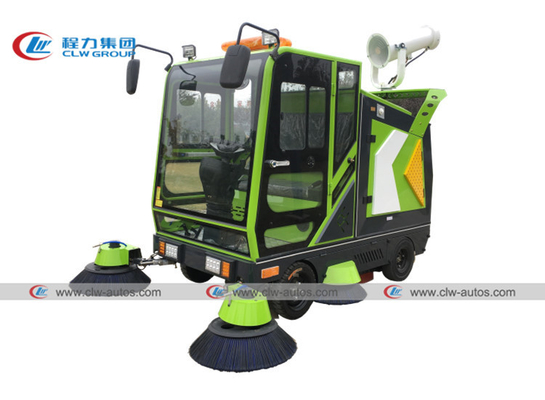

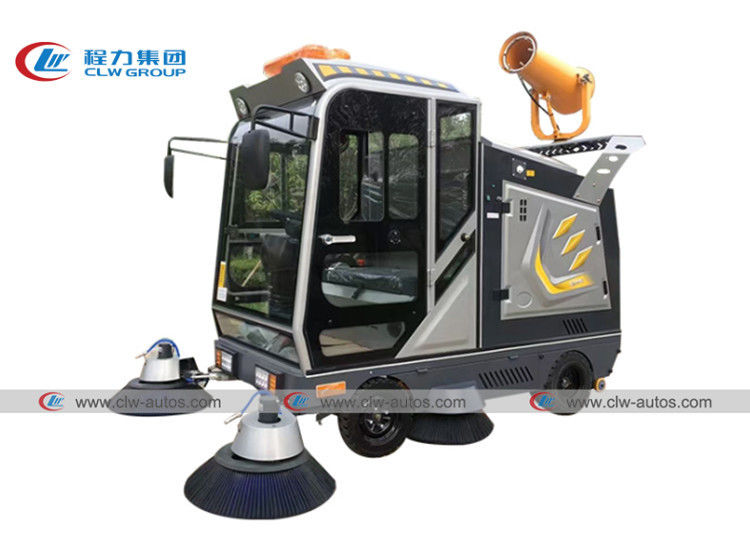

More pictures for reference:
What is the difference between electric sweeper and fuel sweeper?
First, the electric sweeper is small, simple to operate and easy to use. Without a driver's license, ordinary cleaning aunts can drive. The fuel sweeper has a large body and is inconvenient to operate. The driver needs a driver's license to drive. It is not recommended.
Second: the electric sweeper is environmentally friendly. It uses new energy - electric energy. It only costs 5 yuan a day, and the driving time is about 8-10 hours. Fuel oil sweeper uses diesel or gasoline, which has high cost, serious exhaust emission and environmental pollution, so it is not recommended.
Third, the electric sweeper has low noise when working, and can be used in hospitals, schools and other places with limited sound. The fuel oil sweeper is noisy when working, which affects nearby residents and is not recommended.
| Road sweepers are mainly divided into: power system, suction and sweeping system and garbage cleaning system. The power system of the sweeper is divided into diesel /, liquid propane gas and battery. The driving system of the sweeper is selected according to the nature of the garden, area, type of garbage, operation time and other factors to meet the clean needs of different customers. The utilization of Diesel / gasoline driving mode depends on the necessary clean environment and the type of garbage. As usual, For example, diesel / gasoline type can be used for large-area outdoor cleaning with more garbage and low requirements for silence and environment. Suction system of sanitation sweeper: it is necessary to equip with high-power fan, so that the garbage can be completely sucked into the shell filter dust container. The filter container continuously shakes and vibrates when things happen, which can make the machine just stay in things forever, but will not produce signs such as blockage. Garbage dumping system of road sweeper: the garbage dumping of road sweeper is completed by the decision control panel. Before dumping, the cover of the dustbin is closed. Pull the control lever from the future to lift the dustbin for dumping. When the dustbin is put down, push the control lever forward to the same position The removal system and garbage dumping system of sanitation sweepers can be commonly referred to as garbage cleaning system. It is mainly composed of main brush, side brush and dustbin. The side brush is required to be made of dense high-grade materials and equipped with springs, which can effectively bear the blow and further cover the side wheel of the brush plate. The volume of the road sweeper is determined according to the wheelbase of the chassis. The shorter the wheelbase, the smaller the volume, and the cheaper the corresponding price. It is very important to choose the appropriate model according to your own working radius. Standard configuration of road sweeper: 1. Equipped with four sweeping brushes, half of which are steel wire clamped, so as to improve the brushing capacity, and the sweeping plate is reinforced to improve the service life. 2. Equipped with Jiangling Isuzu 57 kW auxiliary engine and Cummin s 140 HP auxiliary engine for models above 145, it has strong power and guaranteed suction. 3. Hydraulic motor, control switch and vtoz solenoid valve group are well-known brand accessories with ultra-low failure rate. 4. Xiamen South super release clutch (warranty 2 years), Taiwan Beibo maintenance free fan has a long service life. 5. Stainless steel dustbin and water tank, tail led arrow light, manual emergency system. 6. The maximum cleaning width is 3.2-3.5m, and the maximum suction particle size is 12cm. Sweeper options: 1. The optional monitoring system can see the cleaning and reversing image in the cab in real time 2. All the trucks could be equipped with the optional watering function, with the front flushing and rear spraying functions of the sprinkler. 3. Voice alarm function, multi voice reminder alarm, more assured to use. 4. The dustbin self-cleaning device uses a high-pressure nozzle to carry out self-cleaning operation on the dustbin. |
