| Truck Brand: | Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Vacuum Sewage Suction Truck | Driving Model: | LHD Vacuum Sewage Suction Truck |
|---|---|---|---|
| Engine: | Diesel Engine | Material: | Q235 Carbon Steel |
| Tanker Size: | 5000Liters 5Tonnes 5T 5m3 3000 Gallons | Loading Capacity: | 5tonnes 5t |
| Thickness Of Tanker: | 5mm Fecal Suction Truck | Vacuum Pump: | Chinese Pump,BP,Jurop,Moro Kaiser |
| Suction Depth: | 8 Meters | Suction Distance: | DN50 Or DN100 2" Or 4” |
| Type: | Sewer/sludge/septic Suction Vacuum Sewage Suction Truck | Logo&Color: | Customized |
| High Light: | Sewer Cleaning Fecal Suction Truck 5000L,Dongfeng Vacuum Pump Fecal Suction Truck |
||
Application range:
It is used for cleaning urban sewers, sediments in pipelines
It is used for cleaning industrial drainage pipelines, walls, etc.
Product descriptions:
The sewage tank is made of high-quality steel plate of WISCO, with a wall thickness of 5.
The middle of the tank is installed wave-proof board.
The vacuum tube is equipped with stainless steel filter.
It install DN100 shock-resistant pressure gauge in the position of the sewage suction four-way valve.
The tank body is equipped with lifting and self-unloading hydraulic system.
The rear door install locking device
There are platforms on both sides of the tank, which is convenient for placing tools and suction pipes.
Main details:
Overall dimension:5995×2150×2350mm
Cabin: single row with two passengers ,it is optional for LHD&RHD
Engine:Cummins diesel engine with 125hp
Structure: oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.
Hydraulic lifting sewage tank,rear cover can open.
|
Vehicle Main Dimensions |
Cab type |
single row cabin, power steering 2 passengers, left hand drive |
|
Overall dimension(L*W*H)(mm) |
5995×2150×2350mm |
|
|
Wheelbase (mm) |
3308 |
|
|
Axle number |
2 |
|
|
Drive type |
4*2 |
|
|
Steering type |
LHD |
|
|
Max. Drive Speed (km/h) |
90 |
|
|
Gross vehicle weight (kg) |
4495 |
|
|
Chassis parameter |
Chassis brand |
Dongfeng |
|
Transmission |
Manual,6 forward and 1 reverse |
|
|
Brakes |
air brake |
|
|
Tire |
75R17.5, tubeless tire |
|
|
Engine parameter |
Engine Brand |
Cummins |
|
Fuel type |
Diesel |
|
|
Horse Power(hp) |
125hp |
|
|
Emission Standard |
Euro2 |
|
|
Superstructure Parameter and main performance |
Tank volume(m3) |
5 |
|
Sewage tank material |
5 mm good quality carbon steel |
|
|
Pump |
Imported Italy high quality vacuum pump or chinese vacuum pump |
|
|
Standard configuration |
1. Hydraulic lifting sewage tank,rear cover can open. |
|
|
Main performance |
(1) Vertical suction ≥ 7m. |

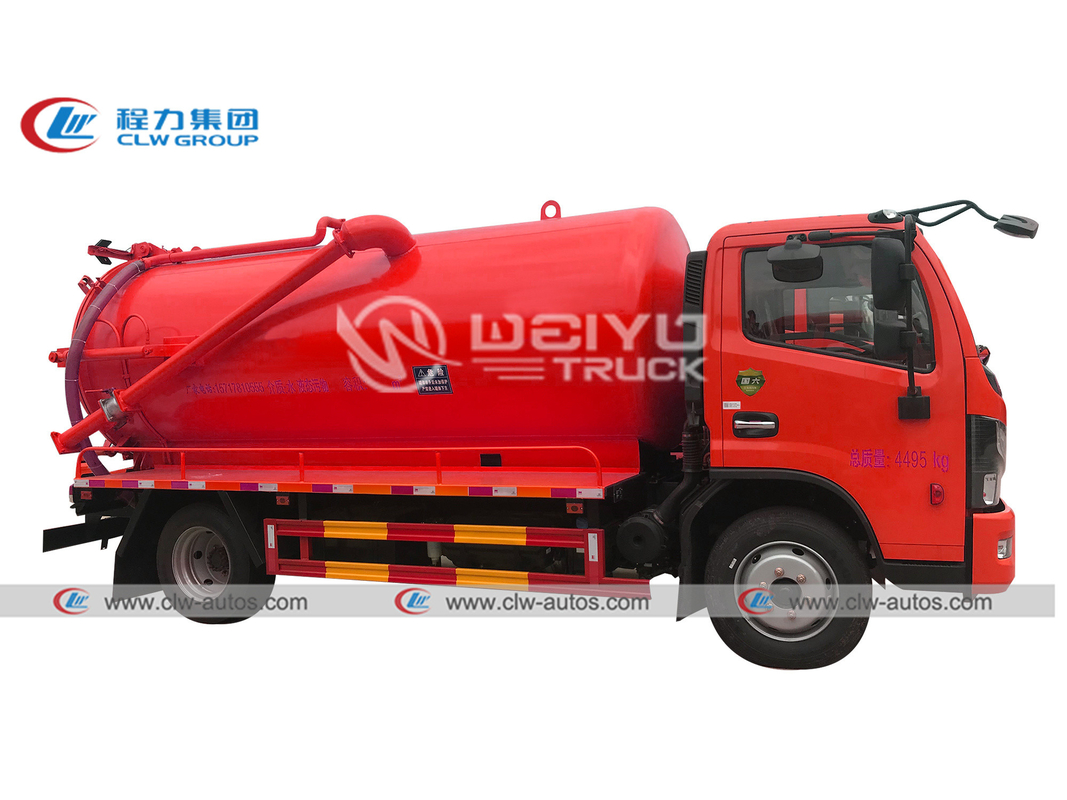

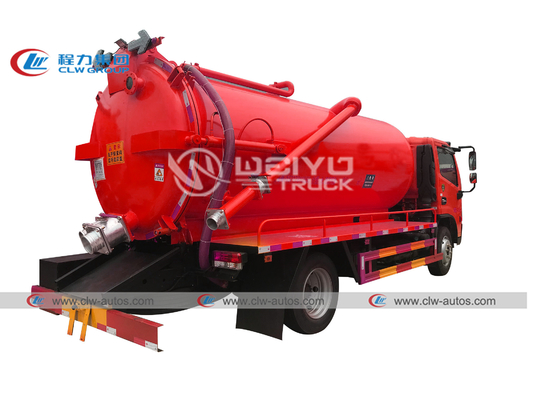

Detailed photo
