Sanitation Dongfeng Vacuum Pump Sewer Fecal Suction Truck 5000liters

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Sanitation Dongfeng Vacuum Pump Sewer Fecal Suction Truck 5000liters

Sanitation Dongfeng Vacuum Pump Sewer Fecal Suction Truck 5000liters
Sanitation Dongfeng Vacuum Pump Sewer Fecal Suction Truck 5000liters Sanitation Dongfeng Vacuum Pump Sewer Fecal Suction Truck 5000liters Sanitation Dongfeng Vacuum Pump Sewer Fecal Suction Truck 5000liters

Large Image :  Sanitation Dongfeng Vacuum Pump Sewer Fecal Suction Truck 5000liters

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC
Model Number: CLW51074EDIUE

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 1 usd/unit~22660 usd/unit
Packaging Details: Naked package shipped by bulk ship
Delivery Time: Within 30 days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Truck Brand: Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Vacuum Sewage Suction Truck Driving Model: LHD Vacuum Sewage Suction Truck
Engine: Diesel Engine Material: Q235 Carbon Steel
Tanker Size: 5000Liters 5Tonnes 5T 5m3 3000 Gallons Loading Capacity: 5tonnes 5t
Thickness Of Tanker: 5mm Fecal Suction Truck Vacuum Pump: Chinese Pump,BP,Jurop,Moro Kaiser
Suction Depth: 8 Meters Suction Distance: DN50 Or DN100 2" Or 4”
Type: Sewer/sludge/septic Suction Vacuum Sewage Suction Truck Logo&Color: Customized
High Light:

Vacuum Pump Sewer Fecal Suction Truck

,

Sanitation Dongfeng Fecal Suction Truck

,

5000liters Vacuum Suction Truck

Sanitation 5000liters Dongfeng Brand Vacuum Pump Sewer & Fecal Suction Cleaning Management Truck

Product specification:

  • Overall dimension:5995×2150×2350mm

  • Cabin: single row with two passengers ,it is optional for LHD&RHD

  • Engine: Cummins diesel engine with 125hp

  • Structure: oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.

  • Hydraulic lifting sewage tank,rear cover can open.

  • Usage: urban sewers, sediments in pipelines, industrial drainage pipelines, walls, etc.



Product descriptions:

  • The sewage tank is made of high-quality steel plate of WISCO, with a wall thickness of 5.

  • The middle of the tank is installed wave-proof board.

  • The vacuum tube is equipped with stainless steel filter.

  • It install DN100 shock-resistant pressure gauge in the position of the sewage suction four-way valve.

  • The tank body is equipped with lifting and self-unloading hydraulic system.

  • The rear door install locking device

  • There are platforms on both sides of the tank, which is convenient for placing tools and suction pipes.

Vehicle Main Dimensions

Cab type

single row cabin, power steering

2 passengers, left hand drive

Overall dimension(L*W*H)(mm)

5995×2150×2350mm

Wheelbase (mm)

3308

Axle number

2

Drive type

4*2

Steering type

LHD

Max. Drive Speed (km/h)

90

Gross vehicle weight (kg)

4495

Chassis parameter

Chassis brand

Dongfeng

Transmission

Manual,6 forward and 1 reverse

Brakes

air brake

Tire

7.50R16

Engine parameter

Engine Brand

Cummins

Fuel type

Diesel

Horse Power(hp)

125hp

Emission Standard

Euro2

Superstructure Parameter and main performance

Tank volume(m3)

5

Sewage tank material

5 mm good quality carbon steel

Pump

Imported Italy high quality vacuum pump or chinese vacuum pump

Standard configuration

1. Hydraulic lifting sewage tank,rear cover can open.
2. Equipped with PTO.
3. Equipped with vacuum pump.
4. Sewage suction pipe 1pcs, length 7m.
5. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.

Main performance

(1) Vertical suction ≥ 7m.
(2) Pumping speed : 45L/s.
(3) Intake and exhaust diameter: 50mm.
(4) Full tank pumping time ≤ 5min.
(5) Sewage tank emptying time ≤ 4min.

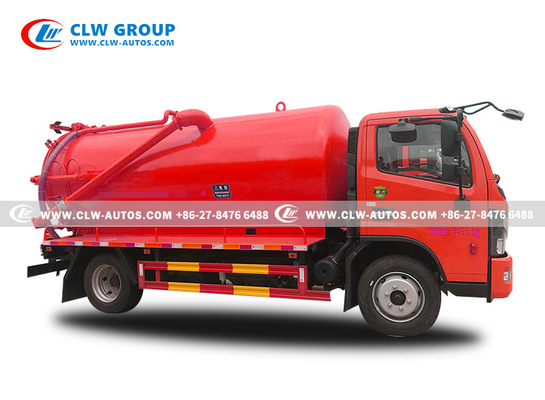

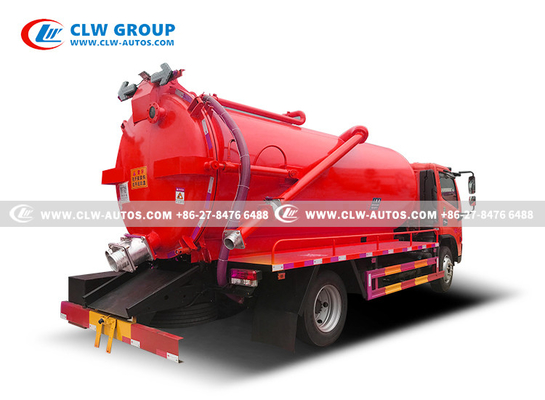

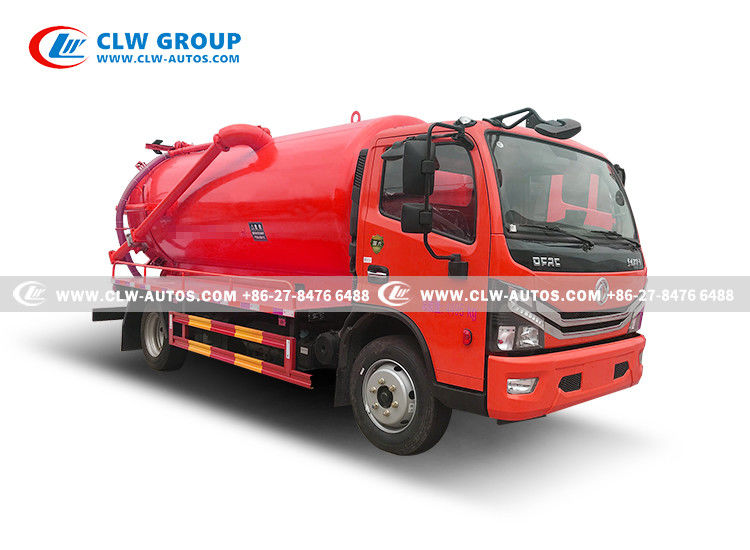

Detailed photos



Sanitation Dongfeng Vacuum Pump Sewer Fecal Suction Truck 5000liters 0


Successful cases



Sanitation Dongfeng Vacuum Pump Sewer Fecal Suction Truck 5000liters 1



Our advantages:



· Certificate: ASM, ISO, BV, SGS, CCC, GCC etc.

· 12 independents workshops.

· 1000 sets of equipment, 25 assemble lines.

· 300 senior engineers and technicians. About 8000 workers.

· 800kinds of LPG, trucks and semi-trailers.

· 20 years wholesale experience

· Turnover 250 million and Export 20million annually

· Turnover 2 billion trucks and semi-trailers annually.

· LPG/Truck Sold to 90 countries

· Cooperates with DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
