| Material: | Q345R,Q370R,Q420R | Standard: | GB150-2011,GB/T19905-2005,ASME VIII Section II |
|---|---|---|---|
| Tank Capacity: | 25MT,25Tons,25t | Tank Size: | 50000liters, 50cbm, 50m3, 5000L |
| Axle Brand: | BPW,FUWA,YORK,HJ | Thickness: | 14mm For Tank Shell And 16mm For End Plate |
| Design Pressure: | 1.61mpa,16.1bar | Overall Size: | 12700*2480*38000 Mm |
| Tire: | 12R22.5,315R22.5,295R22.5 | ||
| High Light: | LPG Semi Trailer 25t,25mt LPG Semi Trailer |
||
Product advantages:
* ASME standard available
* 100% new condition by manufacturer direct sale
* 100% quality guaranteed
Product Description:
1) The LPG tanker semi trailer material uses Q345R steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.
2) LPG tanker semi trailer are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.
3) LPG Transport Tanker Trailer is used for transporting liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
4) Manufacturing standards of LPG Transport Tanker Trailer : GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
5) Optional accessories of LPG Transport Tanker Trailer:ROCHESTER level gauge,flow meter,sunshelter,lpg pump,lpg dispenser machine,filling hose
Features:
1. Axle: 3 pieces, BPW 13ton. FUWA or L1 brand is optional.
2. Suspension: German design heavy mechanical suspension or air bag.
3. LPG tanker: Heavy duty loading capacity, 40500 liters, 49600 liters, 56000L, 59600L.
4. Safety control system:Safety Valve, Pressure Meter, Cut-off Valve and etc.
Product parameters:
| Dimension | |
| Tare Weight | 15300 KG |
| Pay Load | 20832 KG |
| Overall size | 12740*2480*3800mm |
| Photo for reference, finial product can be made according to exact requirements | |
| Tank | |
| Transporting Media | Dimethylmethane, Liquid Ammonia, Liquid SO2, Propane, Butane |
| Shape | Round Shape |
| Total Volume ( m3 ) | 49.6CBM |
| Tanker Body Steel Sheet | Q235A/14mm |
| End plate | Q235A14mm, by punching |
| Parts for Tank | |
| Manhole cover | 3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve |
| Unloading valve | 2-3 sets of DN80 fixed at button of Tank |
| Pipeline at button of tank | 4"seamless steel tube/Q235 |
| Labeling system | Oil Type Indication |
| Anti-static electricity system | pulling, wire carrier, sheet copper (6 sheet-standard layout) |
| Other Parts | |
| Ladder | 1 unit at front of Tank |
| Guard on top of Tank | Zinc galvanized -guard-net |
| Oil hose box | Circular single hole tube, 1 unit on each side |
| Oil hose | 2 unit, 3" x 6m size in black rubber |
| Side guard | cross bar-structure |
| Rear button guard | Fixed type |
| Work tank deck | Box type |
| Fire extinguisher box | 2 unit at the back of each side |
| Mud guard | Steel structure in trapezoid form |
| Lights and wire | 24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp |
| Chassis | |
| Main Beams | Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes |
| Axle | 3 axles |
| Optional BPW brand FUWA brand | |
| Landing Gear | JOST Two-speed, manual operating, heavy duty landing gear |
| King Pin | JOST 2"standard bolt-in king pin |
| Suspension | German design mechanical suspension |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
| Wheel rim | 8.25R22.5 wheel rim |
| Tire | 11R22.5 tubeless tire with one spare tire |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |

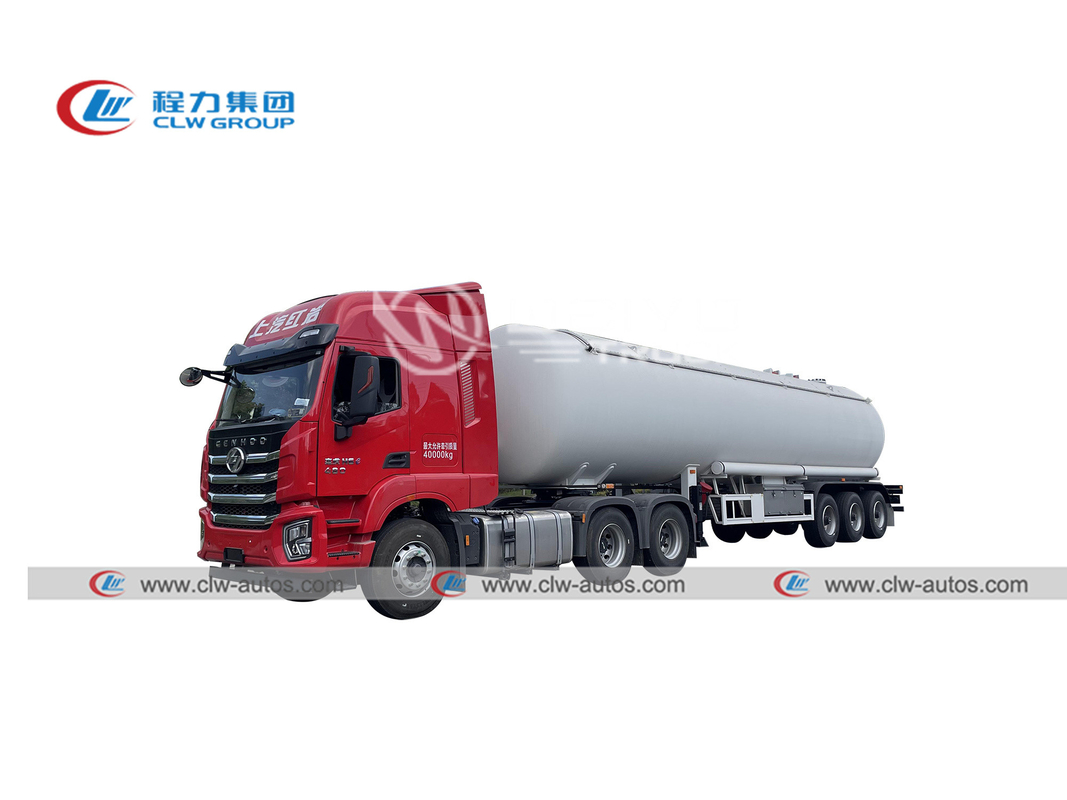

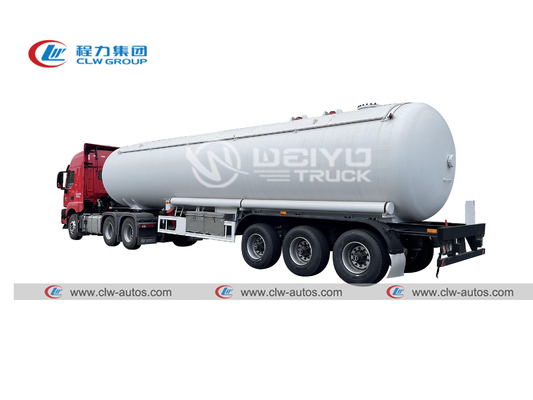

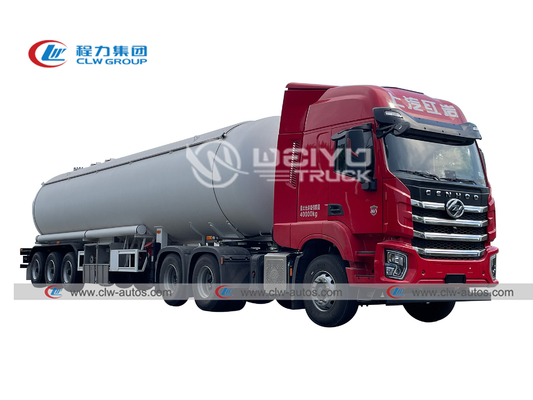

Detailed photos:
