HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsVacuum Suction Truck

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure
Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure

Large Image :  Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC
Model Number: CLW5167SQXWC

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 12520 usd/unit~22660 usd/unit
Packaging Details: Naked package shipped by bulk ship
Delivery Time: Within 30 days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Truck Brand: Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Sewage Jetting Truck Driving Model: LHD,RHD Sewage Jetting Truck
Engine: Diesel Engine Sewage Jetting Truck Material: Q235 Carbon Steel Sewage Jetting Truck
Tanker Size: 10000Liters 10Tons 10m3 3000 Gallons Sewage Jetting Truck Loading Capacity: 5tons 6tons 8tons 10tons Sewage Jetting Truck
Thickness Of Tanker: 5mm Or 6mm Sewage Jetting Truck Vacuum Pump: Chinese Pump,BP,Jurop,Moro Kaiser Sewage Jetting Truck
Suction Depth: 8 Meters Sewage Jetting Truck Suction Distance: DN50 Or DN100 2" Or 4”Sewage Jetting Truck
Medium: Sewer/sludge/septic Suction Sewage Jetting Truck
High Light:

18CBM Vacuum Sewer Truck

,

Q235 Sanitaion Vacuum Sewer Truck

Factory price Shacman 290hp Vacuum high pressure Sewage Suction Truck

Sanitaion 18CBM Vacuum Sewer Waste Water Cleaning Truck High Pressure Sewage Suction Truck



Sewage System Advantage:

  • -Large volume sewage tank 7000L with High Pressure Design;
  • -3000L Wate with Side Installed Design Low Gravity Center;
  • -Famous Italian Jurop &BP, American Moro Vacuum Pump in 2400L/Min;
  • -High Pressure Chinese Brand Water Pump 300L/min, 18Bar Pressure;
  • -Hydraulic Arm for easier sewage hose handling;
  • -Remote control system.
Tanker material:

-Optional for carbon steel or stainless steel 304;
-Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm



Hydraulic locking device
Openable back cover for unloading

60m long high pressure pipe

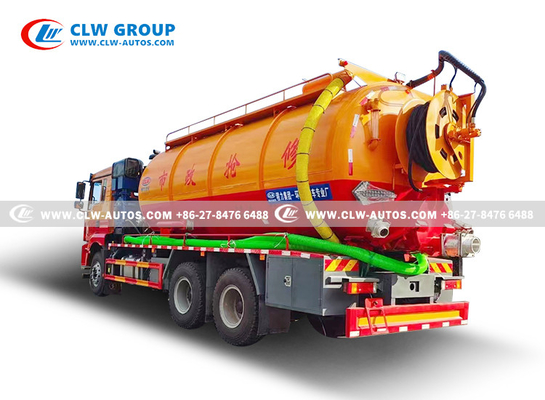

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure 0



3-axle chassis
Large suction tank

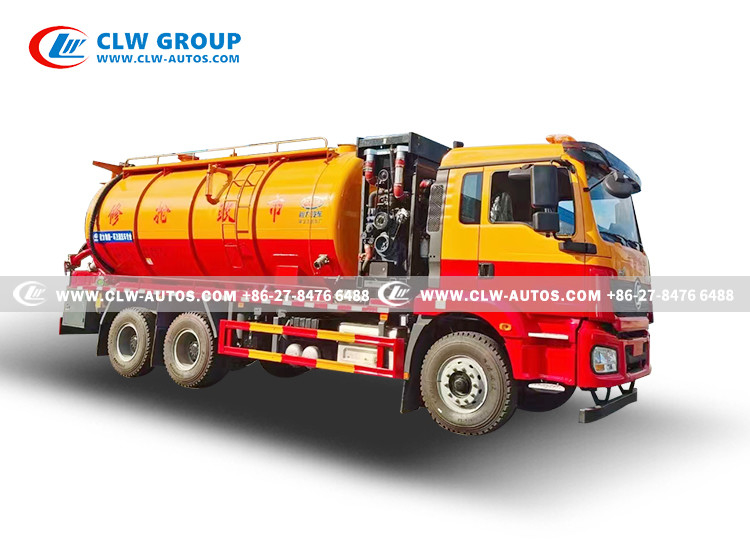

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure 1



Main function: Cleaning city sewer, pipeline dredge, suction sewage

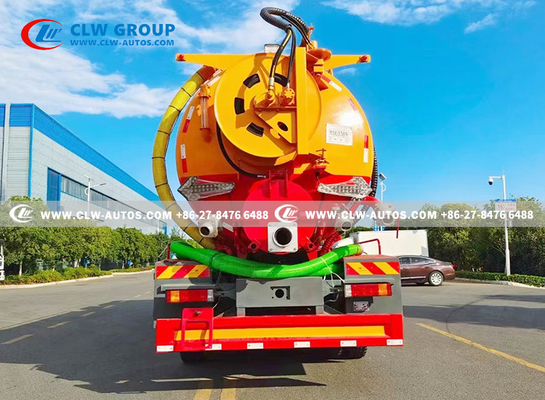

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure 2



Vacuum Sewage Suction truck is optional for another design with water tanker and high pressure flushing and washing device for high pressure sewer cleaning service as follows



Specification
Vehicle Main Dimensions Cab type Single row half cab
Overall dimension(L*W*H)(mm) 10450×2500×3800
Wheelbase (mm) 4350+1350
Axle number 2
Drive type 6*4
Steering type LHD/RHD
Max. Drive Speed (km/h) 95
Curb weight (kg) 13000
Chassis parameter Chassis brand Shacman
Transmission Manual,5 forward and 1 reverse
Brakes air brake
Tire 295/80R22.5
Engine parameter Engine Brand Cummins
Fuel type Diesel
Horse Power(hp) 290 hp
Emission Standard Euro III/IV/V
Superstructure Parameter and main performance Cleaning Tank volume(m3) 2
Cleaning Tank material 5 mm good quality carbon steel; round shape
Sewage tank volume(m3) 3.5
Sewage tank material 5 mm good quality carbon steel
Pump Imported Italy high quality vacuum pump or chinese vacuum pump
Standard configuration 60m long high pressure pipe, 10 unit high pressure sprayers,inspect window, one gravity mouth, cleaning apparatus,5m long suction pipe, etc
Main performance Suction time ≤ 5min,
effective suction range ≥ 8m
Main function Cleaning city sewer, pipeline dredge, suction sewage,etc
Optional watering



Structure of a dongfeng vacuum sewage suction truck

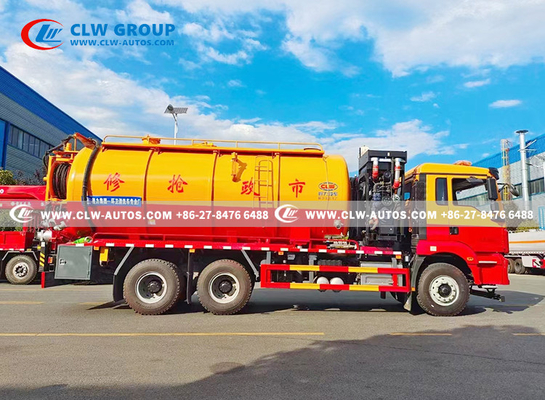

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure 3

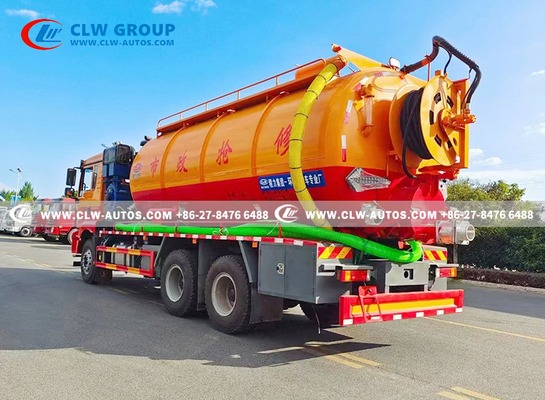

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure 4



Why do you choose us for vacuum sewage suction truck?



1.well experienced truck production company to offer high quality and competitive-price vacuum sewage suction truck to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;

3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price  whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available





Related product

Right hand drive howo 290hp 18,000liters septic cleaning truck

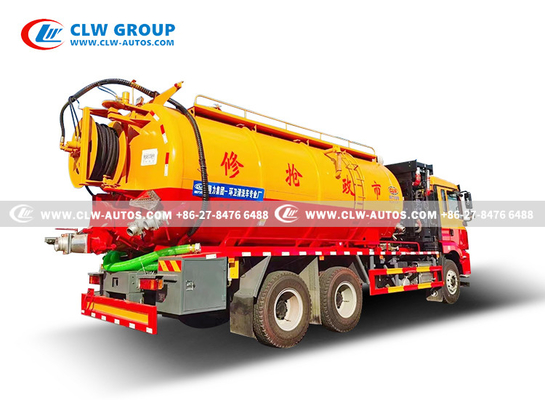

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure 5
