Product Details:
Payment & Shipping Terms:
|
| Brand: | ISUZU,FOTON,JMC,HOWO,Dongfeng,JAC,SHACMAN,CAMC | Passenger: | 2~3 Person |
|---|---|---|---|
| Engine: | Dongfeng Brand | Front Leg: | H Shape |
| Rear Leg: | H Type | Height: | 32M, 32 Meters |
| Bucket Capacity: | 200kg | Boom Type: | Five Section Telescopic Arm |
| Delivery Time: | 30 Days | Warranty: | 1 Year |
| Logo: | As Per Customer's Request | User Manual: | Yes |
| Operation Video: | Yes | Truck Purpose: | Street Light Repair,cherry Picker,cleaning/setting Signboard, Landscaping Trees |
| High Light: | 32M Telescopic Boom Hydraulic Platform Truck,Dongfeng Bucket Hydraulic Platform Truck |
||
Application range:
1. maintenance of traffic lights, street lights,
2. landscaping trees
3. cleaning/setting signboard,
5. cherry picking and other high aerial works.
Product Descriptions:
1. Dongfeng chassis with 190HP diesel engine
2. Working height is up to 32 meters
3. Bucket dimension is 1080X610X1100mm
4. Working platform can 360 degree rotation.
5. Double H outriggers can adapt different road condition and increasing the stability.
Product advantages:
1. Double H outriggers with good stability which can adapt to various working conditions.
2. It is equipped with hydraulic and electrical components: proportional valve, balance valve, controller which are all imported.
3. The outrigger operation box is equipped with lights, which is convenient for working at night,
4. It install to spirit level to ensure the truck's safety.
5. The working platform adopts 360 degree rotation,
6. The hanging basket is made of high-strength aluminum alloy, which is flexible during working.
7. It use computer control,and equip with dangerous work alarm in order to excellent safety performance.
8. Its expansion and contraction at the same time that can improve working efficiency and working range.
Product parameters:
| Parameter | Overall dimension (Length*width*high) | (mm) | 8790*2500x28400 |
| Total Mass | (kg) | 16000 | |
| Kerb Mass | (kg) | 5000 | |
| Wheel base | (mm) | 5000 | |
| Approach/rear angle | (°) | 20/12 | |
| Max speed | (km/h) | 90 | |
| Fuel type | diesel | ||
| Engine | Displacement standard | EURO 3 | |
| Chassis | Chassis type | Dongfeng | |
| Drive system | 4x2 | ||
| Tire type | 10.00R20 | ||
| Number of tire | 6 | ||
| passengers | 3 | ||
| Cabin | one and half row cabin | ||
| Special parameter | Working platform rating loading | (kg) | 200 |
| Max operation height | (m) | 32 | |
| Max working radius | (m) | 14.8 | |
| Rotation speed | (r/min) | 0.15~0.20m/s | |
| Max hoisting height | (m) | 8 | |
| Rated hoisting capacity | (kg) | 1000-2000 | |
| Max rotation angle | (°) | 360 |

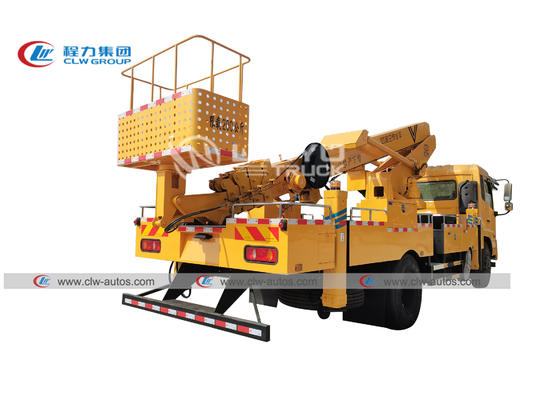

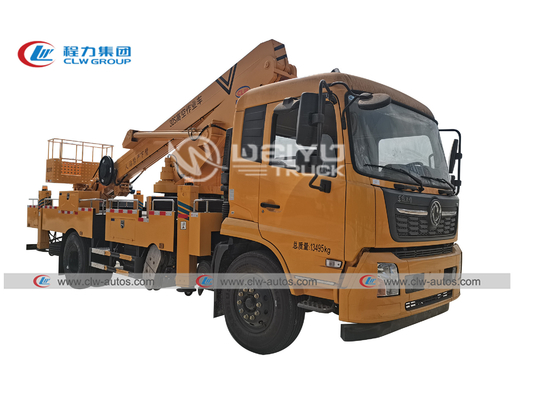

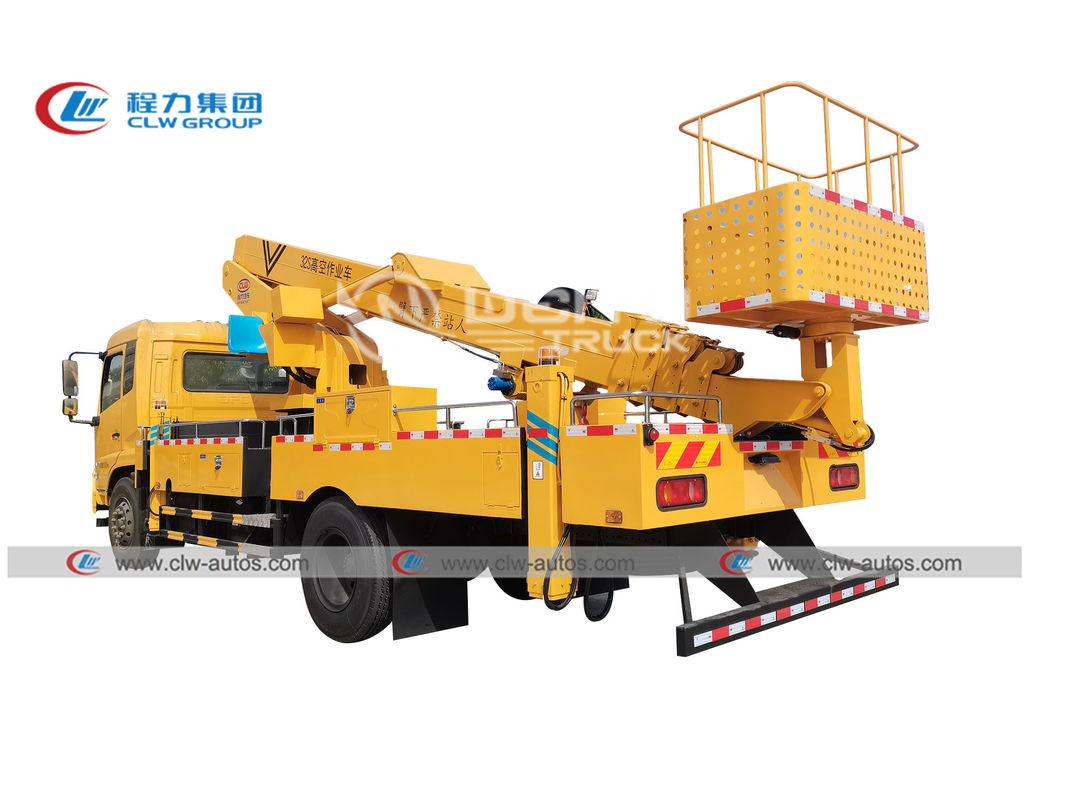

Reference photos
Aerial working platform Truck Working Show
Our advantages:
